Doosan Generator 200kva 160kw Diesel Generator Set By Doosan Engine P086TI

    Buy cheap Doosan Generator 200kva 160kw Diesel Generator Set By Doosan Engine P086TI from wholesalers

    Buy cheap Doosan Generator 200kva 160kw Diesel Generator Set By Doosan Engine P086TI from wholesalers
    • Buy cheap Doosan Generator 200kva 160kw Diesel Generator Set By Doosan Engine P086TI from wholesalers
    • Buy cheap Doosan Generator 200kva 160kw Diesel Generator Set By Doosan Engine P086TI from wholesalers

    Doosan Generator 200kva 160kw Diesel Generator Set By Doosan Engine P086TI

    Ask Lasest Price
    Brand Name : Ai Power
    Model Number : A200
    Certification : CE, ISO9001,,SONCAP
    Price : USD15000/set
    Payment Terms : L/C, T/T, Western Union,
    Supply Ability : 100units per month
    Delivery Time : 25days
    • Product Details
    • Company Profile

    Doosan Generator 200kva 160kw Diesel Generator Set By Doosan Engine P086TI

    Product Description
    Doosan Generator 200kva 160kw Diesel Generator Set By Doosan Engine P086TI

    Doosan Generator 200kva 160kw Diesel Generator Set By Doosan Engine P086TI

    Engine
    GENERAL ENGINE DATA
    Engine manufacture
    Doosan Infracore Co., Ltd
    Engine brand
    Doosan
    Engine model
    P086TI
    Engine speed (rpm)
    1500
    Engine output(kWm)
    Standby Power
    199
    Prime Power
    177
    Engine Type
    4-Cycle, In-line, 6-Cylinder, water cooled, Turbo charged & intercooled
    Bore x Stroke (mm)
    111 x 139
    Displacment (litre)
    8.071
    Compression Ratio
    16.4:1
    FUEL SYSTEM
    Type
    Bosch type in-line pump with integrated, electromagnetic actuator
    Governor
    Electric type ( all speed control )
    Fuel Consumption (litre/hour)
    25% prime load
    11.3
    50% prime load
    21.1
    75% prime load
    31.7
    100% prime load
    43.1
    EXHAUST SYSTEM
    Maximum Back Pressure (kPa)
    5.9
    Exhaust gas temp. after turbo. (prime/standby power) (°C)
    580
    Exhaust Gas Flow(prime/standby power) (m3/min)
    33.9
    AIR INDUCTION SYSTEM
    Maximum Intake Air Restriction (kPa)
    with Clean Filter Element
    2.16
    with Dirty Filter Element
    6.23
    Intake Air Flow(prime/standby power) (m3/min)
    15.71/16.95
    COOLING SYSTEM
    Cooling method
    Fresh water forced circulation
    Coolant capacity
    Engine Only : Approx. 14 lit., With Radiator : Approx 44 lit.(standard)
    Water Temperature
    Maximum for standby and Prime (°C)
    103
    Before start of full load (°C)
    40
    Thermostat Type and Range
    Wax – pellet type, Opening temp. 71°C , Full open temp. 85°C
    LUBRICATION SYSTEM
    Lub. Method
    Fully forced pressure feed type
    Oil pan capacity
    Max. 15.5 liters , Min. 12 liters
    Lub oil pressure (kPa)
    Idle Speed Min.
    100
    Governed Speed Min.
    250
    Maximum Oil Temperature (°C)
    120
    ELECTRICAL SYSTE
    Battery Charging Alternator
    28.5V x 45A alternator
    Starting motor
    24V x 6.0 kW
    Battery Voltage
    24V
    Battery Capacity
    100 Ah (recommended)
    ALTERNATOR
    Alternator manufacturer
    Xiamen Ai Power Technology Co., Ltd.
    Alternator brand
    AI POWER
    Alternator model
    AI274G
    Control system
    SELF EXCITED
    A.V.R.
    Included
    Voltage regulation
    ±1.0%
    Insulation system
    Class H
    Protection
    IP23
    Rated power factor
    0.8
    Winding pitch
    Two thirds
    Winding leads
    12
    Frequency (Hz)
    50
    Voltage (V)
    400
    Phase
    3
    Output ratings (kVA/kW)
    ----------------Cont.H-40°C
    200/160
    ----------------Standby-27°C
    220/176
    THF
    <5%
    TIF
    <50
    Max. overspeed (Rev/Min)
    2250
    Bearing
    Single
    Silent canopy
    1. Air inlet cooling system
    2. Stainless door lock
    3. Fuel cap lock
    4. Tow holes
    5. engine
    6. radiator
    7. insulation and soundproof materials
    8. maintenance door
    Open type
    1.Cylinder
    2.Water tank
    3.Base frame
    4.Damping spring
    7.Control system
    Detailed Images
    * Famous brand engine couple with high quality alternator
    ● Large size cooling radiator
    ● Heavy duty steel base frame
    ● Strong anti-vibration mat
    ● Standard free maintenance battery
    ● AC alternator for battery charger
    ● Heavy-duty air filter, oil filter, water filter
    ● Famous brand controller and breaker
    ● Optional fuel tank, silent canopy, ATS, synchronization panels.

    Doosan Generator 200kva 160kw Diesel Generator Set By Doosan Engine P086TI

    More than 2mm thick steel to make the canopy.
    * High quality paint materials and strict powder paint processing.
    * large-scale impedance combined type silencer effectively reducing noise of the generator.
    * Stainless steel door locks and hinges and 180° revolvable and disassemble door for easy maintenance.
    * High quality soundproof and insulation materials could efficiently reduce noise.
    * Transparent viewing window make the control panel clear at a glance.
    * Lifting ear is mounted in the base frame for easy pull.

    Doosan Generator 200kva 160kw Diesel Generator Set By Doosan Engine P086TI

    Size Information
    Size Chart of This Design
    Generator set model
    Type
    L*W*H(mm)
    Weight(kg)
    A200
    Silent
    3600*1200*1800
    2500
    Packing&Shipping
    Doosan Generator 200kva 160kw Diesel Generator Set By Doosan Engine P086TIDoosan Generator 200kva 160kw Diesel Generator Set By Doosan Engine P086TI

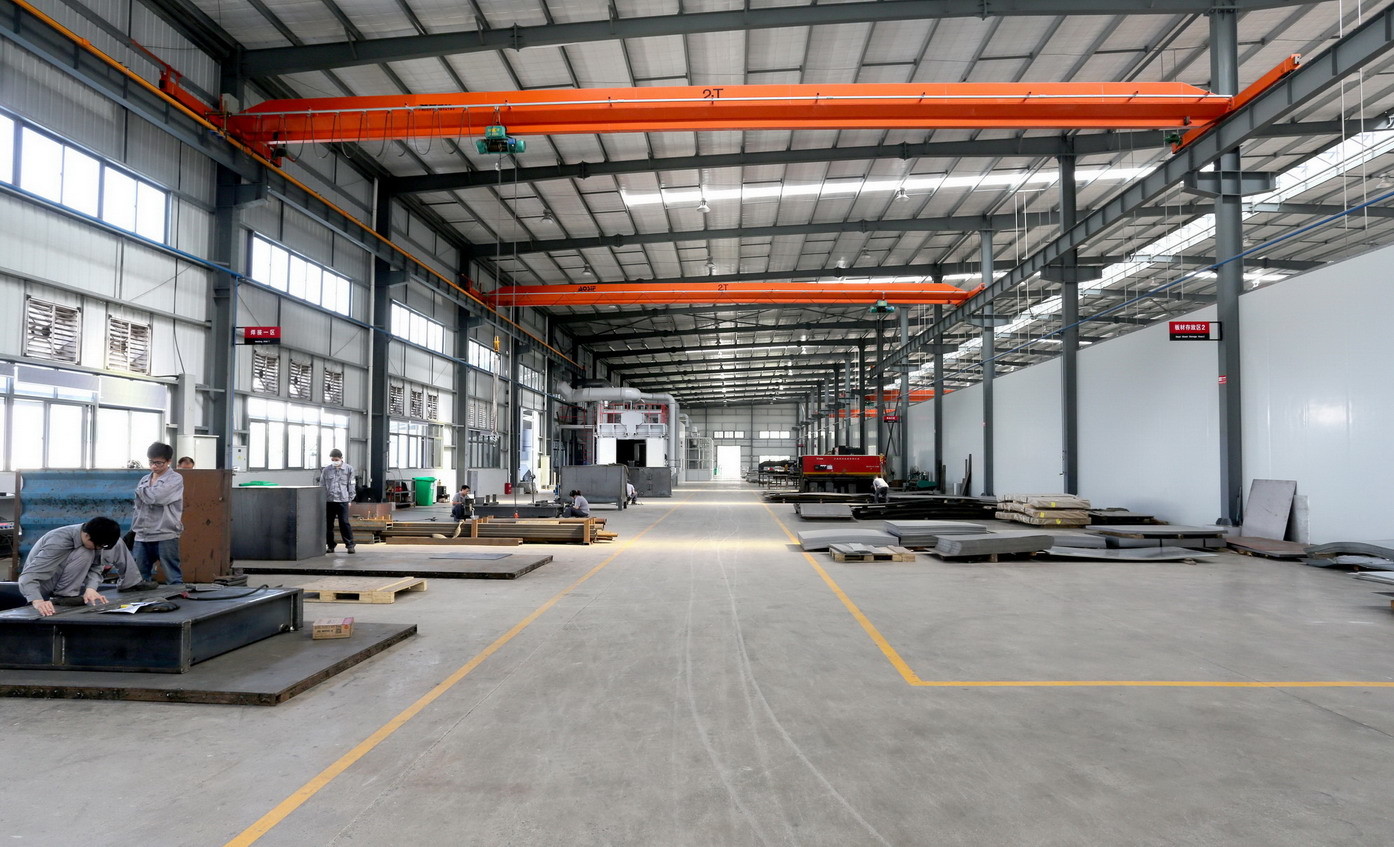

    Company Introduction
    Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province, It is dedicated to becoming a comprehensive company for intelligent power and green energy supply. Our company aim to create a better life for the world by supplying better power solutions. Continually improving products’ quality, friendly-use and durability is our long-term mission. We will make all the efforts to walk a long way to reach customers’ greatest satisfaction.
    Our logo Looks like the character of “Ai”, which is short for Artificial Intelligence. It stands for Ai power aims to develop
    intelligent power with superior technology, to provide customized products as per requirements of different customers. Our Logo adopts green color and with the green leaves. It stands for green energy. Ai power aims to provide global users with efficient and clean energy, and to be environmental-friendly
    Ai power is dedicated to becoming a comprehensive company for intelligent power and green energy supply.
    Ai Power products adopts internationally and domestically reputed high-quality engines and alternators including USA famous engine, UK famous engine, MTU from Germany, Doosan from South Korea, Stamford, LeroySomer, and Marathon for our industrial diesel generator sets, marine generator, movable generator, lighting towers, generator spare parts and other high value-added mechanical and electrical products. Those products are featured by personalization, intelligence, environmental protection and high quality. They are widely used in buildings, hospitals, banks, mine, ports, construction, data center, power station and high voltage projects.

    Doosan Generator 200kva 160kw Diesel Generator Set By Doosan Engine P086TI

    FAQ
    1.WHAT IS YOUR WARRANTY PERIOD?
    A: It’s 1 year or 1000 running hours whichever comes first. But based on some special project, we can extend our warranty period.
    2. CAN YOU ACCEPT OEM?
    A. Yes, we can accept OEM.
    3. WHAT’S YOUR PAYMENT TERM?
    A: We can accept T/T 30% in advance and the balance 70% shall be paid before shipment or LC at sight.
