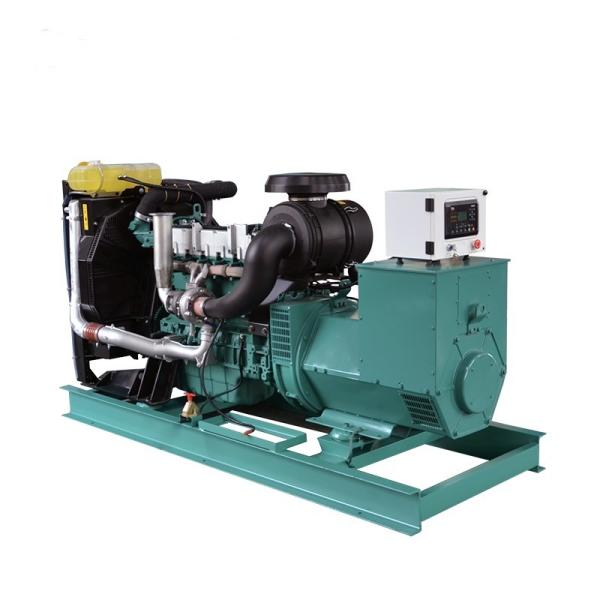

EPA Tier 4 Volvo Penta Electric Generator Suppliers TAD1342GE 280kw
350kva Prime Power Of Generator
The TAD1342GE is a powerful, reliable and economical Generating Set
Diesel Engine built on the dependable Volvo inline six concept.
Durability & low noise Designed for easy, fast and economical
installation. Field tested to ensure highest standard of durability
and long life. Well-balanced to produce smooth and vibration-free
op er a tion with low noise level. To maintain a controlled working
temper a ture in cylinders and combustion cham bers, the engine is
equipped with piston cooling. The engine is also fi tted with
replaceable cylinder liners and valve seats/guides to ensure
maximum du ra bili ty and service life of the engine.
Low exhaust & noise emission The state of the art, high-tech
injection and highly effi cient charge air system with low internal
loss es contributes to excellent com bus tion and low fuel
consumption. The TAD1342GE is EU Stage 2 emission certifi ed. An
electronically controlled viscous fan drive is available giving
substantially lower noise and fuel consumption.
Exhaust emissions
The engine complies with EU stage 2 emission legislation according
to the Non Road Directive EU 97/68/EEC. The engine also complies
with TA-luft -50% exhaust emission regulations.
TWD1645GE is a reliable, powerful and compact in-line 6 cylinder
diesel engine. It´s designed to power a wide range of stand-by and
prime power generator sets.This 16 liter diesel engine utilizes
dual-stage turbochargers and heavy-duty steel pistons to provide
excellent power
density.It features a proven combustion technology with
highpressure unit injectors, resulting in high fuel efficiency and
low exhaust emission levels.
The engine also features a compact and low weight design that is
well-balanced, providing smooth operation with low noise and
vibration. It´s designed for easily accessible service points. A
wide range of options is available, including a heavy-duty frame,
cooling package and air-filter that will suit a variety of
installations.
| Diesel generator Details |
| Model | AI-350GF |
| Power | 350kw/437.5kva |
| Frequency | 50Hz/60Hz |
| Voltage | 380/220v(voltage can be customized) |
| Optional Type | Open/soundproof/trailer |
| Size of Open type | 3100*1150*1600mm |
| Weight of Open type | 3050kg |
| |
| With Diesel Engine |
| Brand&model | With genuine Volvo engine TAD1344GE |
| Standby Power | 389kw |
| Cylinders | 6 in line arrangement |
| Bore*Stroke | 131*158mm |
| Displacement | 12.78L |
| Lubrication Oil Capacity | 35L |
| Fuel Consumption at 100% Load | 199g/kw.h |
| Speed Governor | ECU |
| |
| With Alternator |
| Optional Brands | Stamford/Leroy Somer/Mecc Alte/Marathon |
| Exciter type | Single bearing,brushless,Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| |
| With Controller |
| Optional brands | Deepsea/ComAp/Smartgen |
Power standards The engine performance corresponds to ISO 3046, BS
5514 and DIN 6271. The technical data applies to an engine without
cooling fan and operating on a fuel with calorific value of 42.7 MJ
/ kg (18360 BTU/lb) and a density of 0.84 kg/liter (7.01 lb/US
gal), also where this involves a deviation from the standards.
Power output guaranteed within 0 to +2% att rated ambient
conditions at delivery. Ratings are based on ISO 8528. Engine speed
governing in accordance with ISO 8528-5.
