250 Kva Generator 200kw Diesel Electric Generator Price 250 Kva
Generator With Cummins
Cummins Power Generation has looked beyond today’s challenges,
helping our customers meet their future needs by developing the
next generation of power. It takes a globally integrated culture of
knowledge, know-how and innovation to ensure this next generation
of power is Always On. Our comprehensive portfolio delivers
centralized as well as distributed energy solutions for your unique
power need—commercial, industrial, marine, mining, recreational,
emergency and residential.
| Rated power | Engine | Alternator | Control panel |
| 20kw~1300kw | Cummins | Stamford
Leroy somer
Marathon
Mecc alte
Chinese alternators | Deepsea
ComAp
Harsen
Smartgen |
| 8kw~1600kw | Perkins |
| 68kw~504kw | Volvo |
| 20kw~500kw | Deutz |
| 220kw-2400kw | MTU |
| 280kw-800kw | MAN |
| 600kw-1800kw | Mitsubishi |
| 60kva-660kva | Doosan |
| 2kw~2500kw | Chinese engine |
Cummins Diesel Engine Specifications:
| Engine manufacturer | Dongfeng Cummins Engine Co. Ltd |
| Engine brand | Cummins |
| Engine model | 6BTAA5.9-G2 |
| Engine speed (rpm) | 1500 |
| Engine output(kWm) | |
| | Standby Power | 130 |
| | Prime Power | 120 |
| | Continuous Power | 96 |
| No. of Cylinder | 6 |
| Aspiration | Turbocharged and Charge Air Cooled |
| Borer * Stroke (mm) | 102 * 120 |
| Displacment (litre) | 5.9 |
| Compression Ratio | 17.3:1 |
| Engine Idle Speed (rpm) | 750-850 |
Stamford Alternator Specification
| Alternator manufacturer | Cummins Generator Technologies(China) Co. Ltd |
| Alternator brand | Stamford |
| Alternator model | UC274ES |
| Control system | SELF EXCITED |
| A.V.R. | Included |
| Voltage regulation | ±1.0% |
| Insulation system | Class H |
| Protection | IP23 |
| Rated power factor | 0.8 |
| Winding pitch | Two thirds |
| Winding leads | 12 |
| Frequency (Hz) | 50 |
| Voltage (V) | 400 |
| Phase | 3 |
| Output ratings (kVA/kW) | |
| ----------------Cont.H-40°C | 125/100 |
| ----------------Standby-27°C | 138/110 |
| THF | <2% |
| TIF | <50 |
| Max. overspeed (Rev/Min) | 2250 |
| Bearing | Single |

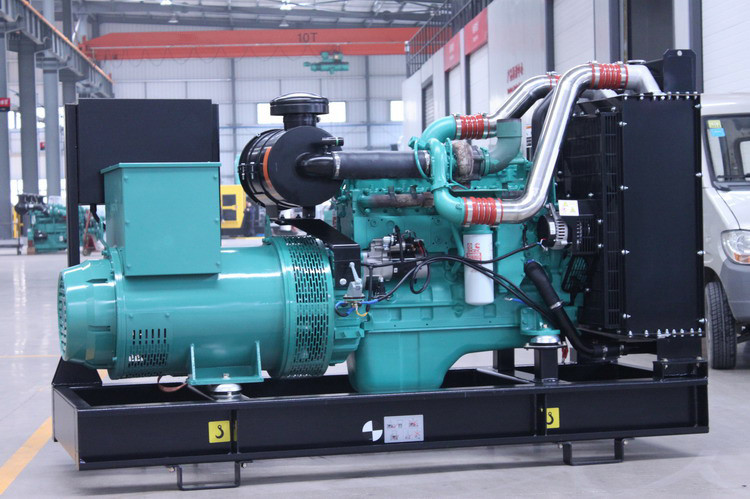

Product Details
Silent Generator Type.
● Famous brand engine couple with high quality alternator
● Large size cooling radiator
● Heavy duty steel base frame
● Strong anti-vibration mat
● Standard free maintenance battery
● AC alternator for battery charger
● Heavy-duty air filter, oil filter, water filter
● Famous brand controller and breaker
● Optional fuel tank, silent canopy, ATS, synchronization panels.
1. What is your warranty period?
A: It’s 1 year or 1000 running hours whichever comes first. But
based on some special project, we can extend our warranty period.
2. Can you accept OEM?
A. Yes, we can accept OEM.
3. What’s your payment term?
A: We can accept T/T 30% in advance and the balance 70% shall be
paid before shipment or LC at sight.
4. What’s your delivery time?
A: Our normal delivery time is 2 to 4 weeks. But if your order is
some special engine and alternator, the delivery time will be
longer.
