Kubota-V3300-T V2203 Diesel Generator Power Genset 24kw 30kVA
Original Made in Japan
Specifications and Product Details:

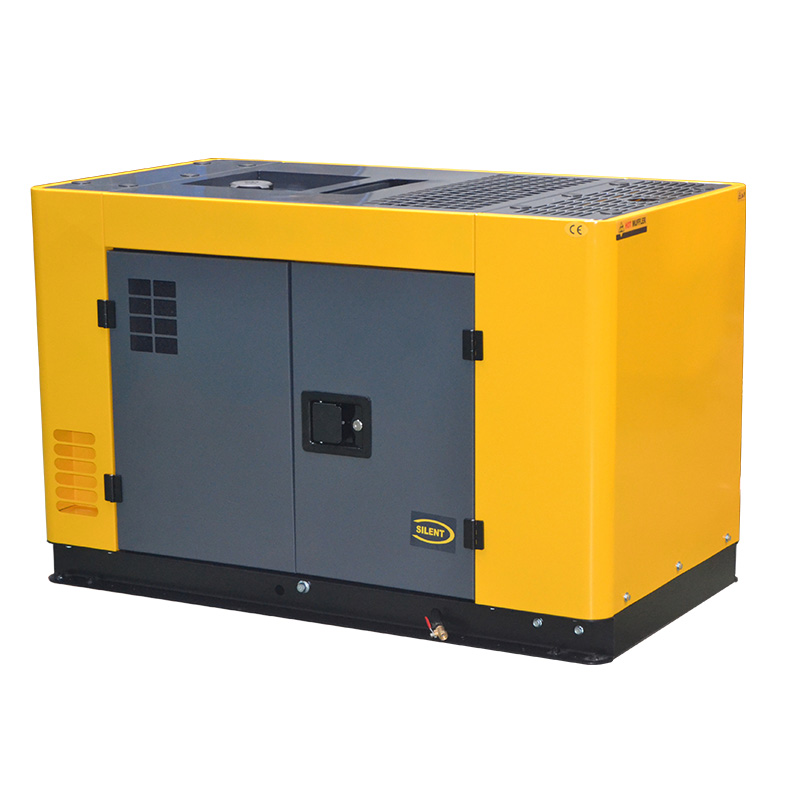

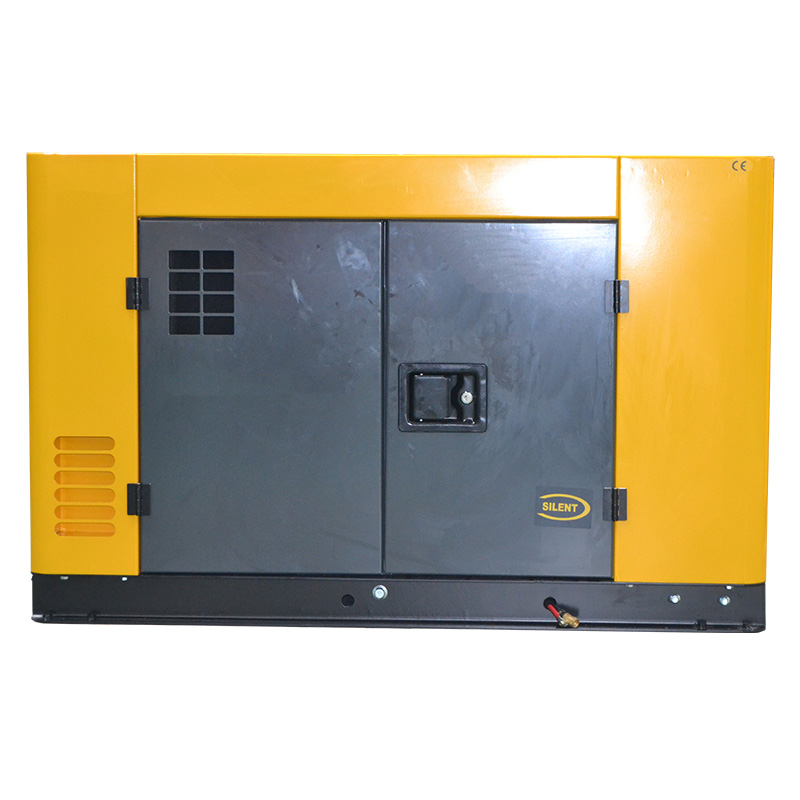

25KW/31KVA Kubota Silent Diesel Power Generator Set
3-PH, 50Hz@1500RPM, 400/230V(Also Can Be Made According To
Customers’ Special Requirements)
1.Composed of Kubota diesel engine and Stamford or Leroy Somer
alternator
2. 12V DC start motor and storage battery
3.Brushless, Self-excited, IP23, insulation class H alternator
4. 40°C radiator as standard, 50°C is optional
5.Key start panel control system as standard, digital auto-start
panel is optional
6. 8-hour operation base tank
7.Optional open type or silent type
8.All generator sets are gone through rigorous testingbefore being
released to the market place, including 50% load, 75% load, 100%
load, 110% load and all protection function (overspeed stop, high
water temperature, low oil pressure, battery charging fail,
emergency stop)
Kubota is the world’s leading manufacturer of compact diesel
engines, providing you with a single source for a multitude of
power needs.
Kubota BG Series engine line-up is ideal for all of your generator
applications such as light towers, welders and generators for
industrial and standby use. Kubota offers a wide range of generator
engines to meet various needs all over the world.
| Prime Power | 25KW/31KVA | Standby Power | 27.5KW/34KVA |
| Rated Speed | 1500RPM | Output Frequency | 50HZ |
| Phase | 3 | Rated Voltage | 400V |
| Engine Model | V3300 | Alternator Model | PI144H |
| Fuel Consumption of 100% load | 6.86L/H | Fuel Consumption of 75% load | 5.12L/H |
| Voltage Regulation Rate | ≤±1% | Random Voltage Rate | ≤±1% |
| Frequency Regulation Rate | ≤±5% | Random Frequency Variation | ≤±0.5% |
| Dimension (open type) | 1750×750×1200(mm) | Weight (open type) | 680kg |
| Dimension(silent type) | 2000×850×1350(mm) | Weight (silent type) | 900kg |
Kubota Diesel Engine
| Engine Model | V3300 |
| Number of Cylinder | 4 |
| Cylinder arrangement | Vertical in-line |
| Cycle | Four Stroke |
| Aspiration | Natural aspirated |
| Bore×Stroke (mm×mm) | 98×110 |
| Displacement | 3.318L |
| Compression Ratio | 23.0:1 |
| Prime Power/Speed(KW/rpm) | 26.3/1500 |
| Standby Power/Speed(KW/rpm) | 28.9/1500 |
| Speed Governor | Electric |
| Cooling System | Water-cooled, 4°C Radiator As Standard, 50°C Is Optional |
| Speed Stability(%) | ≤5% |
| Total Lubrication System Capacity (L) | 13.2 |
| Coolant Capacity(without radiator) (L) | 8.2 |
| Fuel Consumption at 100% Load(L/Hr) | 6.86(at 1500RPM) |
| Starter Motor | DC12V |
| Alternator | AC12V |
Stamford
| Alternator Model | PI 144H |
| Alternator Brand | Stamford |
| Exciter Type | Brushless, Self-excited |
| Rated Output | 28kw/35kva |
| Rated Speed | 1500RPM |
| Rated Frequency | 50HZ |
| Phase | Three |
| Rated Voltage | 230V/400V (Available with customer requirements) |
| Power Factor | 0.8 |
| Voltage Adjust Range | ≥5% |
| Voltage Regulation NL-FL | ≤±1% |
| Insulation Grade | H |
| Protection Grade | IP23 |
RFQ
Our Advantage
1. Multi-Brand Controllers are Available
2. Thick and Hard Silent Canopy
3. Various types of Trailer on 2 wheels,4 wheels,8 wheels
4. 100% Cooper brushless Alternator
4. Multi-Brands engine to Choose
