Kubota D1105 Electricity Supplier electric generator diesel 7kw
9kVA
1. Kubota Engine With Stamford Alternator
2. High Efficiency , Low Fuel Consumption
3.12 Months Warranty ,CE Approved

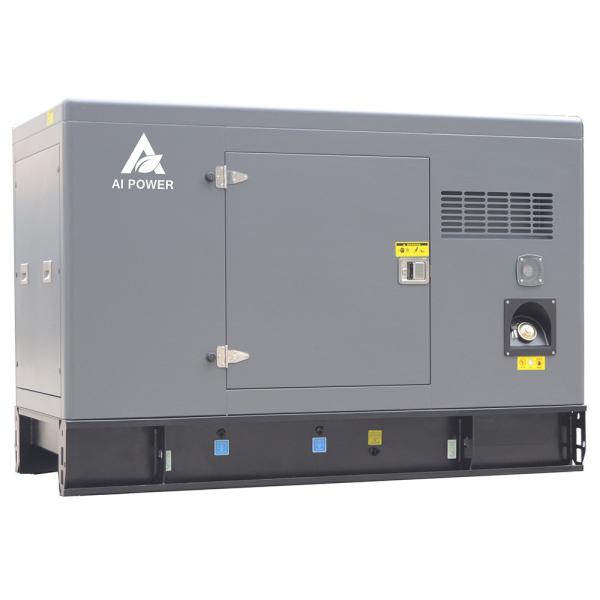

Four Stroke D1105 Engine Kubota Diesel Generator 10KVA
Specifications:
1. Composed of of Kubota diesel engine and Stamford or Leroy Somer
alternator
2. 12V DC start motor and storage battery
3. Brushless, Self-excited, IP23, insulation class H alternator
4. 40°C radiator as standard, 50°C is optional
5. Key start panel control system as standard, digital auto-start
panel is optional
6. 8-hour operation base tank
7. All generator sets are gone through rigorous testing before
being released to the market place, including 50% load, 75% load,
100% load, 110% load and all protection function
| Prime Power | 8KW/10KVA | Standby Power | 8.8KW/11KVA |
| Rated Speed | 1500RPM | Output Frequency | 50HZ |
| Phase | 3 | Rated Voltage | 400V |
| Engine Model | D1105 | Alternator Model | PI044E |
| Fuel Consumption of 100% load | 3.2L/H | Fuel Consumption of 75% load | 2.4L/H |
| Voltage Regulation Rate | ≤±1% | Random Voltage Rate | ≤±1% |
| Frequency Regulation Rate | ≤±5% | Random Frequency Variation | ≤±0.5% |
| Dimension (open type) | 1000×600×820(mm) | Weight (open type) | 300kg |
| Dimension(silent type) | 1300×650×900(mm) | Weight (silent type) | 400kg |
Prime Power:
This rating is for the supply of continuous electrical power (at
variable load). There is no limit on the annul hours of operation
and 10% overload power can be supplied for 1 hour in 12.
Standby Power:
This rating is for the supply of continuous electrical power (at
variable load) in the event of a utility power failure. No overload
is permitted.
Rated Voltage:
Available with customer requirements.
Kubota Diesel Engine
| Engine Model | D1105 |
| Number of Cylinder | 3 |
| Cylinder arrangement | Vertical in-line |
| Cycle | Four Stroke |
| Aspiration | Natural Aspiration |
| Bore×Stroke (mm×mm) | 78×78.4 |
| Displacement (L) | 1.123L |
| Compression Ratio | 22.0:1 |
| Prime Power/Speed(KW/rpm) | 8.5/1500 |
| Standby Power/Speed(KW/rpm) | 9.4/1500 |
| Speed Governor | Electrical |
| Cooling System | Water-cooled, 4°C Radiator As Standard, 50°C Is Optional |
| Speed Stability(%) | ≤5% |
| Total Lubrication System Capacity (L) | 5.6 |
| Coolant Capacity(without radiator) (L) | 5.5 |
| Fuel Consumption at 100% Load(g/kwh) | 3.2(at 1500RPM) |
| Starter Motor | DC12V |
| Alternator | AC12V |
Alternator Specifications
| Alternator Model | PI 044E |
| Alternator Brand | Stamford |
| Exciter Type | Brushless, Self-excited |
| Rated Output | 8kw/10kva |
| Rated Speed | 1500RPM |
| Rated Frequency | 50HZ |
| Phase | Three |
| Rated Voltage | 230V/400V (Available with customer requirements) |
| Power Factor | 0.8 |
| Voltage Adjust Range | ≥5% |
| Voltage Regulation NL-FL | ≤±1% |
| Insulation Grade | H |
| Protection Grade | IP23 |
Other alternator option: Leroy Somer
Control System
Deepsea 6120 Genset Controller
Description:
The Deepsea 6120 is an Automatic Start Control Module designed to
automatically start and stop the Generator.The module also monitors
and protects the engine, indicating operational status, fault
conditions and metering on the front panel LCD and LED’s.
1. Configuration of parameters by front panel push buttons or by PC
via mini USB interface with license free software.
2. Configurable fuel output energise to stop energise to run.
3. 3Configurable inputs.
4. 3 Configurable outputs.
5. 2 Analogue inputs configurable for different senders for oil
pressure and engine temperature.
6. True RMS measuring
RFQ
1. Q: What is your MOQ of this item?
A: 1 Set
2. Q: What is the delivery time?
A: 30 working days after receiving the 30% T / T deposit
3. Q: Is it ok to do customer's own brand?
A: We can be your OEM manufacturer with your brand authorization.
4. Q: where is your loading port?
A: Xiamen or others
5. Q: what are your payment terms?
A: 30% TT as deposit, 70% TT before shipment.
6. Q: What is the available production capacity of your company?
A: 300 sets per month
7. Q: How long is the warranty time for diesel generators?
A: 12 months or 1000 working hours
