375kva 300kw Diesel Generator Set Powered By USA Cummins Engine 6ZTAA13-G3

    Buy cheap 375kva 300kw Diesel Generator Set Powered By USA Cummins Engine 6ZTAA13-G3 from wholesalers

    Buy cheap 375kva 300kw Diesel Generator Set Powered By USA Cummins Engine 6ZTAA13-G3 from wholesalers
    • Buy cheap 375kva 300kw Diesel Generator Set Powered By USA Cummins Engine 6ZTAA13-G3 from wholesalers
    • Buy cheap 375kva 300kw Diesel Generator Set Powered By USA Cummins Engine 6ZTAA13-G3 from wholesalers

    375kva 300kw Diesel Generator Set Powered By USA Cummins Engine 6ZTAA13-G3

    Ask Lasest Price
    Brand Name : Ai Power Doosan Generator Set
    Model Number : A300
    Certification : CE, ISO, SONCAP
    Price : USD26000 Per Unit Negotiable
    Payment Terms : L/C, T/T, MoneyGram,Western Union
    Supply Ability : 300 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    375kva 300kw Diesel Generator Set Powered By USA Cummins Engine 6ZTAA13-G3

    Product Description

    Diesel Generator 375kva 300kw Generator Powered By USA Cummins Engine 6ZTAA13-G3

    Engine
    GENERAL ENGINE DATA
    Engine manufacturer
    Dongfeng Cummins Engine Co. Ltd
    Engine brand
    Cummins
    Engine model
    6ZTAA13-G3
    Engine speed (rpm)
    1500
    Engine output(kWm)
    Standby Power
    380
    Prime Power
    340
    Continuous Power
    296
    No. of Cylinder
    6
    Aspiration
    Turbocharged and Charge Air Cooled
    Bore * Stroke (mm)
    130*163
    Displacment (litre)
    13
    Compression Ratio
    17:01
    Engine Idle Speed (rpm)
    800-1000
    FUEL SYSTEM
    Type Injection System
    Electronic Governor
    Fuel Consumption (litre/hour)
    100% prime power
    76.5
    75% prime power
    56.5
    50% prime power
    38
    25% prime power
    20.9
    EXHAUST SYSTEM
    Maximum Back Pressure (kPa)
    13
    Exhaust Gas Temperature (standby/prime power) (°C)
    600/551
    Exhaust Gas Flow(standby/prime power) (litre/sec.)
    32.9/31.5
    Alternator
    Alternator manufacturer
    Leroy-somer Electro-technique (Fuzhou) Company Ltd.
    Alternator brand
    Leroysomer
    Alternator model
    TAL-A46-J
    Control system
    SHUNT
    A.V.R.
    Included
    Voltage regulation
    ±1.0%
    Insulation system
    Class H
    Protection
    IP23
    Rated power factor
    0.8
    Winding pitch
    Two thirds
    Winding leads
    6
    Frequency (Hz)
    50
    Voltage (V)
    400
    Phase
    3
    Output ratings (kVA/kW)
    ----------------Cont.H-40°C
    410/328
    ----------------Standby-27°C
    450/360
    THF
    <2%
    TIF
    <50
    Max. overspeed (Rev/Min)
    2250
    Bearing
    Single

    Supply Scope

    • Engine include air, fuel, oil filters, starting motor and charge alternator etc.
    • Brushless AC alternator, single bearing, flange connection, with AVR
    • Radiator with engine driven fan mounted on skid
    • Channel steel base frame, <550KW base 8hrs mounted fuel tank as standard
    • Anti-vibration pads between engine/alternator and base frame
    • Circuit breaker 3P as standard, 4P optional
    • Auto control panel
    • Start battery with connecting cable and floating battery charger
    • Flexible pipe, exhaust elbow, industrial silencer etc.
    • Standard tools kit
    • Electric drawing, test report ,operation &maintenance manual of generator etc.
    •Optional soundproof/Container canopy, ATS cabinet, remote control panel, synchronization panel, movable trailers, heat exchanger, remote horizontal water tank system, external fuel tank, etc

    Product Show

    375kva 300kw Diesel Generator Set Powered By USA Cummins Engine 6ZTAA13-G3375kva 300kw Diesel Generator Set Powered By USA Cummins Engine 6ZTAA13-G3

    Product Details

    375kva 300kw Diesel Generator Set Powered By USA Cummins Engine 6ZTAA13-G3

    Open Type.
    ● Famous brand engine couple with high quality alternator
    ● Large size cooling radiator
    ● Heavy duty steel base frame
    ● Strong anti-vibration mat
    ● Standard free maintenance battery
    ● AC alternator for battery charger
    ● Heavy-duty air filter, oil filter, water filter
    ● Famous brand controller and breaker
    ● Optional fuel tank, silent canopy, ATS, synchronization panels.

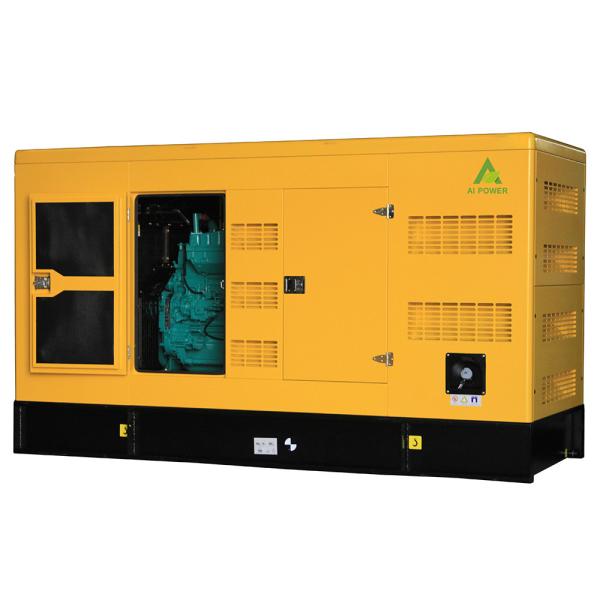

    Silent Performance Features:
    ● More than 2mm thick steel to make the canopy.
    ● High quality paint materials and strict powder paint processing.
    ● large-scale impedance combined type silencer effectively reducing noise of the generator.
    ● Stainless steel door locks and hinges and 180° revolvable and disassemble door for easy maintenance.
    ● High quality soundproof and insulation materials could efficiently reduce noise.
    ● Transparent viewing window make the control panel clear at a glance.
    ● Lifting ear is mounted in the base frame for easy pull.
    ● Elegant appearance and reliable quality.
    ●From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.
    ● ISO standard 20', 40' and 40HQ sea container canopy for options.
    ● Standard sea container canopy is easier for shipping.

    Our Factory

    AI POWER is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
    Besides generators, we also product the reefer product include lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switchgears.

    375kva 300kw Diesel Generator Set Powered By USA Cummins Engine 6ZTAA13-G3
