Brand Name : | Ai Power |
Model Number : | A10-A50 |
Certification : | CE, ISO |
Payment Terms : | L/C, T/T, Western Union, MoneyGram |
Supply Ability : | 200 units per month |
Delivery Time : | 30 to 35 days |

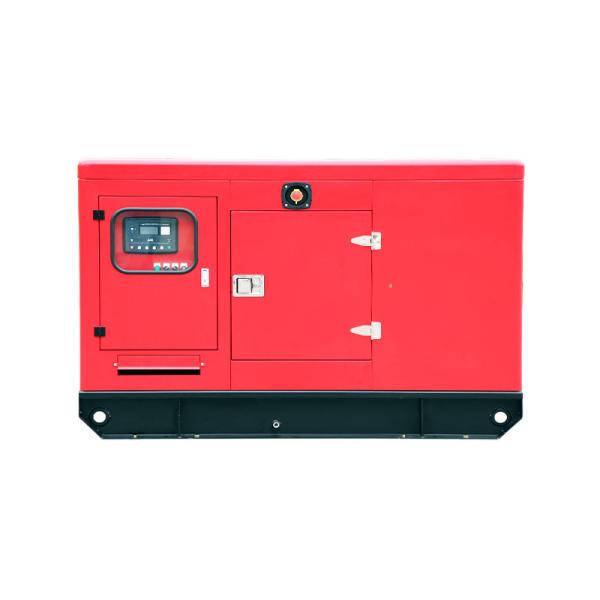

20 kw 3 Phase AC Chinese Diesel Generator Super silent diesel
generator
Cummins Power Generation has looked beyond today’s challenges,
helping our customers meet their future needs by developing the
next generation of power. It takes a globally integrated culture of
knowledge, know-how and innovation to ensure this next generation
of power is Always On. Our comprehensive portfolio delivers
centralized as well as distributed energy solutions for your unique
power need—commercial, industrial, marine, mining, recreational,
emergency and residential.
Generator Specifications:
Diesel generator Details | |
Model | AYD28 |
Power | 20kw/25kva |
Frequency | 50Hz/60Hz |
Voltage | 380/220v(voltage can be customized) |
Optional Type | Open/soundproof/trailer |
Size of Open type | 1320*850*1050mm |
Weight of Open type | 490kg |
With Diesel Engine | |
Brand&model | with YangDong engine YSD490D |
Standby Power | 21kw |
Cylinders | 4 in line arrangement |
Bore*Stroke | 80*90mm |
Displacement | 1.357L |
Lubrication Oil Capacity | 10L |
Fuel Consumption at 100% Load | 205g/kw.h |
Speed Governor | Mechanical |
With Alternator | |
Optional Brands | Stamford/Leroy Somer/Mecc Alte/Marathon |
Exciter type | Single bearing,brushless,Self-excited |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Insulation Grade | H |
Protection Grade | IP23 |
With Controller | |
Optional brands | Deepsea/ComAp/Smartgen |
Product Details
● Famous brand engine couple with high quality alternator
● Large size cooling radiator
● Heavy duty steel base frame
● Strong anti-vibration mat
● Standard free maintenance battery
● AC alternator for battery charger
● Heavy-duty air filter, oil filter, water filter
● Famous brand controller and breaker
● Optional fuel tank, silent canopy, ATS, synchronization panels.
A: It’s 1 year or 1000 running hours whichever comes first. But based on some special project, we can extend our warranty period.
A. Yes, we can accept OEM.
A: We can accept T/T 30% in advance and the balance 70% shall be paid before shipment or LC at sight.
![]() |
