Silent Type 500kva Diesel Generator With Cummins Engine KTA19-G3A USA Brand Generator

Product Description

Cheap Price Silent Type 500kva Diesel Generator With Cummins Engine KTA19-G3A USA Brand Generator

Engine
GENERAL ENGINE DATA
Engine manufacturer	Chongqing Cummins Engine Co., Ltd.
Engine brand	Cummins
Engine model	KTA19-G3A
Engine speed (rpm)	1500
Engine output(kW)
Standby power rating	504
Prime power rating	448
Type	4-Cycle, In line, 6 Cylinder
Aspiration	Turbocharged and aftercooled
Bore * Stroke (mm)	159 * 159
Displacment (litre)	19
Compression Ratio	13.9:1
FUEL SYSTEM
Type Injection System	Direct Injection Cummins PT
Fuel Consumption (litre/hour)
100% output power	108.3
75% output power	83.3
50% output power	57.1
25% output power	30.9

ALTERNATOR
Alternator manufacturer	Leroy-somer Electro-technique (Fuzhou) Company Ltd.
Alternator brand	Leroysomer
Alternator model	TAL-A47-C
Control system	SHUNT
A.V.R.	Included
Voltage regulation	±1.0%
Insulation system	Class H
Protection	IP23
Rated power factor	0.8
Winding pitch	Two thirds
Winding leads	6
Frequency (Hz)	50
Voltage (V)	400
Phase	3
Output ratings (kVA/kW)
----------------Cont.H-40°C	500/400
----------------Standby-27°C	550/440
THF	<2%
TIF	<50
Max. overspeed (Rev/Min)	2250
Bearing	Single

Supply Scope

• Engine include air, fuel, oil filters, starting motor and charge alternator etc.
 • Brushless AC alternator, single bearing, flange connection, with AVR
 • Radiator with engine driven fan mounted on skid
 • Channel steel base frame, <550KW base 8hrs mounted fuel tank as standard
 • Anti-vibration pads between engine/alternator and base frame
 • Circuit breaker 3P as standard, 4P optional
 • Auto control panel
 • Start battery with connecting cable and floating battery charger
 • Flexbile pipe, exhaust elbow, industrial silencer etc.
 • Standard tools kit
 • Electric drawing, test report ,operation & maintaince manual of generator etc.
 •Optional soundproof/Container canopy, ATS cabinet, remote control panel, synchronization panel, movable trailers, heat exchanger, remote horizontal water tank system, external fuel tank, etc

Product Show

Products Details

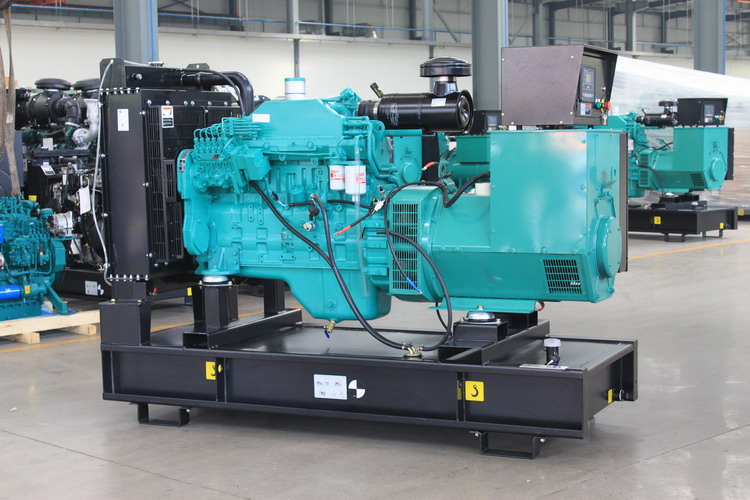

Open Diesel Generator:

Assembled by diesel engine and high quality branded alternator.
Radiator and fan with safety guard, or heat exchanger.
Heavy duty steel base frame with great capacity fuel tank for options.
Vibration damping supports between engine/alternator and base frame.
Heavy duty industrial type exhaust silencer with flexible bellow.
High capacity sealed lead acid battery with battery cable.
Intelligent control panel, Deepsea or Comap brand for options.

Silent Diesel Generator:

Air inlet cooling system
Stainless door lock
Fuel cap lock
Tow holes
engine
radiator
insulation and soundproof materials
maintenance door

Control panel

①Speed controller
 ②mains battery charger
 ③protection relay
 ④wiring connection terminals
 ⑤MCCB using for protection
 ⑥Deepsea controller


Protection function

Low oil Pressure
High water temperature
High voltage and low voltage
Over current
Overspeed
Volt adjuster and frequency adjuster.
Emergency stop
Low fuel alarm and shutdown
Low coolant alarm and shutdown

Our factory

AI POWER is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
 Besides generators, we also product the refere product incldue lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switchgear.
