150kva Diesel Generator 120kw Generator With Cummins 6BTAA5.9-G12

    Buy cheap 150kva Diesel Generator 120kw Generator With Cummins 6BTAA5.9-G12 from wholesalers

    Buy cheap 150kva Diesel Generator 120kw Generator With Cummins 6BTAA5.9-G12 from wholesalers
    • Buy cheap 150kva Diesel Generator 120kw Generator With Cummins 6BTAA5.9-G12 from wholesalers

    150kva Diesel Generator 120kw Generator With Cummins 6BTAA5.9-G12

    Ask Lasest Price
    Brand Name : Ai Power
    Model Number : A150
    Certification : CE, ISO
    Price : USD12600 per unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100 units per month
    Delivery Time : 25 to 30 days
    • Product Details
    • Company Profile

    150kva Diesel Generator 120kw Generator With Cummins 6BTAA5.9-G12

    Product Description

    150kva diesel generator 120kw generator with DCEC 6BTAA5.9-G12

    150kva Diesel Generator 120kw Generator With Cummins 6BTAA5.9-G12
    Engine
    GENERAL ENGINE DATA
    Engine manufacturer
    Dongfeng Cummins Engine Co. Ltd
    Engine brand
    Cummins
    Engine model
    6BTAA5.9-G12
    Engine speed (rpm)
    1500
    Engine output(kWm)
    Standby Power
    155
    Prime Power
    140
    Continuous Power
    TBD
    No. of Cylinder
    6
    Aspiration
    Turbocharged and Charge Air Cooled
    Bore * Stroke (mm)
    102 * 120
    Displacment (litre)
    5.9
    Compression Ratio
    17.3:1
    Engine Idle Speed (rpm)
    750-850
    FUEL SYSTEM
    Type Injection System
    BYC A/Electronic Governor
    Fuel Consumption (litre/hour)
    100% prime power
    34
    75% prime power
    26
    50% prime power
    17
    25% prime power
    10
    EXHAUST SYSTEM
    Maximum Back Pressure (kPa)
    10
    Exhaust Gas Temperature (standby/prime power) (°C)
    507/495
    Exhaust Gas Flow(standby/prime power) (litre/sec.)
    357/321
    Exhaust Pipe Size Normally Acceptable(mm)
    75
    ALTERNATOR
    Alternator manufacturer
    Leroy-somer Electro-technique (Fuzhou) Company Ltd.
    Alternator brand
    Leroysomer
    Alternator model
    TAL-A44-J
    Control system
    SHUNT
    A.V.R.
    Included
    Voltage regulation
    ±1.0%
    Insulation system
    Class H
    Protection
    IP23
    Rated power factor
    0.8
    Winding pitch
    Two thirds
    Winding leads
    6
    Frequency (Hz)
    50
    Voltage (V)
    400
    Phase
    3
    Output ratings (kVA/kW)
    ----------------Cont.H-40°C
    150/120
    ----------------Standby-27°C
    165/132
    THF
    <2%
    TIF
    <50
    Max. overspeed (Rev/Min)
    2250
    Bearing
    Single

    Open Type.

    Famous brand engine couple with high quality alternator
    Large size cooling radiator
    Heavy duty steel base frame
    Strong anti-vibration mat
    Standard free maintenance battery
    AC alternator for battery charger
    Heavy-duty air filter, oil filter, water filter
    Famous brand controller and breaker
    Optional fuel tank, silent canopy, ATS, synchronization panels.

    150kva Diesel Generator 120kw Generator With Cummins 6BTAA5.9-G12
    150kva Diesel Generator 120kw Generator With Cummins 6BTAA5.9-G12

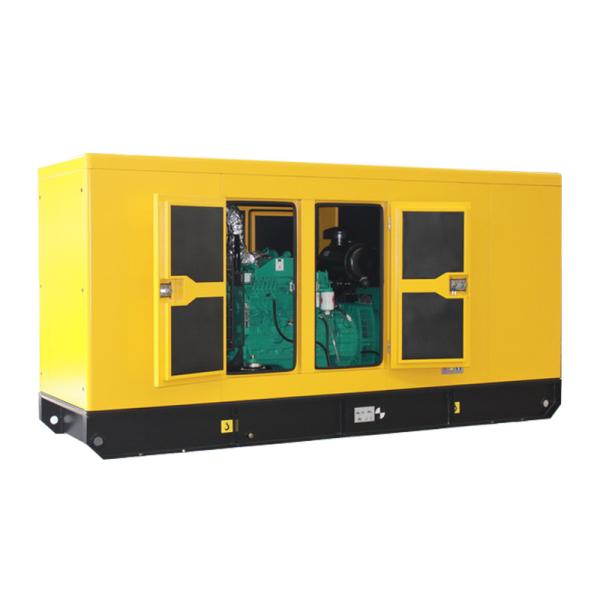

    Silent Type.

    1.Fresh air inlet cooling system
    2.Fuel refill nipple
    3.Fuel outlet
    4.Lub oil outlet
    5. 8hours base fuel tank

    .

    Products Show
    150kva Diesel Generator 120kw Generator With Cummins 6BTAA5.9-G12
    150kva Diesel Generator 120kw Generator With Cummins 6BTAA5.9-G12
    150kva Diesel Generator 120kw Generator With Cummins 6BTAA5.9-G12
    150kva Diesel Generator 120kw Generator With Cummins 6BTAA5.9-G12
    150kva Diesel Generator 120kw Generator With Cummins 6BTAA5.9-G12
    Our Factory

    AI POWER is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
    Besides generators, we also product the refere product incldue lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switchgear.
