144kw 180kva Diesel Power Generator With Cummins Engine 6CTA8.3-G2

Ask Lasest Price
Brand Name :	Ai Power
Model Number :	A180
Certification :	CE, ISO,SONCAP
Price :	USD15000 PER UNIT
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	100 units per month
Delivery Time :	25 to 35 days

Add to Cart

Product Details
Company Profile

144kw 180kva Diesel Power Generator With Cummins Engine 6CTA8.3-G2

Product Description

144kw power generator 180kva deisel generator with DCEC engine 6CTA8.3-G2

Engine
GENERAL ENGINE DATA
Engine manufacturer	Dongfeng Cummins Engine Co. Ltd
Engine brand	Cummins
Engine model	6CTA8.3-G2
Engine speed (rpm)	1500
Engine output(kWm)
Standby Power	180
Prime Power	163
Continuous Power	133
No. of Cylinder	6
Aspiration	Turbocharged & Aftercooled
Bore * Stroke (mm)	114*135
Displacment (litre)	8.3
Compression Ratio	17.3:1
Engine Idle Speed (rpm)	700-900
FUEL SYSTEM
Type Injection System	BYC PB/GAC
Fuel Consumption (litre/hour)
100% prime power	42
75% prime power	31
50% prime power	21
25% prime power	13
EXHAUST SYSTEM
Maximum Back Pressure (kPa)	10
Exhaust Gas Temperature (standby/prime power) (°C)	563/536
Exhaust Gas Flow(standby/prime power) (litre/sec.)	578/521

Alternator
Alternator manufacturer	Leroy-somer Electro-technique (Fuzhou) Company Ltd.
Alternator brand	Leroysomer
Alternator model	TAL-A46-A
Control system	SHUNT
A.V.R.	Included
Voltage regulation	±1.0%
Insulation system	Class H
Protection	IP23
Rated power factor	0.8
Winding pitch	Two thirds
Winding leads	6
Frequency (Hz)	50
Voltage (V)	400
Phase	3
Output ratings (kVA/kW)
----------------Cont.H-40°C	180/144
----------------Standby-27°C	200/160
THF	<2%
TIF	<50
Max. overspeed (Rev/Min)	2250
Bearing	Single

Supply Scope

• Engine include air, fuel, oil filters, starting motor and charge alternator etc.
 • Brushless AC alternator, single bearing, flange connection, with AVR
 • Radiator with engine driven fan mounted on skid
 • Channel steel base frame, <550KW base 8hrs mounted fuel tank as standard
 • Anti-vibration pads between engine/alternator and base frame
 • Circuit breaker 3P as standard, 4P optional
 • Auto control panel
 • Start battery with connecting cable and floating battery charger
 • Flexbile pipe, exhaust elbow, industrial silencer etc.
 • Standard tools kit
 • Electric drawing, test report ,operation & maintaince manual of generator etc.
 •Optional soundproof/Container canopy, ATS cabinet, remote control panel, synchronization panel, movable trailers, heat exchanger, remote horizontal water tank system, external fuel tank, etc

Product Show

Products Details

Open Diesel Generator:

Assembled by diesel engine and high quality branded alternator.
Radiator and fan with safety guard, or heat exchanger.
Heavy duty steel base frame with great capacity fuel tank for options.
Vibration damping supports between engine/alternator and base frame.
Heavy duty industrial type exhaust silencer with flexible bellow.
High capacity sealed lead acid battery with battery cable.
Intelligent control panel, Deepsea or Comap brand for options.

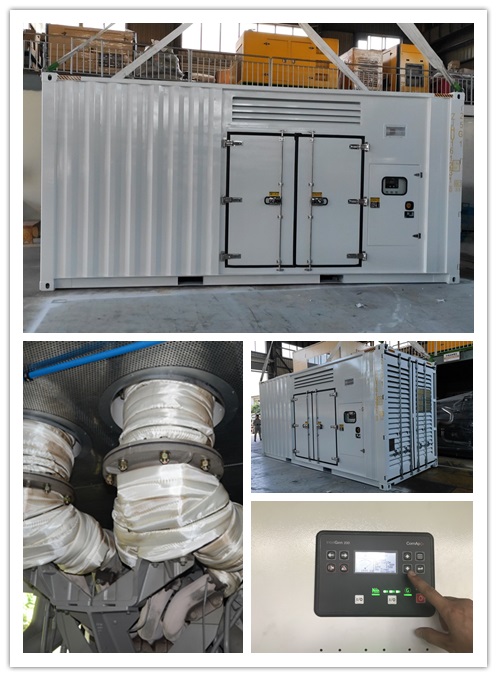

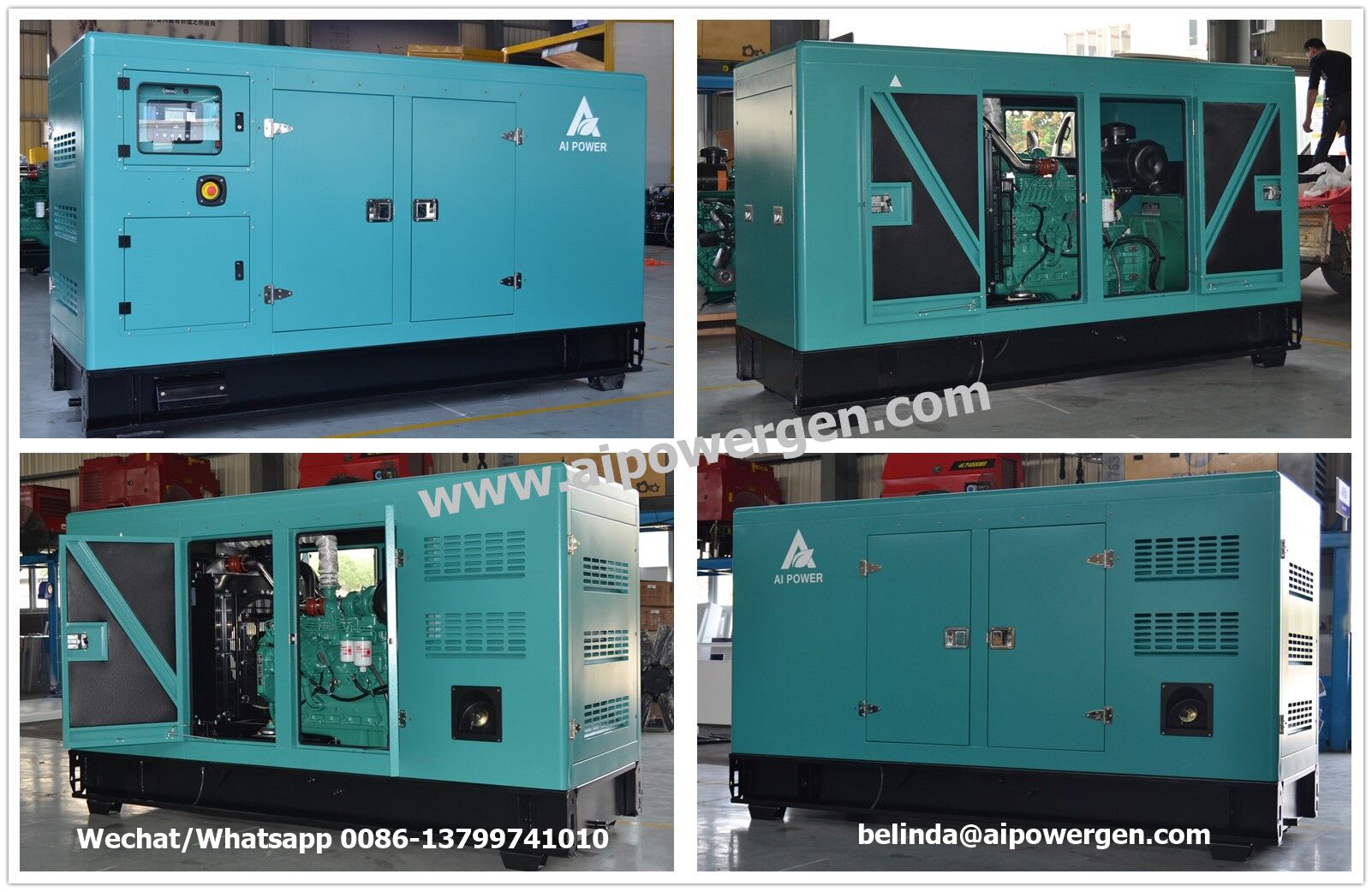

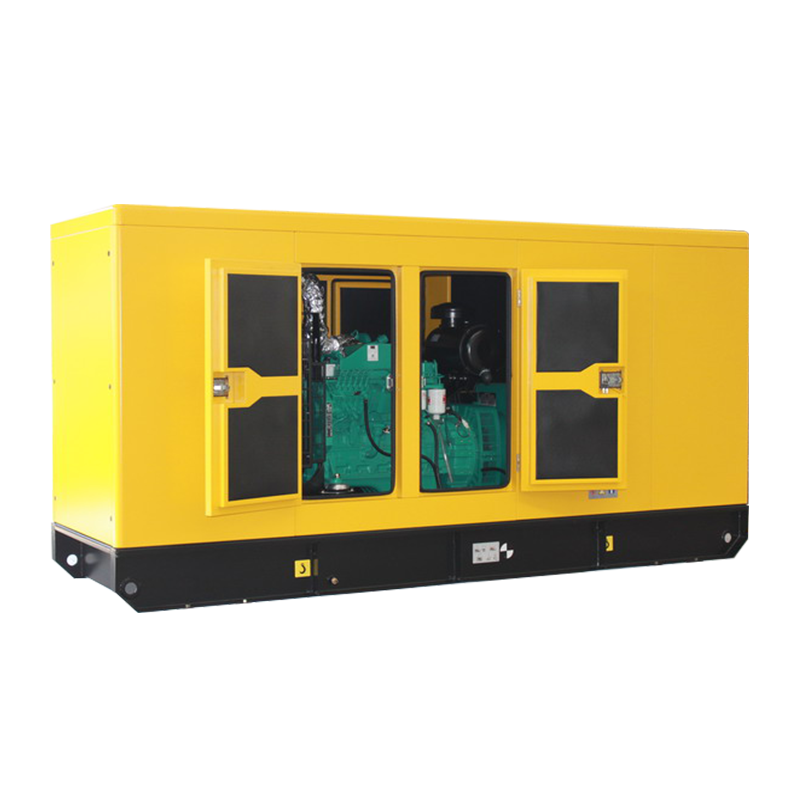

Silent Diesel Generator:

Air inlet cooling system
Stainless door lock
Fuel cap lock
Tow holes
engine
radiator
insulation and soundproof materials
maintenance door

Control panel

①Speed controller
 ②mains battery charger
 ③protection relay
 ④wiring connection terminals
 ⑤MCCB using for protection
 ⑥Deepsea controller


Protection function

Low oil Pressure
High water temperature
High voltage and low voltage
Over current
Overspeed
Volt adjuster and frequency adjuster.
Emergency stop
Low fuel alarm and shutdown
Low coolant alarm and shutdown

Our factory

AI POWER is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
 Besides generators, we also product the refere product incldue lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switchgear.
