Famous Ai Power Portable Generator 250kva Diesel Generator 200kw With Cummins 6LTAA8.9-G3

Product Description

Famous Ai power portable generator 250kva diesel generator 200kw with Cummins 6LTAA8.9-G3!

Famous Ai Power Portable Generator 250kva Diesel Generator 200kw With Cummins 6LTAA8.9-G3

Ai power Cummins series generator set adopts Cummins engine as the power source. Cummins Inc. is a global power leader who is devoted to the engine R&D and manufacturer since 1919 in Columbus, now it has become the largest engine manufacturer in the world providing more than 160 countries sales and aftersales service.

Engine:

Engine
GENERAL ENGINE DATA
Engine manufacturer	Dongfeng Cummins Engine Co. Ltd
Engine brand	Cummins
Engine model	6LTAA8.9-G3
Engine speed (rpm)	1500
Engine output(kWm)
Standby Power	240
Prime Power	220
Continuous Power	180
No. of Cylinder	6
Aspiration	Turbocharged and Charge Air Cooled
Bore * Stroke (mm)	114*145
Displacment (litre)	8.9
Compression Ratio	16.6:1
Engine Idle Speed (rpm)	900-1100
FUEL SYSTEM
Type Injection System	BYC P7100/Electronic Governor
Fuel Consumption (litre/hour)
100% prime power	54
75% prime power	41
50% prime power	30
25% prime power	20
EXHAUST SYSTEM
Maximum Back Pressure (kPa)	10
Exhaust Gas Temperature (standby/prime power) (°C)	542/553
Exhaust Gas Flow(standby/prime power) (litre/sec.)	643/584
AIR INDUCTION SYSTEM
Maximum Intake Air Restriction (kPa)
with Dirty Filter Element	6.2
with Clean Filter Element	3.7
Intake Air Flow (standby/prime power) (litre/sec.)	235/216
LUBRICATION SYSTEM
Oil Pressure (kPa)
Idle Speed	103
Governed Speed	276 - 414
Maximum Oil Temperature (°C)	121
Min. required Lube system capacity-sump plus filters (liter)	27.6

Alternator:

Alternator
Alternator manufacturer	Leroy-somer Electro-technique (Fuzhou) Company Ltd.
Alternator brand	Leroysomer
Alternator model	TAL-A46-D
Control system	SHUNT
A.V.R.	Included
Voltage regulation	±1.0%
Insulation system	Class H
Protection	IP23
Rated power factor	0.8
Winding pitch	Two thirds
Winding leads	6
Frequency (Hz)	50
Voltage (V)	400
Phase	3
Output ratings (kVA/kW)
----------------Cont.H-40°C	250/200
----------------Standby-27°C	275/220
THF	<2%
TIF	<50
Max. overspeed (Rev/Min)	2250
Bearing	Single

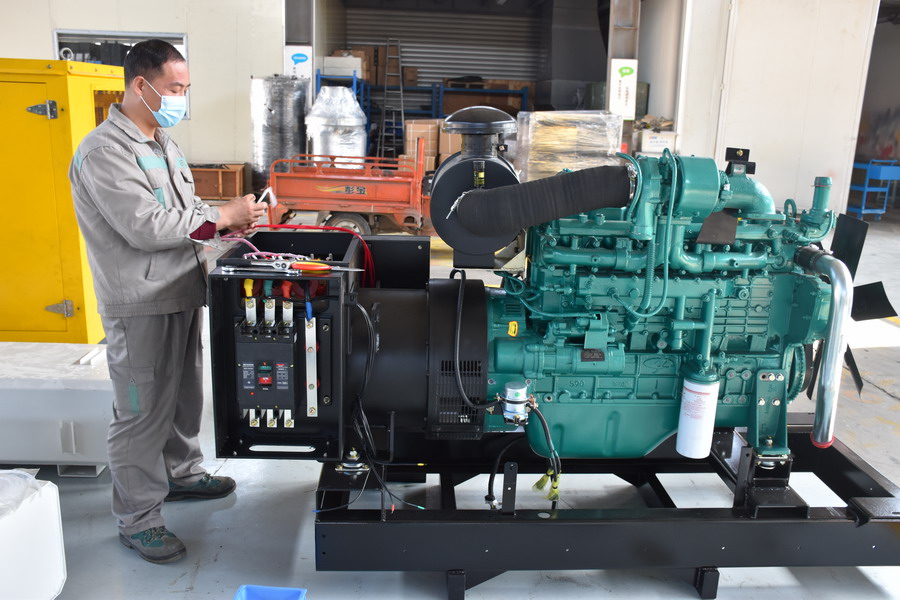

Product Detailes

Control panel
High quality 3P Circuit breaker and terminal output
Strong hoisting structure
Durable stainless steel hinges
High performance exhaust silencer
Radiator coolant refill

Assembled by Yuchai diesel engine and high quality branded alternator.
Radiator and fan with safety guard, or heat exchanger.
Heavy duty steel base frame with great capacity fuel tank for options.
Vibration damping supports between engine/alternator and base frame.
Heavy duty industrial type exhaust silencer with flexible bellow.
High capacity sealed lead acid battery with battery cable.
Intelligent control panel, Deepsea or Comap brand for options.

Open Type.
 ● Famous brand engine couple with high quality alternator
 ● Large size cooling radiator
 ● Heavy duty steel base frame
 ● Strong anti-vibration mat
 ● Standard free maintenance battery
 ● AC alternator for battery charger
 ● Heavy-duty air filter, oil filter, water filter
 ● Famous brand controller and breaker
 ● Optional fuel tank, silent canopy, ATS, synchronization panels.

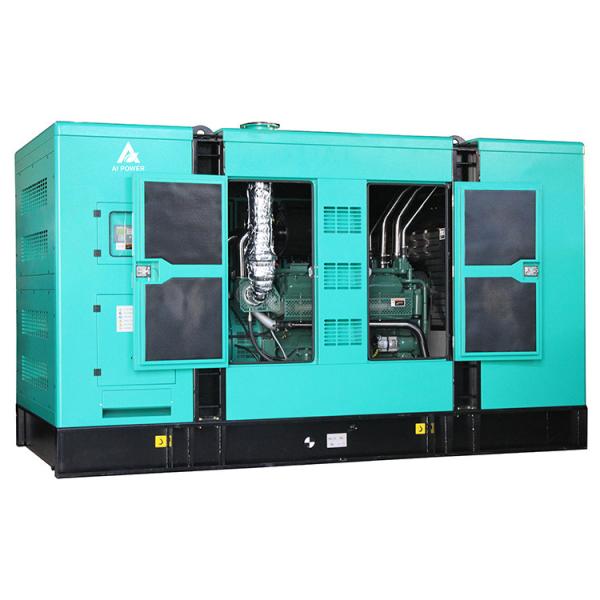

Silent Performance Features:
 ● More than 2mm thick steel to make the canopy.
 ● High quality paint materials and strict powder paint processing.
 ● large-scale impedance combined type silencer effectively reducing noise of the generator.
 ● Stainless steel door locks and hinges and 180° revolvable and disassemble door for easy maintenance.
 ● High quality soundproof and insulation materials could efficiently reduce noise.
 ● Transparent viewing window make the control panel clear at a glance.
 ● Lifting ear is mounted in the base frame for easy pull.
 ● Elegant appearance and reliable quality.
 ●From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.
 ● ISO standard 20’, 40’ and 40HQ sea container canopy for options.
 ● Standard sea container canopy is easier for shipping.

AI Company

Advanced&Intelligent.

Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province, It is dedicated to becoming a comprehensive company for intelligent power and green energy supply.Our company aim to create a better life for the world by supplying better power solutions. Continually improving products’ quality, friendly-use and durability is our long-term mission. We will make all the efforts to walk a long way to reach customers’ greatest satisfaction.

Packing & Delivery

FAQ

1. What is your warranty period?
 A: It’s 1 year or 1000 running hours whichever comes first. But based on some special project, we can extend our warranty period.

 2. Can you accept OEM?
 A. Yes, we can accept OEM.

 3. What’s your payment term?
 A: We can accept T/T 30% in advance and the balance 70% shall be paid before shipment or LC at sight.

 4.What’s your delivery time?
 A:Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
