Electrical Perkins Power Diesel Generator 15kva 12kw With UK Perkins Engine 403A-15G2

Product Categories

Xiamen Ai Power Technology Co., Ltd.

Contact Now

Electrical Perkins Power Diesel Generator 15kva 12kw With UK Perkins Engine 403A-15G2

Ask Lasest Price
Brand Name :	AI POWER
Model Number :	A12
Certification :	CE, ISO9001, SONCAP,EPA
Price :	USD6500/set
Payment Terms :	L/C, T/T
Supply Ability :	100 Sets Per Month
Delivery Time :	15 Days

Add to Cart

Product Details
Company Profile

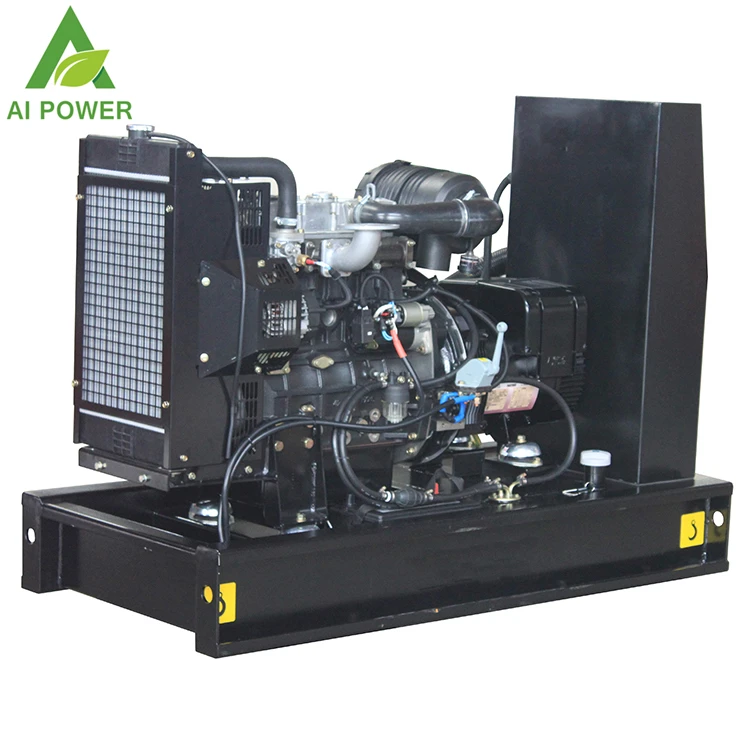

Electrical Perkins Power Diesel Generator 15kva 12kw With UK Perkins Engine 403A-15G2

Product Description

Perkins 15kva Power Diesel Generator 12kw Electrical Generator With UK Perkins Engine 403A-15G2

Electrical Perkins Power Diesel Generator 15kva 12kw With UK Perkins Engine 403A-15G2

Diesel Engine:

GENERAL ENGINE DATA
Engine manufacture	Perkins Engines Company Limited
Engine brand	Perkins
Engine model	403A-15G2
Engine speed (rpm)	1500
	Prime power
Gross engine power (kWb)	14
Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)	12
Cylinders	3-cylinder, vertical in line
Cycle	4 stroke
Induction system	Naturally Aspirated
Compression ratio	22.5:1
Bore * Stroke (mm)	84*90
Cubic capacity (Litre)	1.496
FUEL SYSTEM
Type of injection	direct
Governor type	Mechanical
Fuel Consumption (litre/hour)
110%	4.9
100%	4.1
COOLING SYSTEM
Total system capacity(litre)
with radiator	6
without radiator	2.6
Max. top tank temperature (°C)	112
Thermostat operating range (°C)	82-95
LUBRICATION SYSTEM
Min. oil capacity in sump(litre)	4.5
Max. oil capacity in sump(litre)	6
Min. oil pressure(kPa)	120
Max. oil temperature-continuous operation(°C)	125
Max. oil temperature-intermittent operation(°C)	135
INDUCTION SYSTEM
Maximum air intake restriction of engine (kPa)
Clean filter	3
Dirty filter	6.4
Combustion air flow(standby/prime power) (m3/min)	1
EXHAUST SYSTEM
Back pressure for total system (kPa)	10.2
Exhaust gas flow (max)(m3/min)	2.2
Exhaust gas temp. after turbo(standby/prime power)(°C)	580/470
ELECTRICAL SYSTEM
Alternator voltage (volts)	12
Alternator output (amps)	15
Stater motor type (volts)	12
Starter motor power (kw)	2

AC Alternator:

Alternator manufacturer	Leroy-somer Electro-technique (Fuzhou) Company Ltd.
Alternator brand	Leroysomer
Alternator model	SA40S3
Control system	SHUNT
A.V.R.	Included
Voltage regulation	±1.0%
Insulation system	Class H
Protection	IP23
Rated power factor	0.8
Winding pitch	Two thirds
Winding leads	12
Frequency (Hz)	50
Voltage (V)	400
Phase	3
Output ratings (kVA/kW)
----------------Cont.H-40°C	15/12
----------------Standby-27°C	16.5/13.2
THF	<2%
TIF	<50
Max. overspeed (Rev/Min)	2250
Bearing	Single

Dimension & Weight
Genset Model	Type	LWH(mm)	Weight(kg)
A12	Open	14007501120	48
A12	Silent	190010001350	920

Product Details

1.Deepsea, Smartgen Control panel
2.High quality 3P Circuit breaker and terminal output
3.Strong hoisting structure
4.Durable stainless steel hinges
5.High performance exhaust silencer
6.Radiator coolant refill

1.Assembled by Famous diesel engine and high quality branded alternator.
2.Radiator and fan with safety guard, or heat exchanger.
3.Heavy duty steel base frame with great capacity fuel tank for options.
4.Vibration damping supports between engine/alternator and base frame.
5.Heavy duty industrial type exhaust silencer with flexible bellow.
6.High capacity sealed lead acid battery with battery cable.
7.Intelligent control panel, Deepsea or Comap brand for options.

Open Type.
● Famous brand engine couple with high quality alternator
● Large size cooling radiator
● Heavy duty steel base frame
● Strong anti-vibration mat
● Standard free maintenance battery
● AC alternator for battery charger
● Heavy-duty air filter, oil filter, water filter
● Famous brand controller and breaker
● Optional fuel tank, silent canopy, ATS, synchronization panels.

Silent Performance Features:
● More than 2mm thick steel to make the canopy.
● High quality paint materials and strict powder paint processing.
● large-scale impedance combined type silencer effectively reducing noise of the generator.
● Stainless steel door locks and hinges and 180° revolvable and disassemble door for easy maintenance.
● High quality soundproof and insulation materials could efficiently reduce noise.
● Transparent viewing window make the control panel clear at a glance.
● Lifting ear is mounted in the base frame for easy pull.
● Elegant appearance and reliable quality.
●From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.
● ISO standard 20', 40' and 40HQ sea container canopy for options.
● Standard sea container canopy is easier for shipping.
