15KVA 12KW Air Cooled Perkins Diesel Generator Set 403A-15G2

15KVA 12KW Prime Power Rating Generator Set Perkins Engine Model 403A-15G2 Produce in UK

The Perkins 403 range of electric power (EP) engines delivers the same compact benefits of its 2 cylinder stablemate, but takes a stride forward in terms of noise, refinement and power. The 3 cylinder range offers excellent power density and superb fuel economy and is designed to meet your power generation needs in both unregulated territories where extreme conditions are likely, and higher regulated territories with more stringent emissions standards.

GENERAL ENGINE DATA

Generator set model	Voltage	Hz	Phase	P.F.	Prime Power		Standby Power
Generator set model	(V)				KVA	KW	KVA	KW
AP17	230/400	50	3	0.8	15	12	17	13
•220/380V, 240/415V, 254/440V is avaliable

GENERAL ENGINE DATA

Engine manufacture

Perkins Engines Company Limited

Engine brand

Perkins

Engine model

403A-15G2

Engine speed (rpm)

1500

Prime power

Standby power

Gross engine power (kWb)

15.4

Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)

13.26

Cylinders

3-cylinder, vertical in line

Cycle

4 stroke

Induction system

Naturally Aspirated

Compression ratio

22.5:1

Bore * Stroke (mm)

84*90

Cubic capacity (Litre)

1.496

ALTERNATOR Specification

Alternator manufacturer

Leroy-somer Electro-technique (Fuzhou) Company Ltd.

Alternator brand

Leroysomer

Alternator model

TAL-A40-D

Control system

SHUNT

A.V.R.

Included

Voltage regulation

±1.0%

Insulation system

Class H

Protection

IP23

Rated power factor

0.8

Winding pitch

Two thirds

Winding leads

Frequency (Hz)

Voltage (V)

400

Phase

Output ratings (kVA/kW)

----------------Cont.H-40°C

15/12

----------------Standby-27°C

16.5/13.2

THF

<2%

TIF

<50

Max. overspeed (Rev/Min)

2250

Bearing

Single

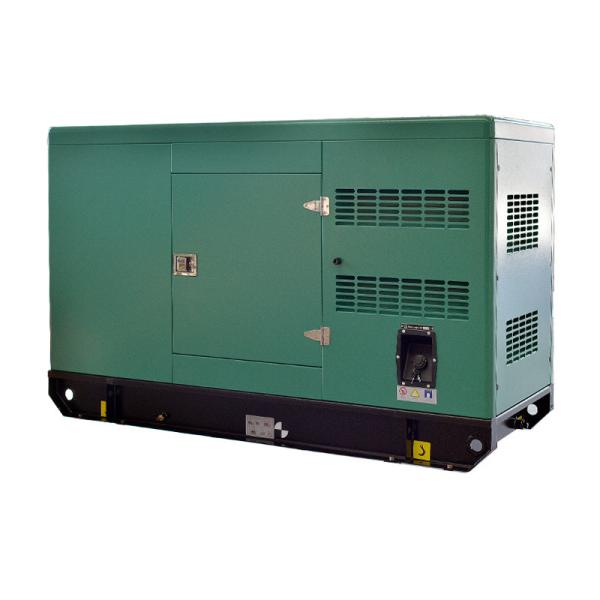

Pernkins Generator 12KW/15KVA 403A-15G2 Photo

FAQ:

Q1:What is your power range of your diesel generator?

Answer: We can provide 6KVA to 3000KVA.

Q2:What is the different between prime power and standby power?

Answer: Prime power is 12 hours continuous power, Standby Power is 1 Hour peak power.

Q3:How to choose the power?

Answer: Collect all power of your equipments, take the surge current into your consideration.

Q4:What is your payment term?

Answer: We accept T/T, L/C, Western Union.

Q5:What is your warranty?

Answer: We will warrant our diesel generator for 1000 hours or one year which comes first.

Q6:What is your MOQ?

Answer: MOQ is 1 set.

Q7:Do you offer OEM service?

Answer: OYes!

Q8:What is your lead time?

Answer:15-20days after receive your deposit.
