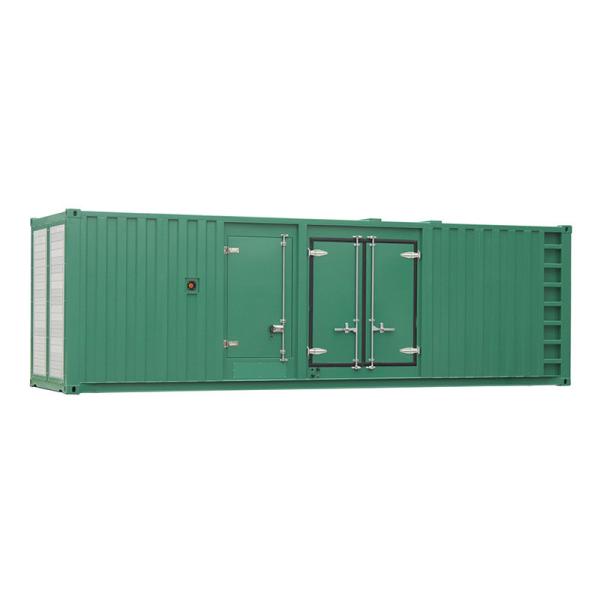

728kw 900kva Perkins Silent Diesel Powered Portable Generator 4008TAG1A

    Buy cheap 728kw 900kva Perkins Silent Diesel Powered Portable Generator 4008TAG1A from wholesalers

    Buy cheap 728kw 900kva Perkins Silent Diesel Powered Portable Generator 4008TAG1A from wholesalers
    • Buy cheap 728kw 900kva Perkins Silent Diesel Powered Portable Generator 4008TAG1A from wholesalers
    • Buy cheap 728kw 900kva Perkins Silent Diesel Powered Portable Generator 4008TAG1A from wholesalers
    • Buy cheap 728kw 900kva Perkins Silent Diesel Powered Portable Generator 4008TAG1A from wholesalers

    728kw 900kva Perkins Silent Diesel Powered Portable Generator 4008TAG1A

    Ask Lasest Price
    Brand Name : Ai Power 728KW 910KVA Perkins Diesel Power Prise
    Model Number : AP1000
    Certification : CE, ISO9001
    Price : USD 90000 to 100000 Per Unit Negotiable
    Payment Terms : Western Union, L/C, T/T, MoneyGram
    Supply Ability : 300 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    728kw 900kva Perkins Silent Diesel Powered Portable Generator 4008TAG1A

    Emergency Diesel Generator In Power Plant Perkins Generator Manufacturer In The World 4008TAG1A


    Standard Configuration
    • Engine include air,fuel,oil filters, starting motor and charge alternator etc.
    • Brushless AC alternator,single bearing, flange connection, w/AVR
    • Radiator with engine driven fan mounted on skid
    • Channel steel base frame, <550KW base 8hrs mounted fuel tank as standard
    • Anti-vibration pads between engine/alternator and base frame
    • Circuit breaker 3P as standard, 4P optional
    • Auto control panel
    • Start battery w/ connecting cable and floating battery charger
    • Flexbile pipe, exhaust elbow, industrial silencer etc.
    • Standard tools kit
    • Electric drawing, test report ,operation & maintaince manual of generator etc.
    •Optional soundproof/Container canopy, ATS cabinet, remote control panel, synchronization panel, movable trailers, heat exchanger, remote horizontal water tank system, external fuel tank, etc


    Output Ratings


    Generator set modelVoltageHzPhaseP.F.Prime PowerStandby Power
    (V)KVAKWKVAKW
    AP1000230/4005030.89007201000800

    GENERAL ENGINE DATA


    Engine manufacturePerkins Engines Company Limited
    Engine brandPerkins
    Engine model4008TAG1A
    Engine speed (rpm)1500
    Baseload powerPrime powerStandby power
    Gross engine power (kWb)644805882
    Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)586739812
    Cylinders8-cylinder, in line
    Cycle4 stroke
    Induction systemTurbocharged
    Combustion systemDirect injection
    Compression ratio13.6:1
    Bore * Stroke (mm)160 * 190
    Cubic capacity (Litre)30.561

    FUEL SYSTEM
    Injection systemDirect
    Governor typeelectronic
    Fuel Consumption (litre/hour)
    Standby218
    Prime195
    Baseload154
    75% output power143
    50% output power98
    25% output power52

    Optional-addtional parts :800 kw diesel generator price


    EngineFuel SystemCooling systemExhaust system

    Coolant Heater

    Lube oil heater

    Electronic governor

    Engine oil temperature

    External Tank

    Water Separator

    50-60 Radiator,

    Remote radiator

    Cooling tower

    Heavy Duty air filter

    Silencer Enclosures

    AlternatorControl SystemOthersVoltage Connections

    Anti Condensation

    Heater

    Permanent

    Magnet Generator-PMG

    Drop CT-for paralleling

    Remote Control Panel

    Auto Transfer Switch

    ATS-Control Panel

    Paralleling System

    Electricity Output Cabinet

    Rainproof Type

    Soundproof Type

    Containerized Type

    Trailer Type

    Spare Parts

    480/277V

    440/254V

    416/240V

    400/230V

    380/220V

    240/139V

    220/12 V

    208/120V

    High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available
