144KW Power Engine UK 1106A-70TG1 With Electric Diesel Generator 180KVA Generator Set

    Buy cheap 144KW Power Engine UK 1106A-70TG1 With Electric Diesel Generator 180KVA Generator Set from wholesalers

    Buy cheap 144KW Power Engine UK 1106A-70TG1 With Electric Diesel Generator 180KVA Generator Set from wholesalers
    • Buy cheap 144KW Power Engine UK 1106A-70TG1 With Electric Diesel Generator 180KVA Generator Set from wholesalers

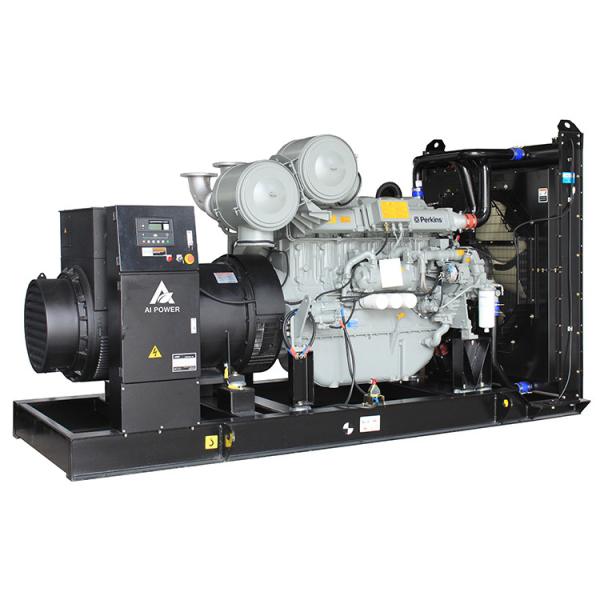

    144KW Power Engine UK 1106A-70TG1 With Electric Diesel Generator 180KVA Generator Set

    Ask Lasest Price
    Brand Name : Ai Power
    Model Number : AP200
    Certification : CE, ISO9001
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 200 units per month
    Delivery Time : 30 to 35 days
    • Product Details
    • Company Profile

    144KW Power Engine UK 1106A-70TG1 With Electric Diesel Generator 180KVA Generator Set


    144KW Power Engine UK 1106A-70TG1 With Electric Diesel Generator 180KVA Generator Set​


    144KW Power Engine UK 1106A-70TG1 With Electric Diesel Generator 180KVA Generator Set


    Product characteristics:

    1. Our cooperate with famous diesel engine -Powered by famous Perkins engines.
    2. Equipped with famous Brushless alternator - Optional Stamford, Leroy Somer, Marathon, Meccalte.
    3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
    4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen, ComAp,

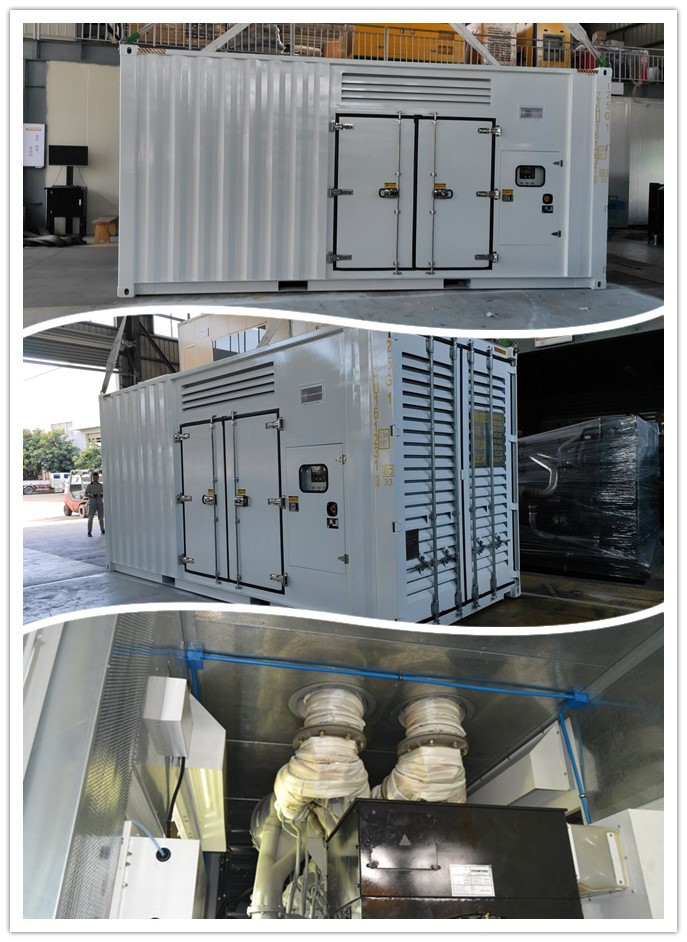

    5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
    6. Generator equipped with 24V DC battery with charger, battery connects wire.
    7. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
    8. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance



    Generator Specifications:


    GENERAL ENGINE DATA
    Engine manufacturePerkins Engines Company Limited
    Engine brandPerkins
    Engine model1106A-70TAG3
    Engine speed (rpm)1500
    Prime powerStandby power
    Gross engine power (kWb)164180
    Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)144160
    Cylinders6-cylinder, vertical in line
    Cycle4 stroke
    Induction systemTurbocharged, air charge cooled
    ICombustion systemDirecct injection
    Compression ratio16.1:1
    Bore * Stroke (mm)105*135
    Cubic capacity (Litre)7.01
    FUEL SYSTEM
    InjectorMechanical
    Fuel pumpDP210G
    Fuel Consumption (litre/hour)
    110%44.6
    Prime power41.6
    75%31.8
    50%20.1
    25%10.8
    COOLING SYSTEM
    Total system capacity(litre)21
    Engine capacity(litre)9.5
    Max. top tank temperature (°C)110
    Thermostat operating range (°C)82-93
    Shutdown switch setting(°C)118
    LUBRICATION SYSTEM
    Max. total system oil capacity(litre)16.5
    Min. oil capacity in sump(litre)12.4
    Max. oil capacity in sump(litre)14.9
    Oil temperature (in sump) normal continuous operation(°C)125
    Pressure at max. speed(kPa)340
    Oil consumption at full load(% of fuel)<0.1
    INDUCTION SYSTEM
    Maximum air intake restriction of engine (kPa)
    Clean filter2
    Dirty filter3
    Combustion air flow(standby/prime power) (m3/min)13.87/13.1
    EXHAUST SYSTEM
    Back pressure for total system (kPa)6
    Exhaust gas temp. after turbo(standby/prime power)(°C)538
    Exhaust gas flow (standby/prime power) (m3/min)33.85/31.55
    ELECTRICAL SYSTEM
    Alternator voltage (volts)12
    Alternator output (amps)85
    Stater motor type (volts)12
    Starter motor power (kw)4.2

    144KW Power Engine UK 1106A-70TG1 With Electric Diesel Generator 180KVA Generator Set


    144KW Power Engine UK 1106A-70TG1 With Electric Diesel Generator 180KVA Generator Set


    144KW Power Engine UK 1106A-70TG1 With Electric Diesel Generator 180KVA Generator Set


    144KW Power Engine UK 1106A-70TG1 With Electric Diesel Generator 180KVA Generator Set


    144KW Power Engine UK 1106A-70TG1 With Electric Diesel Generator 180KVA Generator Set144KW Power Engine UK 1106A-70TG1 With Electric Diesel Generator 180KVA Generator Set

    Detection and protection function

    • Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt, Low water level,Three failed to start alarm

    • Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit

    Optional features

    • RS485 (DSE7320)RS485(DSE7320)

    • Fuel level display and low-alarm

    • Water level low-alarm

    • Water Pre- heating in low temperature

    • ATS

    • Automatic parallel (DSE6120 / DSE7320)

    • Other self-definition functions

    • big power 1mva silenced diesel generator set price


    FAQ

    1. What's our power capacity range of diesel generators?

    Answer: We can offer the range from 10kva~3000kva.


    2.What's your warranty?

    Answer: One year or 1000 hours, which one comes first.


    3.Does your generator have global warranty?

    Answer, Yes. Gensets powered by USA famous engine, with UK famous engine, Doosan, Volvo, Iveco have the global warranty service. And the

    alternators Stamford, Leroy somer, Meccalte, Marathon also have the global warranty service.


    4.Can you use our logo?
    Yes, we can use customer's logo instead of ours.
