Electric Power Perkins Diesel Generator Set 2000kva 1600kw With UK Engine 4016TAG2A

Electric Power Perkins Diesel Generator 2000kva 1600kw Generator Set With UK Engine 4016TAG2A

Product Description

Electric Power Perkins Diesel Generator Set 2000kva 1600kw With UK Engine 4016TAG2A

Electric Power Diesel Generator 2000kva 1600kw Generator Set With UK Engine 4016TAG2A

Engine
GENERAL ENGINE DATA
Engine manufacture	Perkins Engines Company Limited
Engine brand	Perkins
Engine model	4016TAG2A
Engine speed (rpm)	1500
	Prime power
Gross engine power (kWb)	1766
Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)	1646
Cylinders	16-cylinder, 60° Vee
Cycle	4 stroke
Induction system	Turbocharged
Combustion system	Direct injection
Compression ratio	13:1 nominal
Bore * Stroke (mm)	160 * 190
Cubic capacity (Litre)	61.123
FUEL SYSTEM
Injection system	Direct
Governor type	electronic
Fuel Consumption (litre/hour)
Standby	488
Prime	447
Baseload	349
75% output power	326
50% output power	212
25% output power	112
COOLING SYSTEM
Total coolant capacity: Jacket Water (Litres)
engine only	95
engine and radiator	316
Thermostat operating range (°C)	71-85
Shutdown switch setting (°C)	96
LUBRICATION SYSTEM
Maximum sump capacity (liter)	214
Minimum sump capacity (liter)	147
Oil temperature (in rail)-Max. continuous operations (°C)	105
Oil pressure Minimum @80°C (kPa)	340
Shutdown switch - pressure setting (kPa)	193 (falling)
INDUCTION SYSTEM
Maximum air intake restriction of engine (mmH2O)
Clean filter	127
Dirty filter	380
Combustion air flow(standby/prime power) (m3/min)	145 / 137
EXHAUST SYSTEM
Back pressure for total system (mmH2O)	673
Exhaust gas temp. after turbo(standby/prime power)(°C)	493
Exhaust gas flow (standby/prime power) (m3/min	393
ELECTRICAL SYSTEM
Alternator voltage (volts)	24
Alternator output (amps)	40
Stater motor type (volts)	24
Starter motor power(kW)	16.4

ALTERNATOR
Alternator manufacturer	Leroy-somer Electro-technique (Fuzhou) Company Ltd.
Alternator brand	Leroysomer
Alternator model	LSA52.3S6
Control system	AREP
A.V.R.	Included
Voltage regulation	±1.0%
Insulation system	Class H
Protection	IP23
Rated power factor	0.8
Winding pitch	Two thirds
Winding leads	6
Frequency (Hz)	50
Voltage (V)	400
Phase	3
Output ratings (kVA/kW)
----------------Cont.H-40°C	2000/1600
----------------Standby-27°C	2255/1804
THF	<2%
TIF	<50
Max. overspeed (Rev/Min)	2250
Bearing	Single

Supply Scope

• Engine include air, fuel, oil filters, starting motor and charge alternator etc.
 • Brushless AC alternator, single bearing, flange connection, with AVR
 • Radiator with engine driven fan mounted on skid
 • Channel steel base frame, <550KW base 8hrs mounted fuel tank as standard
 • Anti-vibration pads between engine/alternator and base frame
 • Circuit breaker 3P as standard, 4P optional
 • Auto control panel
 • Start battery with connecting cable and floating battery charger
 • Flexbile pipe, exhaust elbow, industrial silencer etc.
 • Standard tools kit
 • Electric drawing, test report ,operation & maintaince manual of generator etc.
 •Optional soundproof/Container canopy, ATS cabinet, remote control panel, synchronization panel, movable trailers, heat exchanger, remote horizontal water tank system, external fuel tank, etc

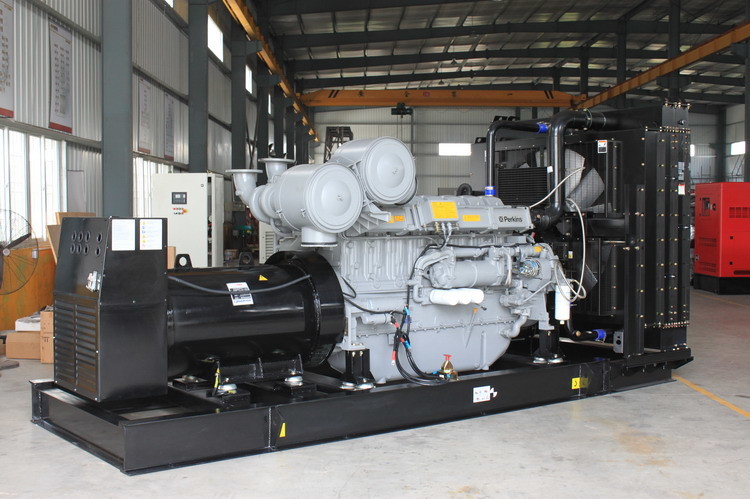

Product Show

Electric Power Perkins Diesel Generator Set 2000kva 1600kw With UK Engine 4016TAG2A

Products Details

Electric Power Perkins Diesel Generator Set 2000kva 1600kw With UK Engine 4016TAG2A

Assembled by diesel engine and high quality branded alternator.
Radiator and fan with safety guard, or heat exchanger.
Heavy duty steel base frame with great capacity fuel tank for options.
Vibration damping supports between engine/alternator and base frame.
Heavy duty industrial type exhaust silencer with flexible bellow.
High capacity sealed lead acid battery with battery cable.
Intelligent control panel, Deepsea or Comap brand for options.

Air inlet cooling system
Stainless door lock
Fuel cap lock
Tow holes
engine
radiator
insulation and soundproof materials
maintenance door

①Speed controller
 ②mains battery charger
 ③protection relay
 ④wiring connection terminals
 ⑤MCCB using for protection
 ⑥Deepsea controller

Low oil Pressure
High water temperature
High voltage and low voltage
Over current
Overspeed
Volt adjuster and frequency adjuster.
Emergency stop
Low fuel alarm and shutdown
Low coolant alarm and shutdown

Our factory

AI POWER is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
 Besides generators, we also product the refere product incldue lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switchgear.
