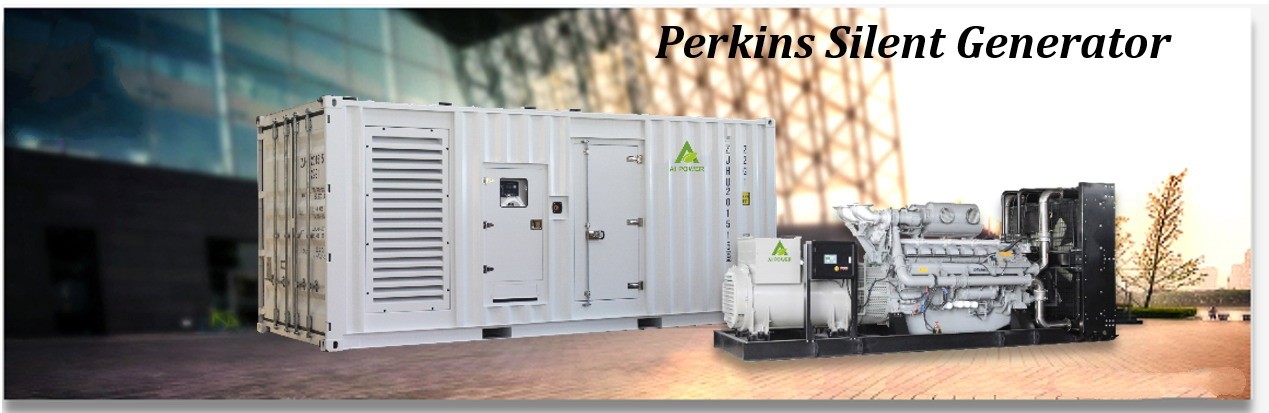

Prime Power 1600kva 1280kw Perkins Diesel Generator Set Soundproof With UK Engine 4012-46TAG3A

    Buy cheap Prime Power 1600kva 1280kw Perkins Diesel Generator Set Soundproof With UK Engine 4012-46TAG3A from wholesalers

    Buy cheap Prime Power 1600kva 1280kw Perkins Diesel Generator Set Soundproof With UK Engine 4012-46TAG3A from wholesalers
    • Buy cheap Prime Power 1600kva 1280kw Perkins Diesel Generator Set Soundproof With UK Engine 4012-46TAG3A from wholesalers
    • Buy cheap Prime Power 1600kva 1280kw Perkins Diesel Generator Set Soundproof With UK Engine 4012-46TAG3A from wholesalers

    Prime Power 1600kva 1280kw Perkins Diesel Generator Set Soundproof With UK Engine 4012-46TAG3A

    Ask Lasest Price
    Brand Name : Ai Power
    Model Number : A1280
    Certification : CE, ISO9001, SONCAP
    Price : USD170000
    Payment Terms : L/C, T/T, Western Union,
    Supply Ability : 10 units per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Prime Power 1600kva 1280kw Perkins Diesel Generator Set Soundproof With UK Engine 4012-46TAG3A

    Product Description

    Prime Power 1600kva 1280kw Perkins Diesel Generator Set Soundproof With UK Engine 4012-46TAG3A

    Prime Power 1600kva 1280kw Perkins Diesel Generator Soundproof Generator Set With UK Engine 4012-46TAG3A

    Engine
    GENERAL ENGINE DATA
    Engine manufacture
    Perkins Engines Company Limited
    Engine brand
    Perkins
    Engine model
    4012-46TAG3A
    Engine speed (rpm)
    1500
    Prime power
    Gross engine power (kWb)
    1500
    Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)
    1364
    Cylinders
    12-cylinder, 60° Vee
    Cycle
    4 stroke
    Induction system
    Turbocharged
    Combustion system
    Direct injection
    Compression ratio
    13:01
    Bore * Stroke (mm)
    160 * 190
    Cubic capacity (Litre)
    45.842
    FUEL SYSTEM
    Injection system
    Direct
    Governor type
    electronic
    Fuel Consumption (litre/hour)
    Standby
    405
    Prime
    370
    Baseload
    310
    75% output power
    275
    50% output power
    210
    COOLING SYSTEM
    Total coolant capacity: Jacket Water (Litres)
    engine only
    73
    Temperate cooling (engine and radiator)
    207
    Tropical cooling (engine and radiator)
    210
    Thermostat operating range (°C)
    71-85
    Shutdown switch setting (°C)
    101
    LUBRICATION SYSTEM
    Total system capacity (liter)
    177
    Maximum sump capacity (liter)
    157.5
    Minimum sump capacity (liter)
    115
    Oil temperature at normal operating conditions (°C)
    95
    Oil pressure at rated speed (kPa)
    400
    Oil pressure Minimum @80°C (kPa)
    340
    Shutdown switch - pressure setting (kPa)
    193 (falling)
    INDUCTION SYSTEM
    Maximum air intake restriction of engine (kPa)
    Clean filter
    2
    Dirty filter
    4
    Combustion air flow(standby/prime power) (m3/min)
    135 / 125
    EXHAUST SYSTEM
    Back pressure for total system (kPa)
    5
    Exhaust gas temp. after turbo(standby/prime power)(°C)
    480
    Exhaust gas flow (standby/prime power) (m3/min
    350
    ELECTRICAL SYSTEM
    Alternator voltage (volts)
    24
    Alternator output (amps)
    40
    Stater motor type (volts)
    24
    Starter motor power (kw)
    16.4
    ALTERNATOR
    Alternator manufacturer
    Leroy-somer Electro-technique (Fuzhou) Company Ltd.
    Alternator brand
    Leroysomer
    Alternator model
    LSA50.2VL10
    Control system
    AREP
    A.V.R.
    Included
    Voltage regulation
    ±1.0%
    Insulation system
    Class H
    Protection
    IP23
    Rated power factor
    0.8
    Winding pitch
    Two thirds
    Winding leads
    6
    Frequency (Hz)
    50
    Voltage (V)
    400
    Phase
    3
    Output ratings (kVA/kW)
    ----------------Cont.H-40°C
    1640/1312
    ----------------Standby-27°C
    1800/1440
    THF
    <2%
    TIF
    <50
    Max. overspeed (Rev/Min)
    2250
    Bearing
    Single

    Diesel Generator Supply Scope

    • UK Per kins diesel Engine include air, fuel, oil filters, starting motor and charge alternator etc.
    • Brushless AC alternator, single bearing, flange connection, with AVR
    • Radiator with engine driven fan mounted on skid
    • Channel steel base frame, <550KW base 8hrs mounted fuel tank as standard
    • Anti-vibration pads between engine/alternator and base frame
    • Circuit breaker 3P as standard, 4P optional
    • Auto control panel
    • Start battery with connecting cable and floating battery charger
    • Flexible pipe, exhaust elbow, industrial silencer etc.
    • Standard tools kit
    • Electric drawing, test report ,operation & maintaince manual of generator etc.
    •Optional soundproof/Container canopy, ATS cabinet, remote control panel, synchronization panel, movable trailers, heat exchanger, remote horizontal water tank system, external fuel tank, etc

    Products Show

    Prime Power 1600kva 1280kw Perkins Diesel Generator Set Soundproof With UK Engine 4012-46TAG3APrime Power 1600kva 1280kw Perkins Diesel Generator Set Soundproof With UK Engine 4012-46TAG3A

    Prime Power 1600kva 1280kw Perkins Diesel Generator Set Soundproof With UK Engine 4012-46TAG3A

    Product Details

    Prime Power 1600kva 1280kw Perkins Diesel Generator Set Soundproof With UK Engine 4012-46TAG3A

    Famous brand engine couple with high quality alternator
    Large size cooling radiator
    Heavy duty steel base frame
    Strong anti-vibration mat
    Standard free maintenance battery
    AC alternator for battery charger
    Heavy-duty air filter, oil filter, water filter
    Famous brand controller and breaker
    Optional fuel tank, silent canopy, ATS, synchronization panels.

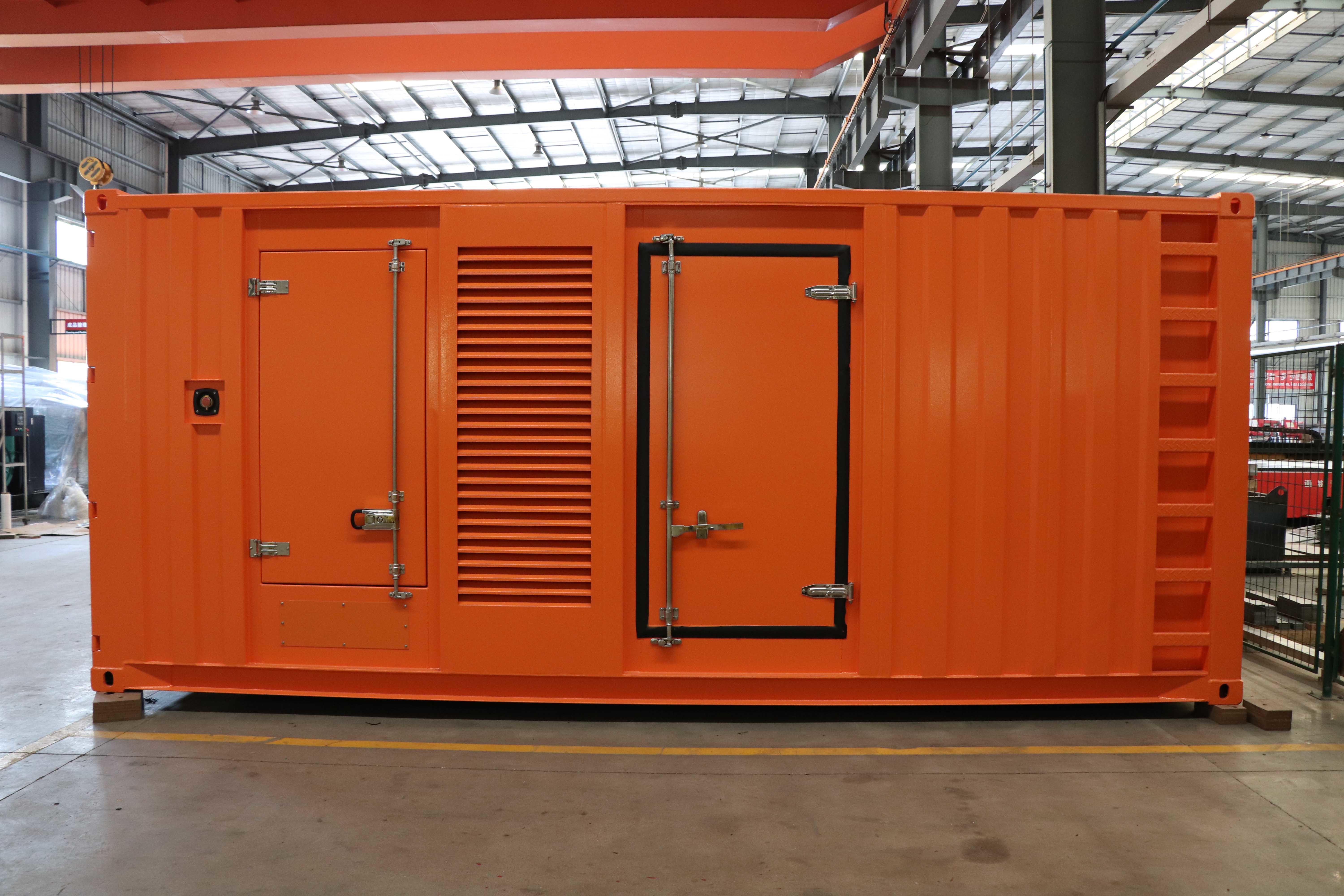

    Prime Power 1600kva 1280kw Perkins Diesel Generator Set Soundproof With UK Engine 4012-46TAG3A

    More than 2mm thick steel to make the canopy.
    High quality paint materials and strict powder paint processing.
    large-scale impedance combined type silencer effectively reducing noise of the generator.
    Stainless steel door locks and hinges and 180° revolvable and disassemble door for easy maintenance.
    High quality soundproof and insulation materials could efficiently reduce noise.
    Transparent viewing window make the control panel clear at a glance.
    Lifting ear is mounted in the base frame for easy pull.
    Elegant appearance and reliable quality.
    From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.
    Control panel
    ①Speed controller
    ②mains battery charger
    ③protection relay
    ④wiring connection terminals
    ⑤MCCB using for protection
    ⑥Deepsea controller
    Protection function
    1. Low oil Pressure
    2. High water temperature
    3. High voltage and low voltage
    4. Over current
    5. Overspeed
    6. Volt adjuster and frequency adjuster.
    7. Emergency stop
    8. Low fuel alarm and shutdown
    9. Low coolant alarm and shutdown

    Prime Power 1600kva 1280kw Perkins Diesel Generator Set Soundproof With UK Engine 4012-46TAG3APrime Power 1600kva 1280kw Perkins Diesel Generator Set Soundproof With UK Engine 4012-46TAG3APrime Power 1600kva 1280kw Perkins Diesel Generator Set Soundproof With UK Engine 4012-46TAG3A
