    4BTA3.9-G11 70DB Automatic Silent Generator Set Cummins 120A

    Ask Lasest Price
    Brand Name : Ai Power
    Model Number : AC88
    Certification : CE, ISO
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 200 units per month
    Delivery Time : 25 to 35 days
    • Product Details
    • Company Profile

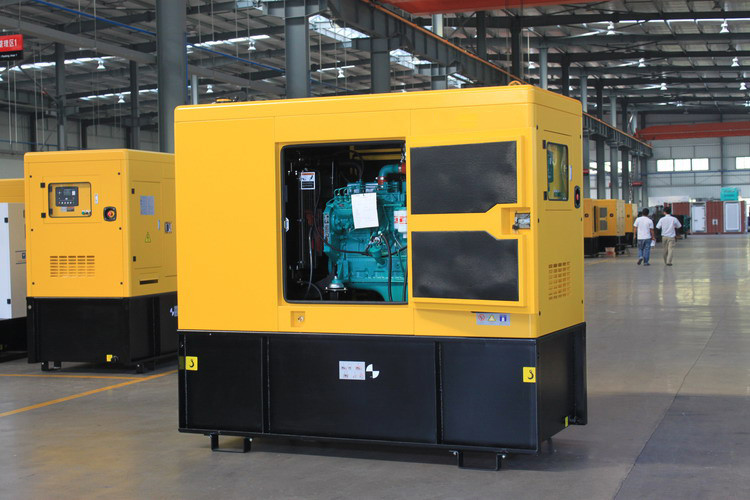

    4BTA3.9-G11 70DB Automatic Silent Generator Set Cummins 120A

    Powered By Cummins 4BTA3.9-G11 Engine Silent 70DB 64kw Diesel Generator Set

    AI power USA series generator set adopts USA engine as the power source. it’s a global power leader who is devoted to the engine R&D and manufacturer since 1919 in Columbus, now it has become the largest engine manufacturer in the world providing more than 160 countries sales and aftersales service. Ai Power AC series generator has adopted DCEC and CCEC engine include 4B, 6B, 6C, 6L, NTA, MTA, KTA series etc.


    Engine Specifications:


    Engine Model

    4BTA3.9-G11

    Number of Cylinders

    4cylinders in line

    Cycle

    4 stroke

    Air intake system

    Turbocharged

    Bore×Stroke

    102mm x120mm

    Displacement

    3.9L

    Compression ratio

    17.3:1

    Prime Power/Speed

    64KW / 1500rpm

    Standby Power/Speed

    70.4KW / 1500rpm

    Speed Governor

    Electrical

    Cooling System

    Forced water cooling cycle

    Steady speed droop

    ≤1%

    Total lubrication system capacity

    10.9L

    Coolant capacity (engine only)

    8.3L

    Fuel Consumption at 100% Load

    17.6L/h

    Starter Motor

    DC24V

    Alternator

    DC24V


    Alternator spec

    Alternator Model

    UCI224G

    Prime power

    80KVA

    Frequency/speed

    50HZ/1500rpm

    Exciter type

    Brushless

    Power factor

    0.8

    Voltage adjust range

    ≥5%

    Voltage regulation NL-FL

    ≤±0.5%

    Insulation Grade

    H

    Protection Grade

    IP23

    Phase

    Three phases


    Control panel spec

    Model

    DeepSea/SmartGen/ComAp

    The control module gives digital readouts of:

    Generator voltage;

    Output frequency;

    Engine speed;

    Battery voltage;

    Engine hours run.

    The control module has indicators for failure

    information:

    Overspeed/underspeed,

    Emergency stop

    Low oil pressure;

    High water temperature

    Failure to start

    Battery charger failure

    Automatic shutdown occurs under:

    Low engine oil pressure;

    High engine water temperature;

    Overspeed/underspeed;

    Failure to start after three attempts.

    DeepSea

    DSE6120, DSE7320, DSE8610, DSE8810

    SmartGen

    HGM6110N, HGM6120N, HGM9510

    ComAp

    MRS10, MRS16, IC-NT


    4BTA3.9-G11 70DB Automatic Silent Generator Set Cummins 120A4BTA3.9-G11 70DB Automatic Silent Generator Set Cummins 120A

    Product Details
    4BTA3.9-G11 70DB Automatic Silent Generator Set Cummins 120A4BTA3.9-G11 70DB Automatic Silent Generator Set Cummins 120A4BTA3.9-G11 70DB Automatic Silent Generator Set Cummins 120A4BTA3.9-G11 70DB Automatic Silent Generator Set Cummins 120A


    Meet the strong, silent type. Cummins Super Quiet generators offer impressive features, plus a totally enclosed body for noticeably quieter performance. Combining quality, portability, reliability, and convenience, a Super Quiet generator is the smart choice whenever quieter is better.Our company only produce water cooled generator, from 10kva to 3000kva, we have high quality Japan Kubota, Yanmar, UK Perkins, Cummins and some Chinese local brand etc diesel generator for your choice, The alternator we adopt Leroysomer, Stamford, Marathon etc, all of our products have CE and ISO9001 certificate.

    FAQ


    1. What is your warranty period?
    A: Our warranty period is 1 year or 1000 running hours, whichever comes first (Except the damageable spare parts of genset caused by incorrect man-made operation).
    2. Does your generator have global warranty?
    A: Yes. Gensets powered by USA famous engine, with UK famous engine, Volvo, Iveco have the global warranty service. And the alternators Stamford, Leroysomer, Meccalte, Marathon also have the global warranty service.
    3. What is your payment terms?
    A: T/T 30% advance payment, the balance 70% shall be paid before shipment, L/C at sight.
    4. Can the generators be customized?
    A: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, industrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
    5. Can you use our logo?
    A: Yes. For mass orders, we can use customer's logo instead of ours.
