Super Silent Emergency Electric 1500RPM Diesel Generator set With
Cummins QSZ13-G3
All aspects of generator set design, manufacturing and service have
been brought together in one company. All the major components –
the engine, alternator, control systems and containers – are
manufactured and built by Cummins. This integrated approach means
each element of a generator set is matched to work in harmony from
the start.
Regardless of the power system architecture required to meet your
market or application needs Cummins provides a superior combination
of solution design expertise, integrated equipment and
communication software as well as ongoing operation and maintenance
services to help you maintain a resilient operation at your site.
Product Description
Engine Model | QSZ13-G3 |
Engine Manufacturer | Cummins (China Dongfeng) |
Cylinder quantity | 6 |
Cylinder Arrangement | Not available |
Cycle | Not available |
Aspiration | Turbo-charge |
Bore x Stroke (mm x mm) | 130×163 |
Displacement | 13L |
Compression Ratio | 17:1 |
Prime power / Speed (KW/RPM) | 400/1500 |
Standby power/ Speed (KW/RPM) | 440/1500 |
Speed governor | MCRS |
Piston Speed | 8.15m/s |
Friction Energy Output | 31kw |
Total Lubrication System Capacity (L) | 45.42 |
Coolant Capacity (L) | 23.1 |
Fuel Consumption at 100% load (g/KWh) | 199 at 1500rpm |
Starter motor | DC24V |
Alternator | DC24V |
Low idle | 700rpm |
Alternator Specifications
Alternator model | HCI544C |
Alternator manufacturer | STAMFORD |
Exciter type | Single bearing, Brushless, Self-excited |
Rated output prime power | 500 KVA |
Rated speed | 1500 rpm |
Rated frequency | 50Hz |
Number of phase | 3 |
Rated voltage | 400V (Available with custom requirements) |
Power factor | 0.8 |
Voltage regulation NL-FL | ≤±1% |
Insulation grade | H |
Protection grade | IP23 |
| Model | MRS10/DSE6020/HGM6110N... |
The control module gives digital readouts of: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts. | |
Product Details
Silent Performance Features:
- ● More than 2mm thick steel to make the canopy.
- ● High quality paint materials and strict powder paint processing.

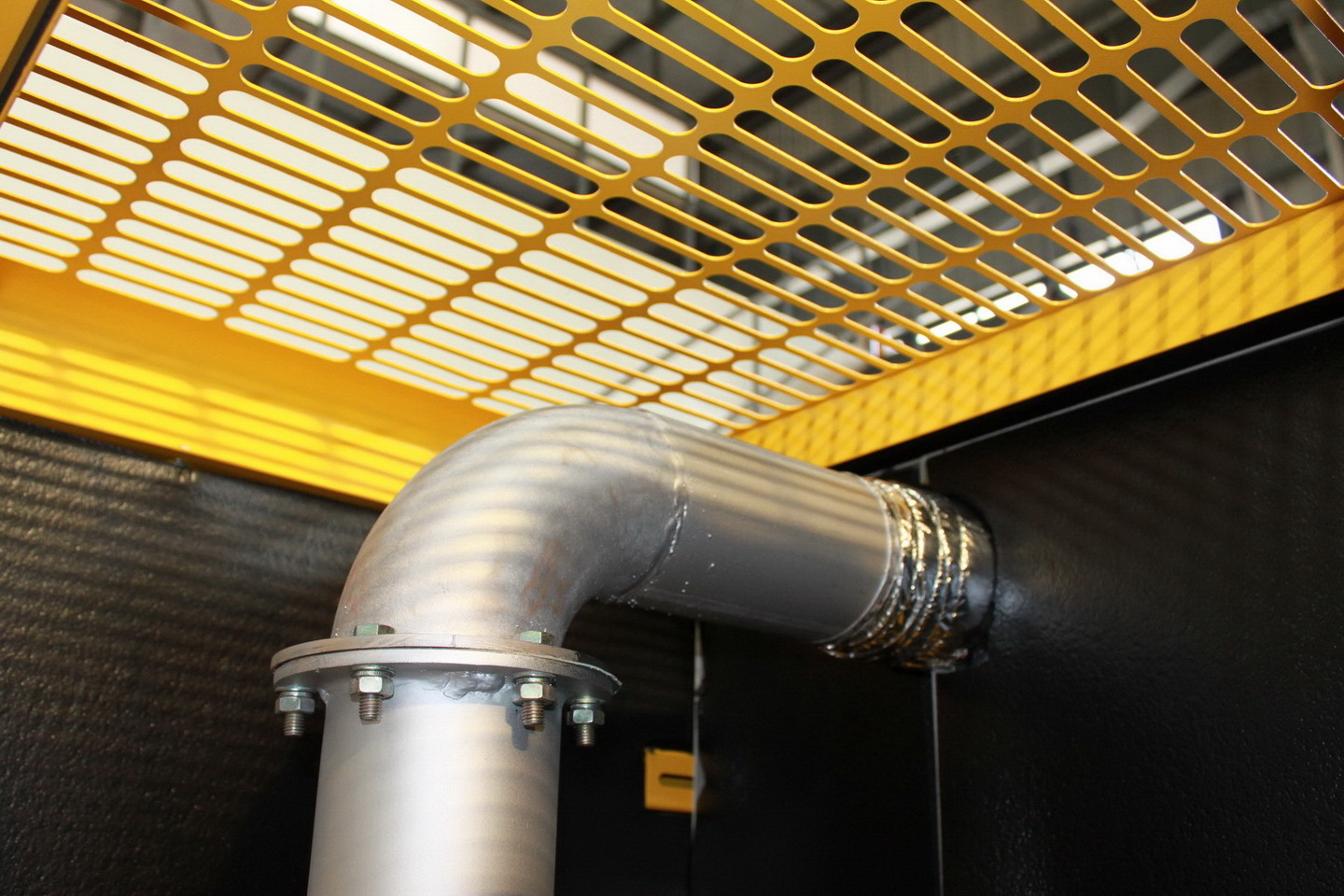

- ● large-scale impedance combined type silencer effectively reducing
noise of the generator.
- ● Stainless steel door locks and hinges and 180° revolvable and
disassemble door for easy maintenance.
- ● High quality soundproof and insulation materials could
efficiently reduce noise.
- ● Transparent viewing window make the control panel clear at a
glance.
- ● Lifting ear is mounted in the base frame for easy pull.
- ● Elegant appearance and reliable quality.
- ● From 10kva to 700kva we use normal silent canopy, more than
700kva we are using containerized canopy.
- ● ISO standard 20’, 40’ and 40HQ sea container canopy for options.
- ● Standard sea container canopy is easier for shipping.
1. What is your warranty period?
A:Our warranty period is 1 year or 1000 running hours, whichever
comes first (Except the damageable spare parts of genset caused by
incorrect man-made operation).
2. Does your generator have global warranty?
A:Yes. Gensets powered by USA famous engine, with UK famous engine,
Volvo, Iveco have the global warranty service. And the alternators
Stamford, Leroysomer, Meccalte, Marathon also have the global
warranty service.
3. What is your payment terms?
A:T/T 30% advance payment, the balance 70% shall be paid before
shipment, L/C at sight.
4. Can the generators be customized?
A: Yes. Our generators can be customized depending on customer's
detailed requirements. We can supply generators for rental
business, home use, industrial projects, army projects, power
station, etc. The generators we supply is suitable for indoor and
outdoor use, lower and high temperature environment.
5. Can you use our logo?
A: Yes. For mass orders, we can use customer's logo instead of
ours.
