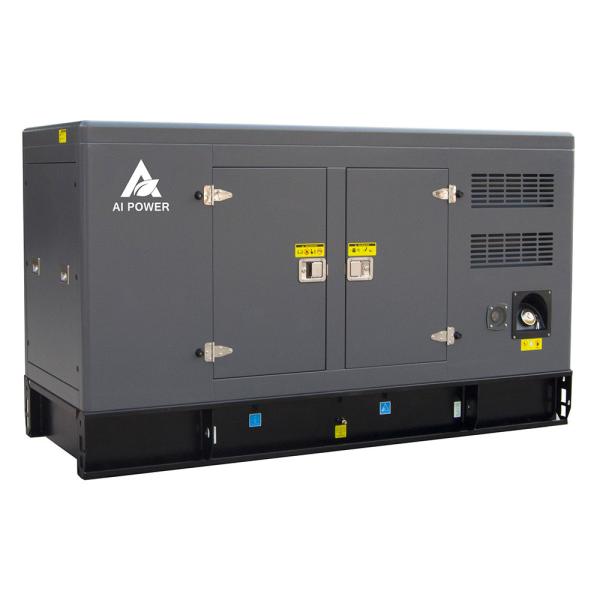

Powered By Cummins Super Silent 125kVA 6 Cylinders Cummins Diesel
Generator set
Ai Power products adopts internationally and domestically reputed
high-quality engines and alternators including DCEC, CCEC engine,
UK famous engine, MTU from Germany, Doosan from South Korea,
Stamford, LeroySomer, and Marathon for our industrial diesel
generator sets, marine generator, movable generator, lighting
towers, generator spare parts and switchgear, power transformers.
Those products are featured by personalization, intelligence,
environmental protection and high quality. They are widely used in
buildings, hospitals, banks, mine, ports, construction, data
center, power station and high voltage projects.
Product Description
| Engine Model | 6BTA5.9-G2 |
| Engine manufacturer | CUMMINS |
| Number of Cylinders | 6 cylinders |
| Cylinders arrangement | Vertical in line |
| Cycle | 4 stroke |
| Aspiration | Turbocharged and after water cooled |
| Bore×Stroke | 102mm x120mm |
| Displacement | 5.9L |
| Compression ratio | 17.5:1 |
| Prime Power/Speed | 106kw/1500rpm |
| Standby Power/Speed | 116kw/1500rpm |
| Speed Governor | electrical |
| Cooling System | Forced water cooling cycle |
| Steady speed droop | ≤1% |
| Total lubrication system capacity | 16.4L |
| Coolant capacity (engine only) | 9.1L |
| Fuel Consumption at 100% Load | 211 g/kw.h |
| Starter Motor | DC24V |
Product Overviews
Ai Power silent generator is featured by its elegant design, lower
noise level, high quality soundproof materials, thick steel metal
plate. Its rainproof and soundproof function has been proved in the
last 16 years experiences. It adopts international famous brand
paint and skilled technicians to make the canopy powder paint. It
has full transparent view windows for monitoring generator
parameters.
Silent Performance Features:
● More than 2mm thick steel to make the canopy.
● High quality paint materials and strict powder paint processing.
● large-scale impedance combined type silencer effectively reducing
noise of the generator.
● Stainless steel door locks and hinges and 180° revolvable and
disassemble door for easy maintenance.
● High quality soundproof and insulation materials could
efficiently reduce noise.
● Transparent viewing window make the control panel clear at a
glance.
● Lifting ear is mounted in the base frame for easy pull.
● Elegant appearance and reliable quality.
● From 10kva to 700kva we use normal silent canopy, more than
700kva we are using containerized canopy.
● ISO standard 20’, 40’ and 40HQ sea container canopy for options.
● Standard sea container canopy is easier for shipping.
Product Details
1.What's our power capacity range of generator?
Answer: We can offer the range from 10kva~3000kva genset, diesel
generator, gas generator, marine generator.
2. Besides power generator, what's your other product?
Answer: We also provide lighting tower, air compressor, ATS,
synchronization system, switchgear, transformer, engine spareparts.
3. What's kind of generator type you produce?
Answer: open generators, silent power generators, super silent
genset, trailer genset, movable electric generator, reefer
generator.
4.What's your warranty?
Answer: One year or 1000 hours, which one comes first.
5.Can you use our logo?
Answer: Yes, we can use customer's logo instead of ours.
6. Can you accept small order?
Answer: Yes, we can accept trial order.
7. What's your delivery time?
Answer: Our normal delivery time is 2 to 4 weeks. But if your order
is some special engine and alternator, the delivery time will be
longer.
