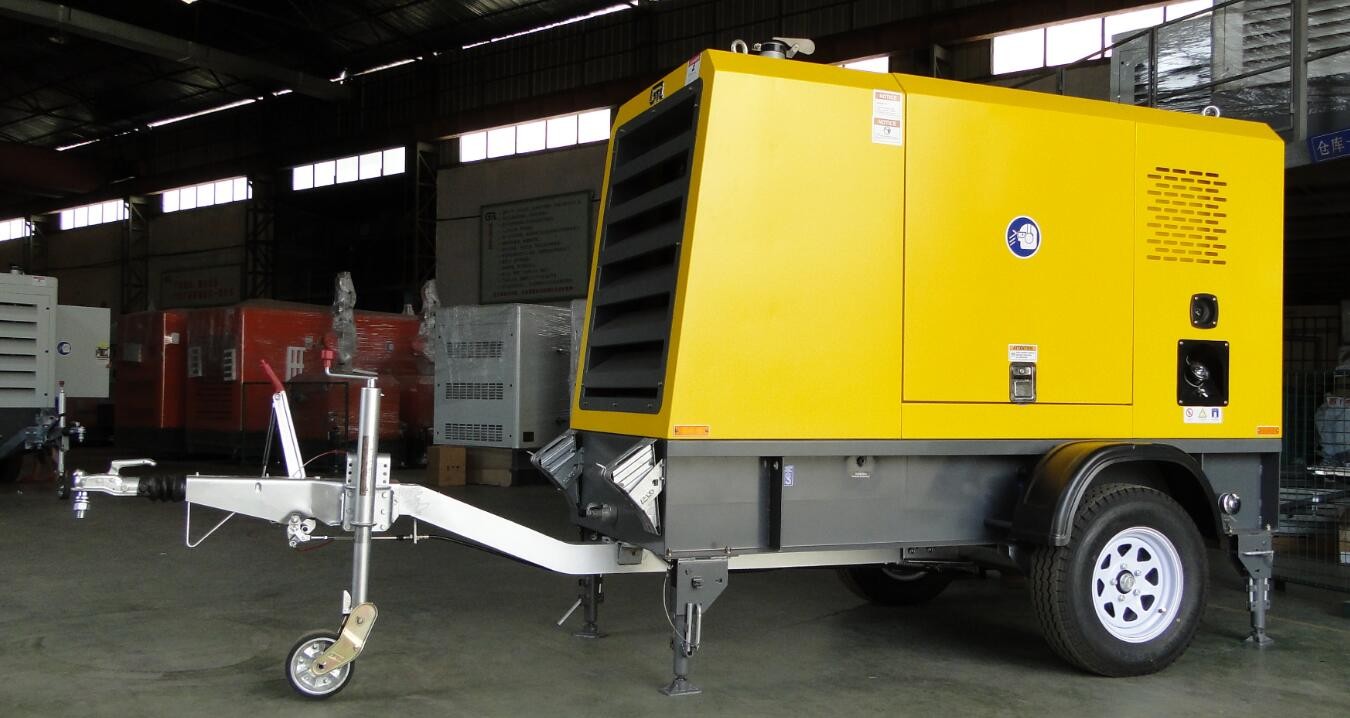

Kubota 15kw 415V Water Cooled Portable Diesel Generator V2203

    Buy cheap Kubota 15kw 415V Water Cooled Portable Diesel Generator V2203 from wholesalers

    Buy cheap Kubota 15kw 415V Water Cooled Portable Diesel Generator V2203 from wholesalers
    • Buy cheap Kubota 15kw 415V Water Cooled Portable Diesel Generator V2203 from wholesalers
    • Buy cheap Kubota 15kw 415V Water Cooled Portable Diesel Generator V2203 from wholesalers

    Kubota 15kw 415V Water Cooled Portable Diesel Generator V2203

    Ask Lasest Price
    Brand Name : Ai Power
    Model Number : AK20
    Certification : CE, ISO
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 200 units per month
    Delivery Time : 25 to 30 days
    • Product Details
    • Company Profile

    Kubota 15kw 415V Water Cooled Portable Diesel Generator V2203

    Super Silent Japanese Brand Water Cooled 15kw Kubota Portable Diesel Generators

    Kubota Engine


    The Kubota V2203 is a vertical, water-cooled, 4-cycle diesel engine with a capacity of 39.9HP at 2800RPM. Featuring a built-in solenoid, low fan position and single side serviceabilty, the Kubota V2203 offers powerful performance, exceptional reliabilty and a long service life to meet almost any application.

    • Kubota was the first manufacturer to receive the certificate for the U.S. CARB ULGE emission regulations for engines under 19 kw in 1993.
    • Every engine shipped from the Kubota factory is hot tested to ensure the engine performs to your expectations.
    • Kubota manufacturing technology enables precision engineered crankcases to maintain high quality throughout production.

    Engine Specifications:



    V2203

    Type

    Water Cooled Vertical Diesel Engine

    Number of Cylinder

    4

    Bore & Stroke

    80.0mm x 92.4mm

    Total Displacement (cc)

    2197

    Combustion System

    E-TVCS

    Intake System

    Naturally Aspirated

    Max Output Net Intermittent kW/rpm (hp/rpm)

    34.3/2800 (46.0/2800)

    Maximum Output Continuous kW/rpm (hp/rpm)

    29.8/2800 (39.9/2800)

    Continuous Output Generator Spec kW/rpm(hp/rpm)

    17.1/1500 (32.0/1500)

    Starting System

    Electric Start

    Housing Options

    SAE #4 - 7 1/2" Housing/Flywheel or Standard Kubota Flywheel /Housing

    Options

    Full Power Pack Options


    Alternator manufacturer

    Xiamen Ai Power Technology Co., Ltd.

    Alternator brand

    AI POWER

    Alternator model

    AI184E

    Control system

    SELF EXCITED

    A.V.R.

    Included

    Voltage regulation

    ±1.0%

    Insulation system

    Class H

    Protection

    IP23

    Rated power factor

    0.8

    Winding pitch

    Two thirds

    Winding leads

    12

    Frequency (Hz)

    50

    Voltage (V)

    400

    Phase

    3

    Output ratings (kVA/kW)


    ----------------Cont.H-40°C

    20/16

    ----------------Standby-27°C

    22.5/18

    THF

    <5%

    TIF

    <50

    Max. overspeed (Rev/Min)

    2250

    Bearing

    Single



    Kubota 15kw 415V Water Cooled Portable Diesel Generator V2203Kubota 15kw 415V Water Cooled Portable Diesel Generator V2203Kubota 15kw 415V Water Cooled Portable Diesel Generator V2203Kubota 15kw 415V Water Cooled Portable Diesel Generator V2203
    Kubota 15kw 415V Water Cooled Portable Diesel Generator V2203Kubota 15kw 415V Water Cooled Portable Diesel Generator V2203


    Features

    • Kubota’s E-TVCS indirect injection system provides high power output and torque backup in a compact package.

    • Half-float valve cover and coated pistons offer lower noise levels than conventional diesel engines and provide reduced transmitted vibrations from the valve area for better noise characteristics.

    • Kubota’s original casting technology protects the engine against heat load of high power density, providing superior endurance and reliabilty.

    • Renowned for its exceptional reliability and long service life.

    • Super glow system for shortening pre-heat time and quicker engine start-up in cold weather.


    Factory Overviews
    Kubota 15kw 415V Water Cooled Portable Diesel Generator V2203Kubota 15kw 415V Water Cooled Portable Diesel Generator V2203

    FAQ

    1.Are you a factory or trading company?

    A: We are a factory.

    2.What is the material of your products?

    A: Iron, Steel, plastic, etc.

    3.How about quality control in your factory?

    A: AI people are always paying great attentions to quality controlling from the beginning to the end.

    4.How about your guarantee?

    A: Our warranty period is 1 year or 1000 running hours, whichever comes first.
