Containeried Type 3 Phase Diesel Generator Set 900kva 720kw With Cummins Or Perkins Engine

    Buy cheap Containeried Type 3 Phase Diesel Generator Set 900kva 720kw With Cummins Or Perkins Engine from wholesalers

    Buy cheap Containeried Type 3 Phase Diesel Generator Set 900kva 720kw With Cummins Or Perkins Engine from wholesalers
    • Buy cheap Containeried Type 3 Phase Diesel Generator Set 900kva 720kw With Cummins Or Perkins Engine from wholesalers
    • Buy cheap Containeried Type 3 Phase Diesel Generator Set 900kva 720kw With Cummins Or Perkins Engine from wholesalers

    Containeried Type 3 Phase Diesel Generator Set 900kva 720kw With Cummins Or Perkins Engine

    Ask Lasest Price
    Brand Name : Ai Power
    Model Number : A900
    Certification : CE, ISO9001, SONCAP
    Price : USD85000-88000
    Payment Terms : L/C, T/T, Western Union,
    Supply Ability : 200 units per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Containeried Type 3 Phase Diesel Generator Set 900kva 720kw With Cummins Or Perkins Engine

    Product Description

    Containeried Type 3 Phase Diesel Generator 900kva 720kw Generator Set With Cummins Or Perkins Engine


    Engine
    GENERAL ENGINE DATA
    Engine manufacturer
    Chongqing Cummins Engine Co., Ltd.
    Engine brand
    Cummins
    Engine model
    KTA38-G2A
    Engine speed (rpm)
    1500
    Engine output(kW)
    Standby power rating
    896
    Prime power rating
    813
    Type
    4-Cycle, 12V Cylinder
    Aspiration
    Turbocharged and aftercooled
    Bore * Stroke (mm)
    159 * 159
    Displacment (litre)
    38
    Compression Ratio
    14.5:1
    FUEL SYSTEM
    Type Injection System
    Cummins PT
    Fuel Consumption (litre/hour)
    100% output power
    196
    75% output power
    153.6
    50% output power
    108.3
    25% output power
    64.2
    EXHAUST SYSTEM
    Maximum Back Pressure (kPa)
    7.8
    Exhaust Gas Temperature (overload/prime power) (°C)
    521 / 507
    Exhaust Gas Flow(overload/prime power) (liter/s)
    2995 / 2759
    ALTERNATOR
    Alternator manufacturer
    Leroy-somer Electro-technique (Fuzhou) Company Ltd.
    Alternator brand
    Leroysomer
    Alternator model
    TAL-A49-D
    Control system
    SHUNT
    A.V.R.
    Included
    Voltage regulation
    ±1.0%
    Insulation system
    Class H
    Protection
    IP23
    Rated power factor
    0.8
    Winding pitch
    Two thirds
    Winding leads
    6
    Frequency (Hz)
    50
    Voltage (V)
    400
    Phase
    3
    Output ratings (kVA/kW)
    ----------------Cont.H-40°C
    910/728
    ----------------Standby-27°C
    1000/800
    THF
    <2%
    TIF
    <50
    Max. overspeed (Rev/Min)
    2250
    Bearing
    Single

    Supply Scope

    • Engine include air, fuel, oil filters, starting motor and charge alternator etc.
    • Brushless AC alternator, single bearing, flange connection, with AVR
    • Radiator with engine driven fan mounted on skid
    • Channel steel base frame, <550KW base 8hrs mounted fuel tank as standard
    • Anti-vibration pads between engine/alternator and base frame
    • Circuit breaker 3P as standard, 4P optional
    • Auto control panel
    • Start battery with connecting cable and floating battery charger
    • Flexbile pipe, exhaust elbow, industrial silencer etc.
    • Standard tools kit
    • Electric drawing, test report ,operation & maintaince manual of generator etc.
    •Optional soundproof/Container canopy, ATS cabinet, remote control panel, synchronization panel, movable trailers, heat exchanger, remote horizontal water tank system, external fuel tank, etc

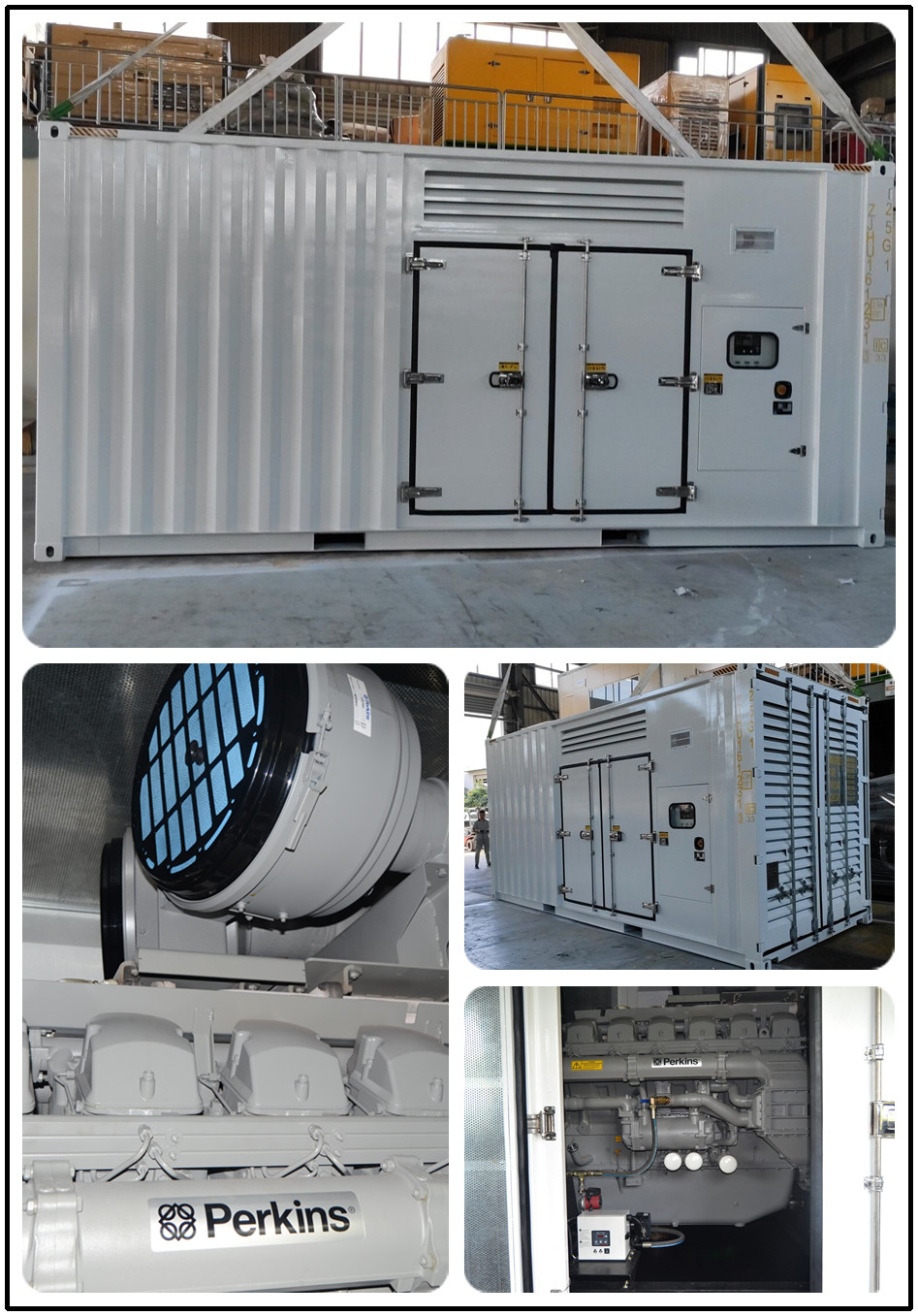

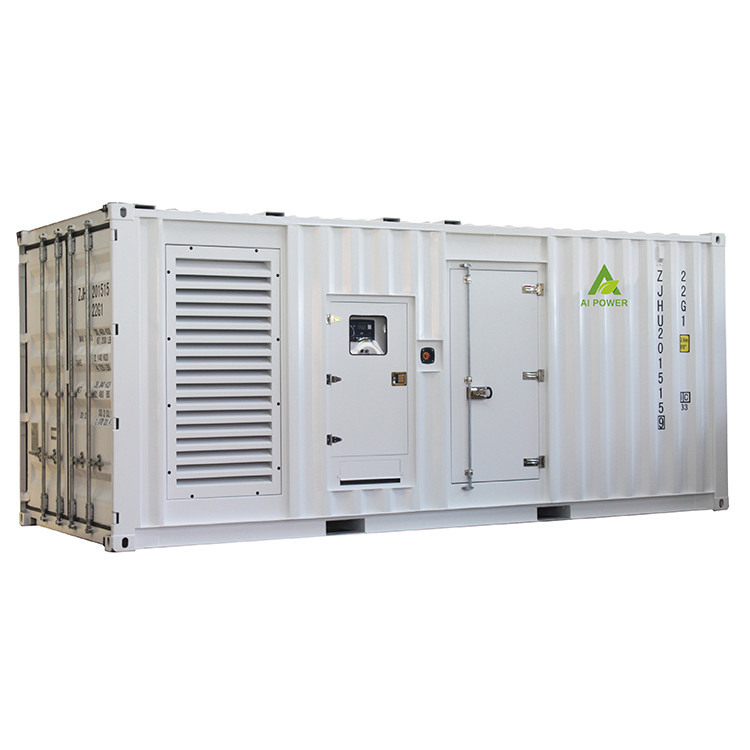

    Product Show

    Containeried Type 3 Phase Diesel Generator Set 900kva 720kw With Cummins Or Perkins Engine

    Containeried Type 3 Phase Diesel Generator Set 900kva 720kw With Cummins Or Perkins Engine

    Containeried Type 3 Phase Diesel Generator Set 900kva 720kw With Cummins Or Perkins Engine

    Our factory

    AI POWER is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
    Besides generators, we also product the refere product incldue lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switchgear.
