Brand Name : | AI POWER |
Model Number : | A20, A30, A40 |
Certification : | ISO, CE |
Payment Terms : | T/T, L/C, Western Union |
Supply Ability : | 200 sets/month |
Delivery Time : | 3-4 weeks |

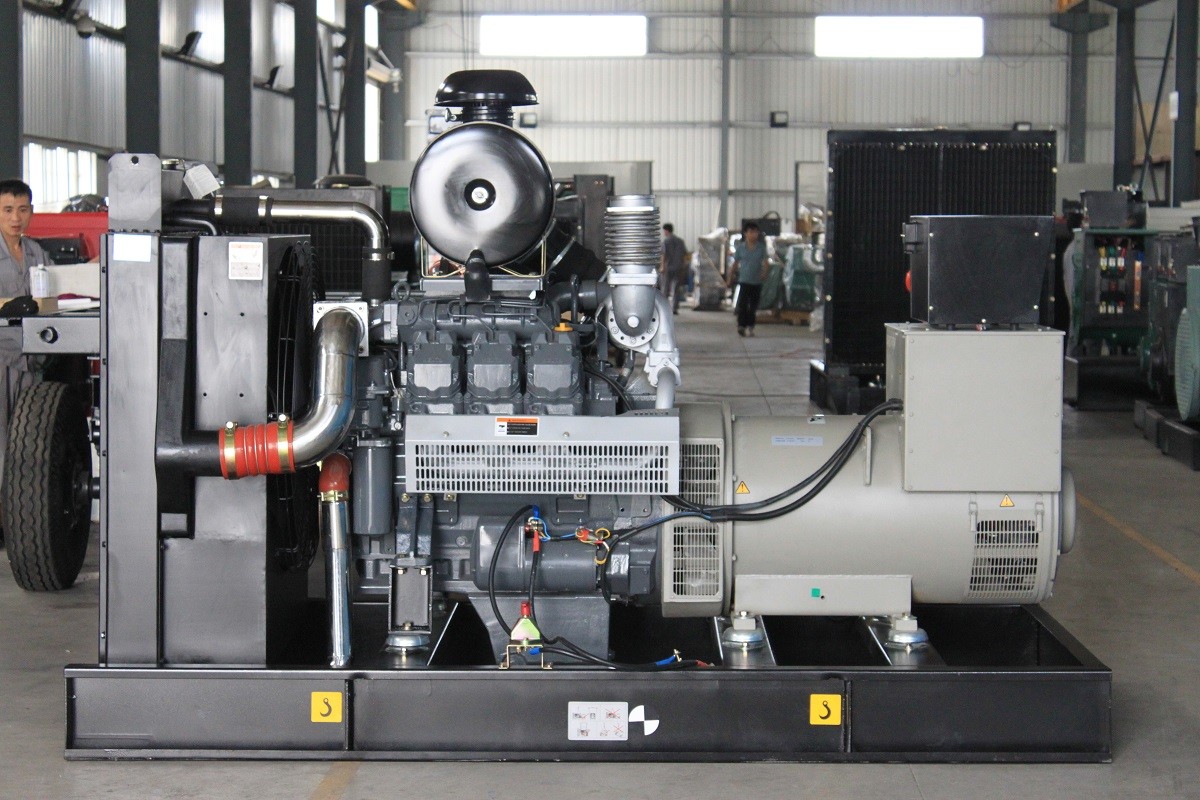

German Deutz Super Silent Power Generator Diesel 20 kva 30 kva 40
kva
AI power Deutz generator set adopts Deutz engine as the power
source. It’s one of the world’s leading diesel engine
manufacturers, produced nearly 400,000 units for one year and
quickly occupied the world market for the full specification, good
structure, reliable performance, easy maintenance, low exhaust and
long period maintenance. Deutz service network is spread in the
whole world.
Deutz Diesel Engine Specification
Engine manufacturer | Deutz (Dalian) Engine Co., Ltd. | |||||||||||
Engine brand | Deutz | |||||||||||
Engine model | BFM3 G2 | |||||||||||
Engine speed (rpm) | 1500 | |||||||||||
Engine output(kWm) | ||||||||||||
Standby Power | 32 | |||||||||||
Prime Power | 29 | |||||||||||
Continuous Power | 26 | |||||||||||
No. of Cylinder | 4 in line | |||||||||||
Aspiration | Natural | |||||||||||
Bore * Stroke (mm) | 98 * 105 | |||||||||||
Displacment (litre) | 3.168 | |||||||||||
Compression Ratio | 18.5:1 | |||||||||||
Mean effective pressure (bar) | 8.3 | |||||||||||
Piston speed (m/s) | 5.25 |
Leroysomer alternator Specification
Alternator | ||||||||||||
Alternator manufacturer | Leroy-somer Electro-technique (Fuzhou) Company Ltd. | |||||||||||
Alternator brand | Leroysomer | |||||||||||
Alternator model | TAL-A40-G | |||||||||||
Control system | SHUNT | |||||||||||
A.V.R. | Included | |||||||||||
Voltage regulation | ±1.0% | |||||||||||
Insulation system | Class H | |||||||||||
Protection | IP23 | |||||||||||
Rated power factor | 0.8 | |||||||||||
Winding pitch | Two thirds | |||||||||||
Winding leads | 6 | |||||||||||
Frequency (Hz) | 50 | |||||||||||
Voltage (V) | 400 | |||||||||||
Phase | 3 | |||||||||||
Output ratings (kVA/kW) | ||||||||||||
----------------Cont.H-40°C | 25/20 | |||||||||||
----------------Standby-27°C | 27.5/22 | |||||||||||
THF | <2% | |||||||||||
TIF | <50 | |||||||||||
Max. overspeed (Rev/Min) | 2250 | |||||||||||
Bearing | Single |
Deutz Catalogue
1. What's our power capacity range of generator?
Genset Model | Prime Power (PRP) | Standby Power (ESP) | Engine model | Fuel Cons. | Cylinder | Open genset Dimension | Weight kg | ||
KVA | KW | KVA | KW | L/h | |||||
ADE22 | 20 | 16 | 22 | 18 | BFM3 G1 | 5.4 | 4L | 1200×500×700 | 400 |
ADE33 | 30 | 24 | 33 | 26 | BFM3 G2 | 7.7 | 4L | 1250×500×750 | 400 |
ADE44 | 40 | 32 | 44 | 35 | BFM3T | 10.3 | 4L | 1250×500×750 | 420 |
ADE55 | 50 | 40 | 55 | 44 | BFM3C | 11.2 | 4L | 1250×500×750 | 420 |
ADE66 | 60 | 48 | 66 | 53 | BF4M2012 | 13.7 | 4L | 1400×740×970 | 475 |
ADE80 | 73 | 58 | 80 | 64 | BF4M2012C G1 | 18.1 | 4L | 1400×740×970 | 490 |
ADE100 | 90 | 72 | 100 | 80 | BF4M2012C G2 | 21.3 | 4L | 1400×740×970 | 500 |
ADE110 | 100 | 80 | 110 | 88 | BF4M1013EC G1 | 24.2 | 4L | 1600×880×1250 | 560 |
ADE124 | 113 | 90 | 124 | 99 | BF4M1013EC G2 | 26.1 | 4L | 1600×880×1250 | 560 |
ADE138 | 125 | 100 | 138 | 110 | BF4M1013FC | 28.9 | 4L | 1600×880×1250 | 560 |
ADE176 | 160 | 128 | 176 | 141 | BF6M1013EC G1 | 35.9 | 6L | 1970×1060×1380 | 770 |
ADE198 | 180 | 144 | 198 | 158 | BF6M1013EC G2 | 39.2 | 6L | 1970×1060×1380 | 770 |
ADE206 | 188 | 150 | 206 | 165 | BF6M1013FC G2 | 40.6 | 6L | 1970×1060×1380 | 770 |
ADE220 | 200 | 160 | 220 | 176 | BF6M1013FC G3 | 45.6 | 6L | 1970×1060×1380 | 770 |
ADE250 | 225 | 180 | 250 | 200 | BF6M1015-LA GA | 49.6 | 6V | 2650×1520×2100 | 2320 |
ADE275 | 250 | 200 | 275 | 220 | BF6M1015C-LA G1A | 53.8 | 6V | 2650×1520×2100 | 2320 |
ADE303 | 275 | 220 | 303 | 242 | BF6M1015C-LA G2A | 60.4 | 6V | 2750×1520×2100 | 2510 |
ADE344 | 313 | 250 | 344 | 275 | BF6M1015C-LA G3A | 67.2 | 6V | 2850×1520×2100 | 2520 |
ADE385 | 350 | 280 | 385 | 308 | BF6M1015C-LA G4 | 74.0 | 6V | 2850×1520×2100 | 2610 |
ADE413 | 375 | 300 | 413 | 330 | BF6M1015CP-LA G | 79.3 | 6V | 2950×1520×2100 | 2595 |
ADE481 | 438 | 350 | 481 | 385 | BF8M1015C-LA G1A | 92.5 | 8V | 3100×1850×2240 | 3300 |
ADE495 | 450 | 360 | 495 | 396 | BF8M1015C-LA G2 | 97.5 | 8V | 3100×1850×2240 | 3300 |
ADE523 | 475 | 380 | 523 | 418 | BF8M1015CP-LA G1A | 100.0 | 8V | 3100×1850×2240 | 3300 |
ADE550 | 500 | 400 | 550 | 440 | BF8M1015CP-LA G2 | 108.4 | 8V | 3100×1850×2240 | 3300 |
ADE564 | 513 | 410 | 564 | 451 | BF8M1015CP-LA G3 | 114.3 | 8V | 3100×1850×2240 | 3600 |
ADE578 | 525 | 420 | 578 | 462 | BF8M1015CP-LA G4 | 119.0 | 8V | 3100×1850×2240 | 3600 |
ADE619 | 563 | 450 | 619 | 495 | BF8M1015CP-LA G5 | 123.1 | 8V | 3100×1850×2240 | 3630 |
ADE756 | 688 | 550 | 756 | 605 | HC12V132ZL-LAG 1A | 137.4 | 12V | 3700×1600×2200 | 4200 |
ADE825 | 750 | 600 | 825 | 660 | HC12V132ZL-LAG 2A | 152.6 | 12V | 3700×1600×2200 | 4200 |
Ai Company Introduction:
Xiamen Ai Power Technology Co.,Ltd, which is located in the
beautiful tourism city of Xiamen city, Fujian Province, It is
dedicated to becoming a comprehensive company for intelligent power
and green energy supply. Our company aim to create a better life
for the world by supplying better power solutions. Continually
improving products’ quality, friendly-use and durability is our
long-term mission. We will make all the efforts to walk a long way
to reach customers’ greatest satisfaction.
Our logo Looks like the character of “Ai”, which is short for
Artificial Intelligence. It stands for Ai power aims to develop
intelligent power with superior technology, to provide customized
products as per requirements of different customers. Our Logo
adopts green color and with the green leaves. It stands for green
energy. Ai power aims to provide global users with efficient and
clean energy, and to be environmental-friendly.
FAQ
Answer: We can offer the range from 10kva~3000kva genset, diesel
generator, gas generator, marine generator.
2. Besides power generator, what's your other product?
Answer: We also provide lighting tower, air compressor, ATS,
synchronization system, switchgear, transformer, engine spareparts.
3. What's kind of generator type you produce?
Answer: open generators, silent power generators, super silent
genset, trailer genset, movable electric generator, reefer
generator.
4. What's your warranty?
Answer: One year or 1000 hours, which one comes first.
5. Can you use our logo?
Answer: Yes, we can use customer's logo instead of ours.
6. Can you accept small order?
Answer: Yes, we can accept trial order.
7. What's your delivery time?
Answer: Our normal delivery time is 2 to 4 weeks. But if your order
is some special engine and alternator, the delivery time will be
longer.
![]() |
