Japan Yanmar 5kva 10kva 20kva 30kva 40kva 50kva Super Silent Diesel
Generator
Yanmar diesel engine is all made in Japan, with high quality, it
has covered the power range from 5kva to 56kva, the alternator we
have adopted Stamford, Leroysomer or Meccalte for options.
Yanmar Diesel Generator List
| Prime Power | Standby Power | Engine Model | NO. of Cylinders | Dimension (mm) | Net Weight |
| KW | KVA | KW | KVA | L x W x H | (kg) |
| 7 | 8.8 | 7.7 | 9.6 | 3TNV76 | 3 | 1580*810*930 | 300 |
| 8.5 | 11 | 9.4 | 12 | 3TNV82A | 3 | 1580*810*930 | 320 |
| 10 | 13 | 11 | 14 | 3TNV88 | 3 | 1580*810*930 | 359 |
| 12 | 15 | 13 | 17 | 3TNV84T | 3 | 1580*810*930 | 422 |
| 16 | 20 | 18 | 22 | 4TNV84T | 4 | 1580*810*990 | 467 |
| 25 | 31 | 28 | 34 | 4TNV98 | 4 | 1580*810*990 | 467 |
| 32 | 40 | 35 | 44 | 4TNV98T | 4 | 1580*810*1165 | 667 |
| 40 | 50 | 44 | 55 | 4TNV106 | 4 | 1580*810*1165 | 730 |
| 45 | 56 | 50 | 62 | 4TNV106T | 4 | 1580*810*1165 | 730 |
Gensets’ electric performance
Gensets compliance with all main standards, such as
:GB/T2820,ISO8528,IEC34,VDE0875-N
Prime output power: 7kw to 45kw
Rated voltage: 400/230v, 440/254v, 220/127v, etc.
Phase/connecting method: 3 phase 4wire/Y type connection
Rated frequency: 50/60hz
Rated speed: 1500/1800rpm
Excited type: Brushless, self excited or PMG
Insulation: Class H
Protection: IP21~IP23
Voltage regulation: AVR automatic control
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤ 90%
Controller system
1. Standard control panel, including voltmeter, fequency meter,
ampere meter,water temperature gauge, oil temperature gauge, oil
pressure gauge, AMF control module,oil level indicator, emergency
button,preheating button, battery voltage gauge, hours running
counter for protection and tranfering.
2. It can be with ATS electric control cabinet, including circuit
breaker, LCD or LED auto controller, indicating lamp, transfer
switch,etc.. Automatic transfer switch (ATS) uses update
technology, which can be automatic control for on-off electricity,
remote monitoring, automatic parallel operation,etc…

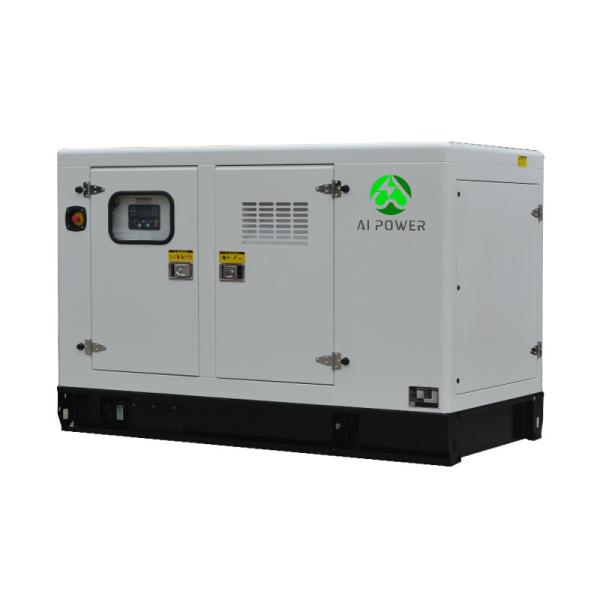

Silent Diesel Generator Samples
FAQ
1. Can you accept trial order?
A: Yes, we can accept trial order, it is the starting of business.
But according to different product the price may be higher as
normal quantity.
2. What is your company product range?
A: We are a professional turbocharger supplier, OEM and ODM are
welcome.
3. Do you inspect the product? How?
A: Yes, each step of production and finished products will be
carried out inspection by QC before shipping.
4. What is your payment terms?
A: T/T 30% advance payment, the balance 70% shall be paid before
shipment, L/C at sight.
