Small Power Water Cooled 40 Kva 30kva 20kva Cummins Generator Set

Ask Lasest Price
Brand Name :	Ai Power
Model Number :	A30
Certification :	CE, ISO9001
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	300 units per month
Delivery Time :	30 to 35 days

Add to Cart

Product Details
Company Profile

Small Power Water Cooled 40 Kva 30kva 20kva Cummins Generator Set

Chinese Water Cooled 40 Kva 30kva 20kva Cummins Generator Set Information

We produce and export 20kw-2400kw Cummins and Perkins diesel generator sets. Diesel generator sets are widely used in field construction, high-rise buildings, schools, hospitals, industrial and mining enterprises, farms, villages and other places where electricity is needed.

Cummins 40kva Diesel Engine Specifications:

Engine manufacturer

Dongfeng Cummins Engine Co. Ltd

Engine brand

Cummins

Engine model

4BT3.9-G2

Engine speed (rpm)

1500

Engine output(kWm)

Standby Power

Prime Power

Continuous Power

TBD

No. of Cylinder

Aspiration

Turbocharged

Bore * Stroke (mm)

102 * 120

Displacment (litre)

3.9

Compression Ratio

18.0:1

Engine Idle Speed (rpm)

950-1050

Engine Fuel Consumption:

Type Injection System

BYC A/Electronic Governor

Fuel Consumption (litre/hour)

100% prime power

9.3

75% prime power

7.3

50% prime power

5.3

25% prime power

3.4

Leroysomer Brushless alternator specification

Alternator manufacturer

Leroy-somer Electro-technique (Fuzhou) Company Ltd.

Alternator brand

Leroysomer

Alternator model

TAL-A42-F

Control system

SHUNT

A.V.R.

Included

Voltage regulation

±1.0%

Insulation system

Class H

Protection

IP23

Rated power factor

0.8

Winding pitch

Two thirds

Winding leads

Frequency (Hz)

Voltage (V)

400

Phase

Output ratings (kVA/kW)

----------------Cont.H-40°C

45/36

----------------Standby-27°C

50/40

THF

<2%

TIF

<50

Max. overspeed (Rev/Min)

2250

Bearing

Single

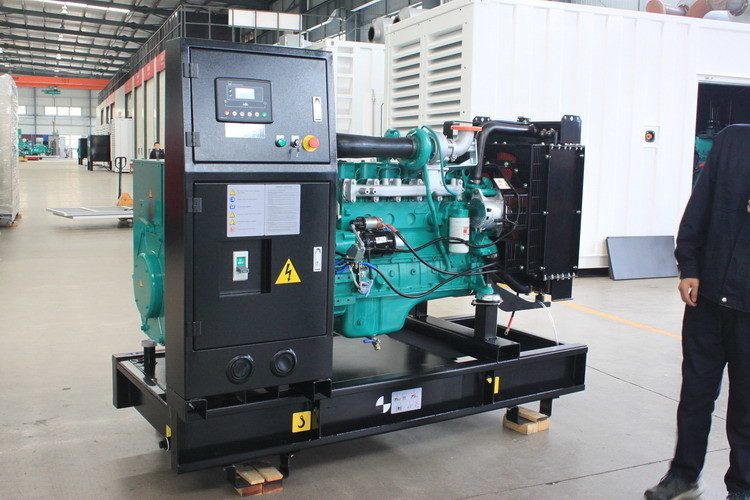

Ai Power Silent Generator High Quality Silent Canopy

Small Power Water Cooled 40 Kva 30kva 20kva Cummins Generator Set

Small Power Water Cooled 40 Kva 30kva 20kva Cummins Generator Set

FAQ

1.What's our power capacity range of generator?
Answer: We can offer the range from 10kva~3000kva genset, diesel generator, gas generator, marine generator.

2. Besides power generator, what's your other product?
Answer: We also provide lighting tower, air compressor, ATS, synchronization system, switchgear, transformer, engine spareparts.

3. What's kind of generator type you produce?
Answer: open generators, silent power generators, super silent genset, trailer genset, movable electric generator, reefer generator.
4.What's your warranty?
Answer: One year or 1000 hours, which one comes first.
5.Can you use our logo?
Answer: Yes, we can use customer's logo instead of ours.
6. Can you accept small order?
Answer: Yes, we can accept trial order.
7. What's your delivery time?
Answer: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
