Germany Deutz Diesel Generator Set 40Kva With Deutz Engine BFM3T

Product Categories

Xiamen Ai Power Technology Co., Ltd.

Contact Now

Germany Deutz Diesel Generator Set 40Kva With Deutz Engine BFM3T

Ask Lasest Price
Brand Name :	Ai Power Silent Generator Set
Model Number :	A40
Certification :	CE, ISO, SONCAP
Price :	USD 5000 Per Unit Negotiable
Payment Terms :	L/C, T/T, MoneyGram,Western Union
Supply Ability :	100 Sets Per Month
Delivery Time :	30 Days

Add to Cart

Product Details
Company Profile

Germany Deutz Diesel Generator Set 40Kva With Deutz Engine BFM3T

Product Description

Germany Deutz Diesel Generator 40Kva Generator Set With Deutz Engine BFM3T

TECHNOLOGY FEATURES:
1. Adopt the unit pump structure tested for 12 years in European
markets, stable performance, reliable and average heavy repair
mileage is 100,000 kilometers higher than other kind products, with
30 days more attendance in a year.
2. Adopt structures off the unit pump with the highest injection
pressure and top built intake duct, short and high pressure pipe,
met the emission standard, save 2 to 3 liters fuel per one hundred
kilometers compared with other kind products.
3. Unique single injection pump fuel supplying system, low
requirements for fuel quality, adaptable to Chinese fuel quality
and guaranteed the reliability of the complete engine.
4. Noise lower than 96 decibels, the only one engine met the
standard without assistant approaches in China.
5. Integrated design, compact structure, smaller and lighter than
kind products by 100 to 150 kilograms.
6. Simple structure and easy to maintenance, all the repair point
are on the same side with the engines; Series 2012 adopted non
cylinder liner and none valve guide structure.

Engine manufacturer	Deutz (Dalian) Engine Co., Ltd.
Engine brand	Deutz
Engine model	BFM3T
Engine speed (rpm)	1500
Engine output(kWm)
Standby Power	44
Prime Power	40
Continuous Power	36
No. of Cylinder	4 in line
Aspiration	Turbocharged
Bore * Stroke (mm)	98 * 105
Displacment (litre)	3.168
Compression Ratio	18.5:1
Mean effective pressure (bar)	11.1
Piston speed (m/s)	5.25

Alternator manufacturer	Cummins Generator Technologies(China) Co. Ltd
Alternator brand	Stamford
Alternator model	S1L2-K1
Control system	SELF EXCITED
A.V.R.	Included
Voltage regulation	±1.0%
Insulation system	Class H
Protection	IP23
Rated power factor	0.8
Winding pitch	Two thirds
Winding leads	12
Frequency (Hz)	50
Voltage (V)	400
Phase	3
Output ratings (kVA/kW)
----------------Cont.H-40°C	40/32
----------------Standby-27°C	44/35.2
THF	<2%
TIF	<50
Max. overspeed (Rev/Min)	2250
Bearing	Single

Products Show

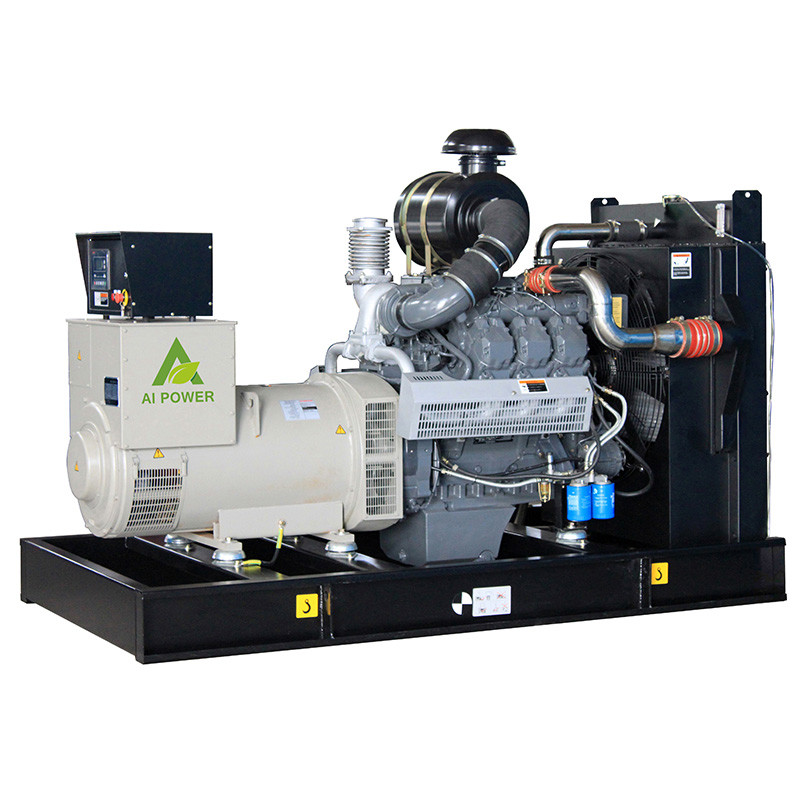

Germany Deutz Diesel Generator Set 40Kva With Deutz Engine BFM3T

Open Diesel Generator:

Famous brand engine couple with high quality alternator
Large size cooling radiator.
Heavy duty steel base frame
Strong anti-vibration mat
Standard free maintenance battery
AC alternator for battery charger
Heavy-duty air filter, oil filter, water filter
Famous brand controller and breaker
Optional fuel tank, silent canopy, ATS, synchronization panels.

Silent Diesel Generator:

More than 2mm thick steel to make the canopy
High quality paint materials and strict powder paint
Impedance combined type silencer
Stainless steel door locks and hinges and 180° revolvable and
disassemble door
High quality soundproof and insulation materials
Transparent viewing window
Lifting earis mounted in the base frame
Standard 20', 40' and 40HQ container canopy for option

Germany Deutz Diesel Generator Set 40Kva With Deutz Engine BFM3T

Ai Power Company

Company Profile

Xiamen Ai Power Technology Co.,Ltd, which is located in the
beautiful tourism city of Xiamen city, Fujian Province.
Ai Power products adopts internationally and domestically reputed
high-quality engines and alternators for our industrial diesel
generator sets, gas diesel genset, marine generator, movable
generator, lighting towers, generator spare parts and other high
value-added electrical products, like ATS, synchronization system,
transformer, switchgear, etc.

Packing & Delivery

Germany Deutz Diesel Generator Set 40Kva With Deutz Engine BFM3T

FAQ

1.What's our power capacity range of generator?
Answer: We can offer the range from 10kva~3000kva genset, diesel
generator, gas generator, marine generator.
2. Besides power generator, what's your other product?
Answer: We also provide lighting tower, air compressor, ATS,
synchronization system, switchgear, transformer, engine spareparts.
3. What's kind of generator type you produce?
Answer: open generators, silent power generators, super silent
genset, trailer genset, movable electric generator, reefer
generator.
4.What's your warranty?
Answer: One year or 1000 hours, which one comes first.
5.Can you use our logo?
Answer: Yes, we can use customer's logo instead of ours.
6. Can you accept small order?
Answer: Yes, we can accept trial order.
7.What's your delivery time?
Answer: Our normal delivery time is 2 to 4 weeks. But if your order
is some special engine and alternator, the delivery time will be
longer.
