    3 Phases Deutz Air Cooled Diesel Generator 400V 15kw 22kw 125kva

    Ask Lasest Price
    Brand Name : Ai Power
    Model Number : A15 A20 A125
    Certification : CE, ISO9001
    Payment Terms : Western Union, L/C, T/T, MoneyGram
    Supply Ability : 100 Units Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    3 Phases Deutz Air Cooled Diesel Generator 400V 15kw 22kw 125kva

    3 Phases 400V 15kw 22kw 125kva Deutz Air Cooled Diesel Generator


    Deutz air cooled diesel generator is applicable in the places which is short of coolant for example desert, remote mountain, some telecom projects etc. Our air cooled diesel generator has power from 15kva to 125kva for your choices. include F2L912, F3L912, F4L913, F6L912 etc.

    Deutz Engine 80kva Datasheet

    ManufacturerDeutz Engines Company Limited
    ModelBF6L913
    Engine speed1500rpm
    Engine power
    ----------------------------Standby power80kw
    ----------------------------Prime power74kw
    Number of cylinder6 cylinder in-line
    TypeVertical 4-stroke air-cooled deirect injection
    AspirationTurbo Charging
    Bore * Stroke102*125mm
    Displacement6.128 L
    Compression ratio18
    Direction of rotationclockwise
    Combustion Air Flow5.86m3/min
    Exhaust Gas Flow6.04 m3/min
    Exhaust Gas Temperature550oC
    Area of heat radiation0.24m2
    Noise dB108a
    Electric System12V/24V


    Leroysomer alternator Specification

    ManufacturerLeroy-somer Electro-technique (Fuzhou) Company Ltd.
    ModelLSA44.3S3
    Output power64KW
    AVR modelR250
    Number of phase3
    Power factor (Cos Phi)0.8
    Altitude≤ 1000 m
    Overspeed2250RPM
    Number of Pole4
    Exciter typeShunt / AREP
    Insulation classH
    Voltage regulation±1%
    Sustained short circuit current300% (3 IN) : 10s
    Total harmonics (TGH/THC)no load < 2% - on load < 2%
    Wave form : NEMA = TIF< 50
    Bearingsingle


    Deutz open generator sample


    3 Phases Deutz Air Cooled Diesel Generator 400V 15kw 22kw 125kva3 Phases Deutz Air Cooled Diesel Generator 400V 15kw 22kw 125kva

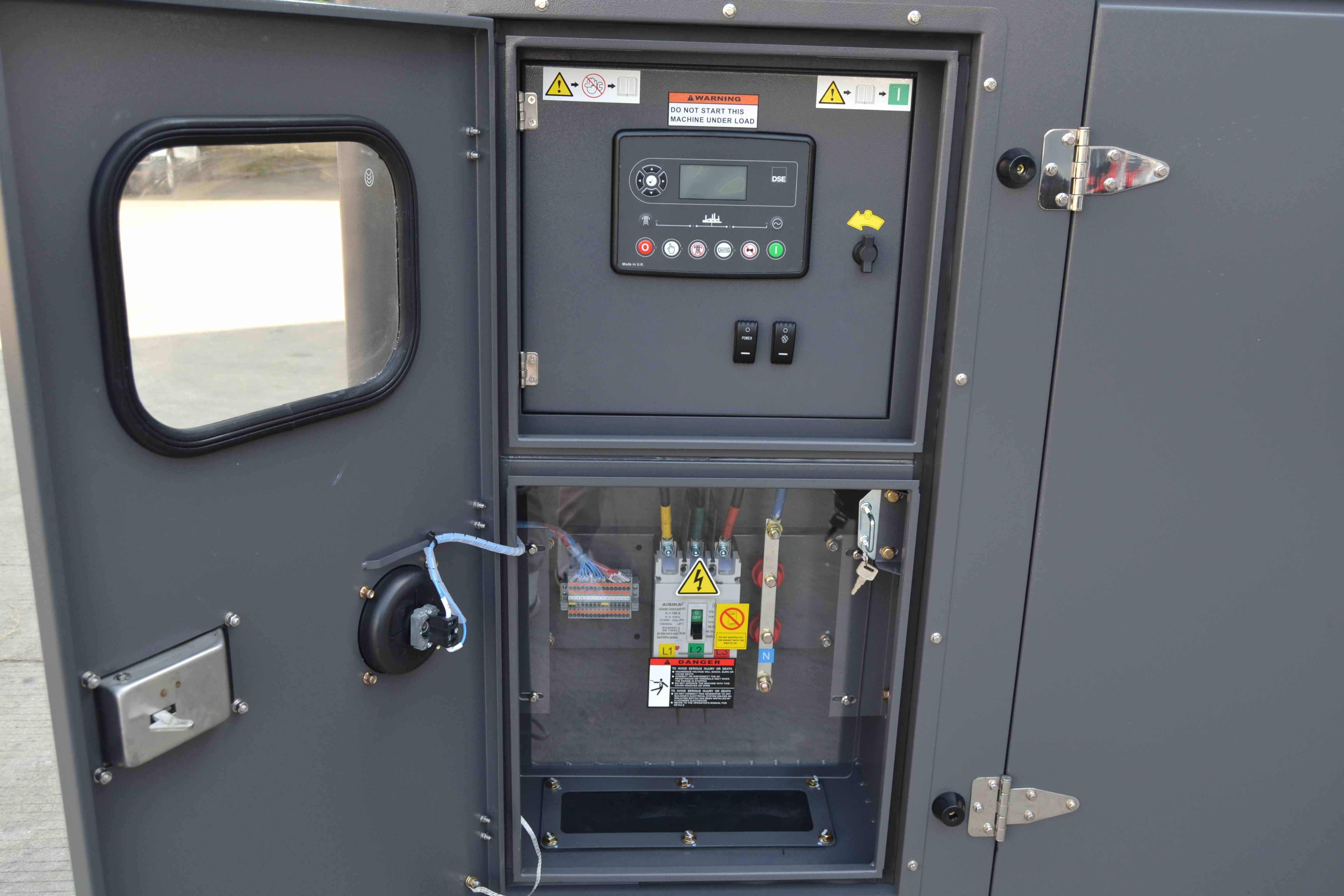

    Deutz silent type diesel generator
    3 Phases Deutz Air Cooled Diesel Generator 400V 15kw 22kw 125kva3 Phases Deutz Air Cooled Diesel Generator 400V 15kw 22kw 125kva3 Phases Deutz Air Cooled Diesel Generator 400V 15kw 22kw 125kva
    3 Phases Deutz Air Cooled Diesel Generator 400V 15kw 22kw 125kva3 Phases Deutz Air Cooled Diesel Generator 400V 15kw 22kw 125kva3 Phases Deutz Air Cooled Diesel Generator 400V 15kw 22kw 125kva3 Phases Deutz Air Cooled Diesel Generator 400V 15kw 22kw 125kva
