912 Deutz Air Cool 3 Cylinder Diesel Generator 15kw 25 Kva 30kva 50kva 100kva

    Buy cheap 912 Deutz Air Cool 3 Cylinder Diesel Generator 15kw 25 Kva 30kva 50kva 100kva from wholesalers

    Buy cheap 912 Deutz Air Cool 3 Cylinder Diesel Generator 15kw 25 Kva 30kva 50kva 100kva from wholesalers
    • Buy cheap 912 Deutz Air Cool 3 Cylinder Diesel Generator 15kw 25 Kva 30kva 50kva 100kva from wholesalers
    • Buy cheap 912 Deutz Air Cool 3 Cylinder Diesel Generator 15kw 25 Kva 30kva 50kva 100kva from wholesalers
    • Buy cheap 912 Deutz Air Cool 3 Cylinder Diesel Generator 15kw 25 Kva 30kva 50kva 100kva from wholesalers

    912 Deutz Air Cool 3 Cylinder Diesel Generator 15kw 25 Kva 30kva 50kva 100kva

    Ask Lasest Price
    Brand Name : Ai Power
    Model Number : A15 A20 A30 A40 A80
    Certification : CE, ISO9001
    Payment Terms : Western Union, L/C, T/T, MoneyGram
    Supply Ability : 300 Units Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    912 Deutz Air Cool 3 Cylinder Diesel Generator 15kw 25 Kva 30kva 50kva 100kva

    15kw 25 Kva 30kva 50kva 100kva 912 Deutz Air Cool 3 Cylinder Diesel Generator


    DEUTZ Corporation is a sales, service, genuine parts and application engineering center for the Americas, supporting the DEUTZ product range of 18.4 - 620 kW diesel and natural gas engines. DEUTZ is synonymous with pioneering spirit, passion and innovation culture. As an independent provider of diesel, gas and electric drivetrains in the power range up to 620 kW, we are developing the technologies today for the demands of tomorrow. We are pioneers in high-quality, environmentally friendly and efficient drives in off-highway applications.
    Deutz Air Cooled Engine Datasheet

    ManufacturerDeutz Engines Company Limited
    ModelF3L912
    Engine speed1500rpm
    Engine power
    ----------------------------Standby power26kw
    ----------------------------Prime power24kw
    Number of cylinder3 cylinder in-line
    TypeVertical 4-stroke air-cooled deirect injection
    AspirationNaturally aspirated
    Bore * Stroke100*120 mm
    Displacement2.828 L
    Compression ratio17
    Direction of rotationclockwise
    Combustion Air Flow2.12 m3/min
    Exhaust Gas Flow2.18 m3/min
    Exhaust Gas Temperature500oC
    Area of heat radiation0.12m2
    Noise dB103a
    Electric System12V/24V

    Leroysomer Brushless alternator Specification


    ManufacturerLeroy-somer Electro-technique (Fuzhou) Company Ltd.
    ModelLSA42.3VS1
    Output power20 KW
    AVR modelR220 / R438
    Number of phase3
    Power factor (Cos Phi)0.8
    Altitude≤ 1000 m
    Overspeed2250RPM
    Number of Pole4
    Exciter typeShunt / AREP
    Insulation classH
    Voltage regulation±1%
    Sustained short circuit current300% (3 IN) : 10s
    Total harmonics (TGH/THC)no load < 3% - on load < 2%
    Wave form : NEMA = TIF< 50
    Bearingsingle

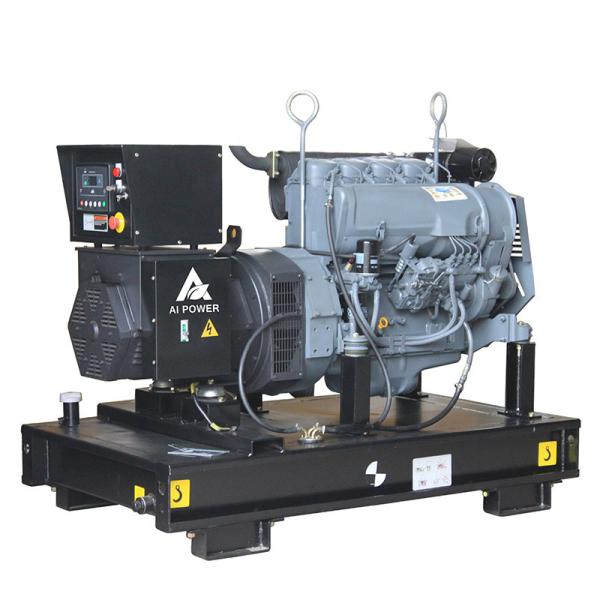

    Deutz open generator sample


    912 Deutz Air Cool 3 Cylinder Diesel Generator 15kw 25 Kva 30kva 50kva 100kva


    912 Deutz Air Cool 3 Cylinder Diesel Generator 15kw 25 Kva 30kva 50kva 100kva


    Deutz silent diesel generator
    912 Deutz Air Cool 3 Cylinder Diesel Generator 15kw 25 Kva 30kva 50kva 100kva912 Deutz Air Cool 3 Cylinder Diesel Generator 15kw 25 Kva 30kva 50kva 100kva912 Deutz Air Cool 3 Cylinder Diesel Generator 15kw 25 Kva 30kva 50kva 100kva
    912 Deutz Air Cool 3 Cylinder Diesel Generator 15kw 25 Kva 30kva 50kva 100kva912 Deutz Air Cool 3 Cylinder Diesel Generator 15kw 25 Kva 30kva 50kva 100kva912 Deutz Air Cool 3 Cylinder Diesel Generator 15kw 25 Kva 30kva 50kva 100kva
