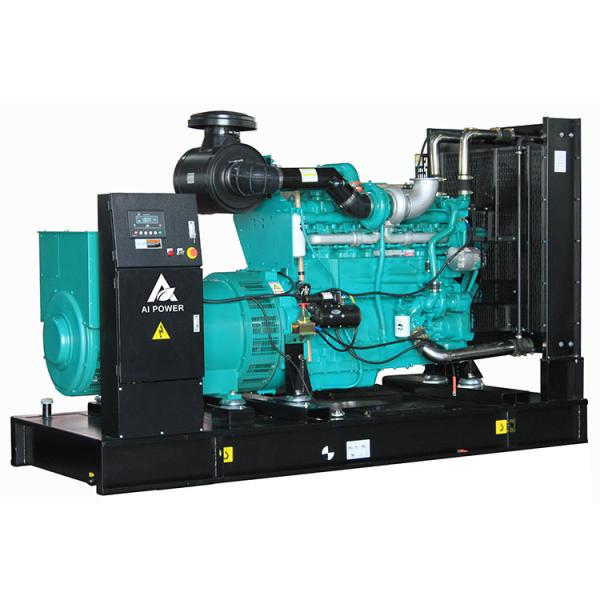

Cummins G-Drive QSM11-G1 240KW 3phase Water Cooled Marine Engine Power Diesel Generator Set

    Buy cheap Cummins G-Drive QSM11-G1 240KW 3phase Water Cooled Marine Engine Power Diesel Generator Set from wholesalers

    Buy cheap Cummins G-Drive QSM11-G1 240KW 3phase Water Cooled Marine Engine Power Diesel Generator Set from wholesalers
    • Buy cheap Cummins G-Drive QSM11-G1 240KW 3phase Water Cooled Marine Engine Power Diesel Generator Set from wholesalers
    • Buy cheap Cummins G-Drive QSM11-G1 240KW 3phase Water Cooled Marine Engine Power Diesel Generator Set from wholesalers

    Cummins G-Drive QSM11-G1 240KW 3phase Water Cooled Marine Engine Power Diesel Generator Set

    Ask Lasest Price
    Brand Name : Ai Power
    Model Number : A300
    Certification : CE, ISO
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 200 units per month
    Delivery Time : 20-25 days
    • Product Details
    • Company Profile

    Cummins G-Drive QSM11-G1 240KW 3phase Water Cooled Marine Engine Power Diesel Generator Set

    Cummins G-Drive QSM11-G1 240KW Marine Engine Power for Diesel Generator Set


    Cummins QSM11-G1 – Original from Chongqing Cummins Engine Plant (CCEC), Cummins Joint Venture Plant, 50% shareholding by Cummins USA, original genuine Cummins generator engine.

    Our large wholesale of CCEC Cummins generator engine brings competitive agent price for Cummins QSM11-G1. Our diesel generator factory manufacture Cummins generator set with high quality & fast delivery.


    Engine Specifications:

    General Information of Cummins QSM11-G1 Diesel Engine for Generator Set
    Engine ModelCummins QSM11-G1
    Engine Type6 Cylinder, In-line, 4 Stroke
    Displacement10.8 L
    Bore*Stroke(mm)125*147
    Dry Weight(with flywheel and alternator)973 KG
    Wet Weight(with flywheel and alternator)1007 KG
    Technical Specification of Cummins QSM11-G1 Diesel Engine for Generator Set
    AspirationTurbocharged, Air-Air Intercooled
    Fuel SystemPT Pump Direct Injection
    Emission StandardEU Stage II
    Engine Cooling Fluid Volume34 L
    Coolant capacity-engine only9.5 L
    Idle speed675-750 RPM
    Maximum Friction Power22.4 KW
    Compression Ratio16.3:1
    Firing Order1-5-3-6-2-4
    Performance Data of Cummins QSM11-G1 Diesel Engine for Generator Set
    Rated Output/Speed234KW/1500RPM
    Standby Output/Speed257KW/1500RPM
    Rated Output/Speed359W/1800RPM
    Standby Output/Speed395KW/1800RPM
    Fuel Consumption/Rated Output56 L/h
    Fuel Consumption/Standby output61 L/h



    Product Details

    Cummins G-Drive QSM11-G1 240KW 3phase Water Cooled Marine Engine Power Diesel Generator SetCummins G-Drive QSM11-G1 240KW 3phase Water Cooled Marine Engine Power Diesel Generator SetCummins G-Drive QSM11-G1 240KW 3phase Water Cooled Marine Engine Power Diesel Generator Set


    Open Type.

    ● Famous brand engine couple with high quality alternator
    ● Large size cooling radiator
    ● Heavy duty steel base frame
    ● Strong anti-vibration mat
    ● Standard free maintenance battery
    ● AC alternator for battery charger
    ● Heavy-duty air filter, oil filter, water filter
    ● Famous brand controller and breaker
    ● Optional fuel tank, silent canopy, ATS, synchronization panels.


    When you are looking for Cummins engine or engine parts, If you are not sure about the part number that you need, please provide all the information that you have, such as the equipment nameplate, engine nameplate or engine number, or real photos. we will help you check and send you best price.


    FAQ

    1. What is your warranty period?

    A: It’s 1 year or 1000 running hours whichever comes first. But based on some special project, we can extend our warranty period.

    2. Can you accept OEM?

    A. Yes, we can accept OEM.

    3. What’s your payment term?

    A: We can accept T/T 30% in advance and the balance 70% shall be paid before shipment or LC at sight.

    4. What’s your delivery time?

    A: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
