Korea Doosan Diesel Generator 600kw Power Generator 750kva With Engine DP222LC

    Buy cheap Korea Doosan Diesel Generator 600kw Power Generator 750kva With Engine DP222LC from wholesalers

    Buy cheap Korea Doosan Diesel Generator 600kw Power Generator 750kva With Engine DP222LC from wholesalers
    • Buy cheap Korea Doosan Diesel Generator 600kw Power Generator 750kva With Engine DP222LC from wholesalers

    Korea Doosan Diesel Generator 600kw Power Generator 750kva With Engine DP222LC

    Ask Lasest Price
    Brand Name : Ai Power
    Model Number : A600
    Certification : CE, ISO9001,,SONCAP
    Price : USD25000/set
    Payment Terms : L/C, T/T, Western Union,
    Supply Ability : 100units per month
    Delivery Time : 25days
    • Product Details
    • Company Profile

    Korea Doosan Diesel Generator 600kw Power Generator 750kva With Engine DP222LC

    Product Description

    Korea Doosan Diesel Generator 600kw Power Generator 750kva With Engine DP222LC

    Korea Doosan 750kva Diesel Generator 600kw Power Generator With Engine DP222LC

    TECHNOLOGY FEATURES:
    1. Adopt the unit pump structure tested for 12 years in European markets, stable performance, reliable and average heavy repair mileage is 100,000 kilometers higher than other kind products, with 30 days more attendance in a year.
    2. Adopt structures off the unit pump with the highest injection pressure and top built intake duct, short and high pressure pipe, met the emission standard, save 2 to 3 liters fuel per one hundred kilometers compared with other kind products.
    3. Unique single injection pump fuel supplying system, low requirements for fuel quality, adaptable to Chinese fuel quality and guaranteed the reliability of the complete engine.
    4. Noise lower than 96 decibels, the only one engine met the standard without assistant approaches in China.
    5. Integrated design, compact structure, smaller and lighter than kind products by 100 to 150 kilograms.
    6. Simple structure and easy to maintenance, all the repair point are on the same side with the engines; Series 2012 adopted non cylinder liner and none valve guide structure.
    Engine
    GENERAL ENGINE DATA
    Engine manufacture
    Doosan Infracore Co., Ltd
    Engine brand
    Doosan
    Engine model
    DP222LC
    Engine speed (rpm)
    1500
    Engine output(kWm)
    Standby Power
    723
    Prime Power
    657
    Engine Type
    4-Cycle, V-type, 12-Cylinder, Turbo charged & intercooled (air to air)
    Bore x Stroke (mm)
    128 x 142
    Displacment (litre)
    21.927
    Compression Ratio
    15:1
    FUEL SYSTEM
    Type
    Bosch type in-line pump with integrated, electromagnetic actuator
    Governor
    Electric type ( all speed control )
    Fuel Consumption (litre/hour)
    25% prime load
    42.1
    50% prime load
    79.3
    75% prime load
    119.1
    100% prime load
    161
    EXHAUST SYSTEM
    Maximum Back Pressure (kPa)
    5.9
    Exhaust gas temp. after turbo. (prime/standby power) (°C)
    478/502
    Exhaust Gas Flow(prime/standby power) (m3/min)
    100/108
    AIR INDUCTION SYSTEM
    Maximum Intake Air Restriction (kPa)
    with Clean Filter Element
    2.16
    with Dirty Filter Element
    6.23
    Intake Air Flow(prime/standby power) (m3/min)
    41.8/45
    COOLING SYSTEM
    Cooling method
    Fresh water forced circulation
    Coolant capacity
    Engine Only : Approx. 23 lit., With Radiator : Approx 114 lit.(standard)
    Water Temperature
    Maximum for standby and Prime (°C)
    103
    Before start of full load (°C)
    40
    Thermostat Type and Range
    Wax – pellet type, Opening temp. 71°C , Full open temp. 85°C
    LUBRICATION SYSTEM
    Lub. Method
    Fully forced pressure feed type
    Oil pan capacity
    Max. 40 liters , Min. 27 liters
    Lub oil pressure (kPa)
    Idle Speed Min.
    100
    Governed Speed Min.
    250
    Maximum Oil Temperature (°C)
    120
    ELECTRICAL SYSTE
    Battery Charging Alternator
    27.5V x 45A alternator
    Starting motor
    24V x 7.0 kW
    Battery Voltage
    24V
    Battery Capacity
    2 x 200 Ah (recommended)
    ALTERNATOR
    Alternator manufacturer
    Leroy-somer Electro-technique (Fuzhou) Company Ltd.
    Alternator brand
    Leroysomer
    Alternator model
    LSA49.3M65
    Control system
    AREP
    A.V.R.
    Included
    Voltage regulation
    ±1.0%
    Insulation system
    Class H
    Protection
    IP23
    Rated power factor
    0.8
    Winding pitch
    Two thirds
    Winding leads
    6
    Frequency (Hz)
    50
    Voltage (V)
    400
    Phase
    3
    Output ratings (kVA/kW)
    ----------------Cont.H-40°C
    750/600
    ----------------Standby-27°C
    825/660
    THF
    <2%
    TIF
    <50
    Max. overspeed (Rev/Min)
    2250
    Bearing
    Single
    Products Show

    Korea Doosan Diesel Generator 600kw Power Generator 750kva With Engine DP222LC

    Korea Doosan Diesel Generator 600kw Power Generator 750kva With Engine DP222LC

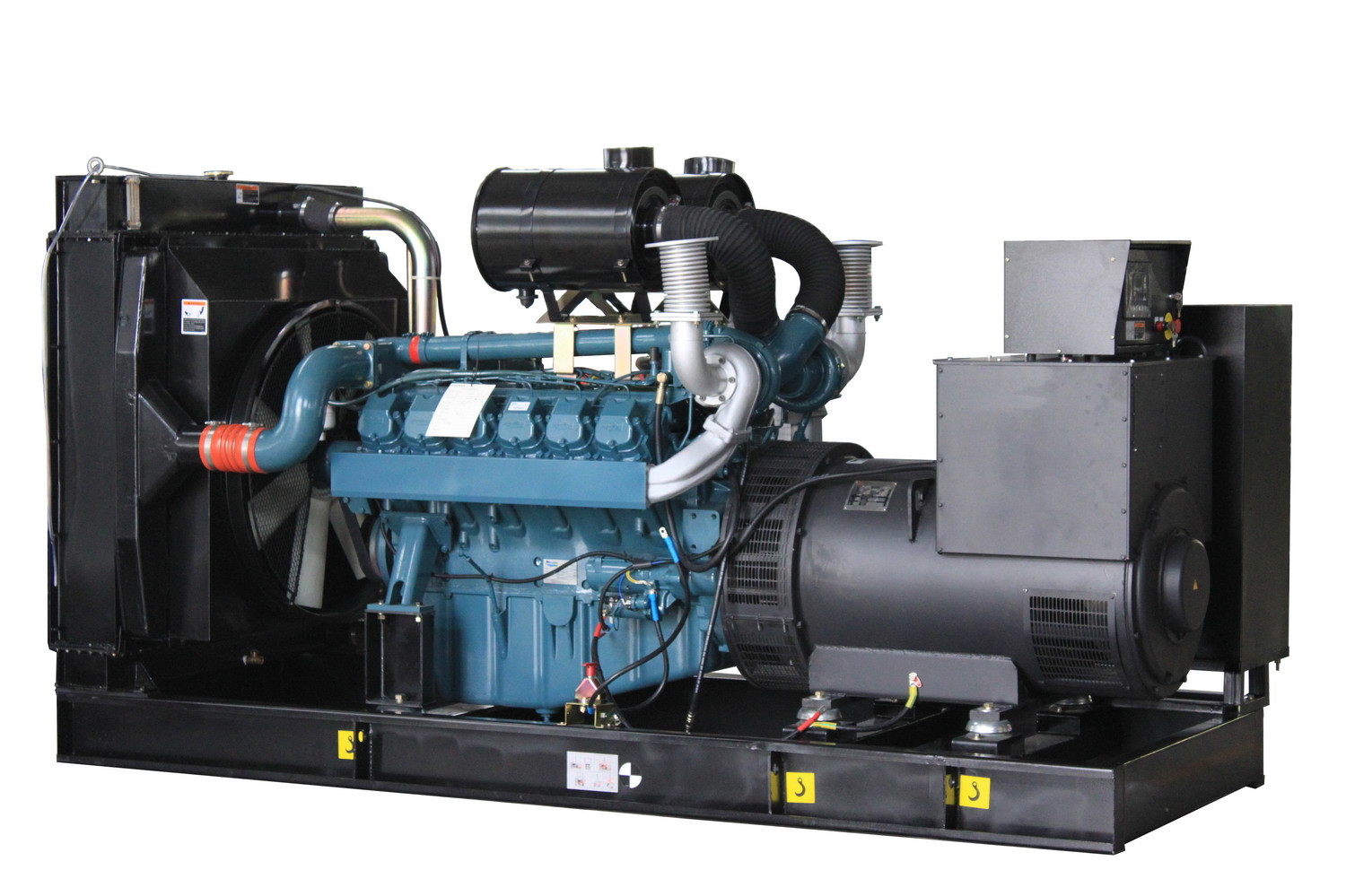

    Open Diesel Generator:

    1.Famous brand engine couple with high quality alternator

    2.Large size cooling radiator

    3.Heavy duty steel base frame
    4.Strong anti-vibration mat
    5.Standard free maintenance battery
    6.AC alternator for battery charger
    7. Heavy-duty air filter, oil filter, water filter
    8.Famous brand controller and breaker
    9.Optional fuel tank, silent canopy, ATS, synchronization panels.

    Silent Diesel Generator:

    1. More than 2mm thick steel to make the canopy
    2. High quality paint materials and strict powder paint
    3. Impedance combined type silencer
    4.Stainless steel door locks and hinges and 180° revolvable and disassemble door
    5.High quality soundproof and insulation materials
    6.Transparent viewing window
    7. Lifting earis mounted in the base frame
    8.Standard 20', 40' and 40HQ container canopy for option

    Ai Power Company

    Company Profile

    Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province.
    Ai Power products adopts internationally and domestically reputed high-quality engines and alternators for our industrial diesel generator sets, gas diesel genset, marine generator, movable generator, lighting towers, generator spare parts and other high value-added electrical products, like ATS, synchronization system, transformer, switchgear, etc.

    Korea Doosan Diesel Generator 600kw Power Generator 750kva With Engine DP222LC

    Packing & Delivery

    Korea Doosan Diesel Generator 600kw Power Generator 750kva With Engine DP222LCKorea Doosan Diesel Generator 600kw Power Generator 750kva With Engine DP222LC

    FAQ

    1.What's our power capacity range of generator?
    Answer: We can offer the range from 10kva~3000kva genset, diesel generator, gas generator, marine generator.

    2. Besides power generator, what's your other product?

    Answer: We also provide lighting tower, air compressor, ATS, synchronization system, switchgear, transformer, engine spareparts.

    3. What's kind of generator type you produce?

    Answer: open generators, silent power generators, super silent genset, trailer genset, movable electric generator, reefer generator.
    4.What's your warranty?
    Answer: One year or 1000 hours, which one comes first.
    5.Can you use our logo?
    Answer: Yes, we can use customer's logo instead of ours.
    6. Can you accept small order?
    Answer: Yes, we can accept trial order.
    7.What's your delivery time?
    Answer: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
