Machinery Genset China Yuchai Diesel Engine Generator 250KW 313KVA

    Buy cheap Machinery Genset China Yuchai Diesel Engine Generator 250KW 313KVA from wholesalers

    Buy cheap Machinery Genset China Yuchai Diesel Engine Generator 250KW 313KVA from wholesalers
    • Buy cheap Machinery Genset China Yuchai Diesel Engine Generator 250KW 313KVA from wholesalers
    • Buy cheap Machinery Genset China Yuchai Diesel Engine Generator 250KW 313KVA from wholesalers
    • Buy cheap Machinery Genset China Yuchai Diesel Engine Generator 250KW 313KVA from wholesalers

    Machinery Genset China Yuchai Diesel Engine Generator 250KW 313KVA

    Ask Lasest Price
    Brand Name : Ai Power
    Model Number : AYC344
    Certification : CE, ISO9001
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 200 units per month
    Delivery Time : 30 to 35 days
    • Product Details
    • Company Profile

    Machinery Genset China Yuchai Diesel Engine Generator 250KW 313KVA


    Machinery Genset 250KW 313KVA China Yuchai Famous Engine Diesel Engine Generator For Sale


    Machinery Genset China Yuchai Diesel Engine Generator 250KW 313KVA

    Product characteristics:

    1. Our cooperate with famous diesel engine -Powered by famous YUchai engines.
    2. Equipped with famous Brushless alternator - Optional Stamford, Leroy Somer, Marathon, Meccalte.
    3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
    4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen, ComAp,
    5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
    6. Generator equipped with 24V DC battery with charger, battery connects wire.
    7. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
    8. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance


    Generator Specifications:


    GENERAL ENGINE DATA
    Engine manufactureGuangxi Yuchai Machinery Co., Ltd.
    Engine brandYUCHAI
    Engine modelYC6MK420L-D20
    Engine speed (rpm)1500
    Engine output(kWm)
    Standby Power309
    Prime Power281
    Engine Type4-Cycle, In-line, 6-Cylinder Diesel, water cooled
    Induction systemTurbocharged & Intercooled
    Bore x Stroke (mm)123*145
    Type of combustion chamberDirect-injection reentrant ω combustion chamber
    Number of valve per cylinder.4
    Displacment (litre)10.34L
    Compression Ratio16.8:1
    Cylinder typeWet-type cylinder sleeve
    Working sequence1-5-3-6-2-4
    Lubrication modeCombination of pressure and splashing
    Starting modeElectronic
    Engine oil capacity30L (dry-type engine)
    Engine oil and fuel consumption ratio≤0.1%
    RotationAnticlockwise (facing the power delivery end)
    Minimum no-load speed(650～700 )r/min
    Speed-regulation gradeISO 8528 G3
    Electrical device12V/24V electrical system
    Flywheel and flywheel housingSAE 14〞 flywheel
    Total dry weight
    Engine1030kg
    Radiator155kg
    FUEL SYSTEM
    fuel pump systemMechanical pump + electronic governor
    GovernorElectronic
    Fuel Consumption (litre/hour)
    standby power77.6
    prime power69.1
    75% power51.8
    50% power35.6

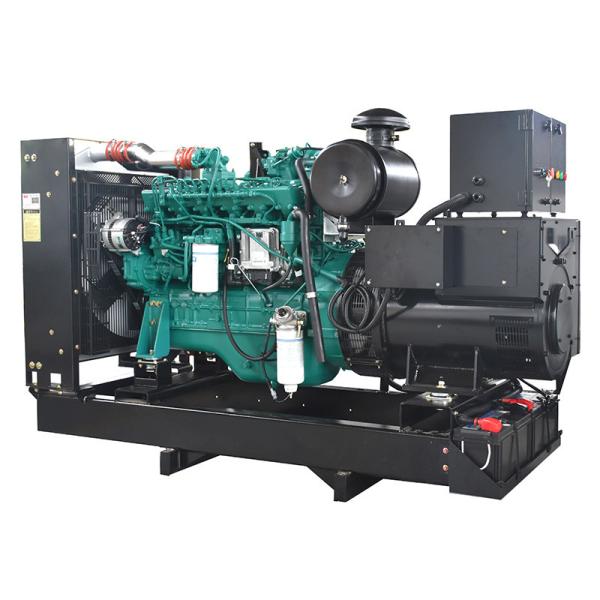

    Product Photo:

    Machinery Genset China Yuchai Diesel Engine Generator 250KW 313KVA


    Machinery Genset China Yuchai Diesel Engine Generator 250KW 313KVA


    Machinery Genset China Yuchai Diesel Engine Generator 250KW 313KVA


    Machinery Genset China Yuchai Diesel Engine Generator 250KW 313KVA


    Detection and protection function

    • Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt, Low water level,Three failed to start alarm

    • Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit

    Optional features

    • RS485 (DSE7320)RS485(DSE7320)

    • Fuel level display and low-alarm

    • Water level low-alarm

    • Water Pre- heating in low temperature

    • ATS

    • Automatic parallel (DSE6120 / DSE7320)

    • Other self-definition functions

    • big power 1mva silenced diesel generator set price


    FAQ

    1. Can you accept small order?

    A: Yes, we can accept trial order, it is the starting of business. But according to different product the price may be higher as normal quantity.


    2. What is your company product range?

    A: We are a professional turbocharger supplier, OEM and ODM are welcome.


    3. Do you inspect the product? How?

    A: Yes, each step of production and finished products will be carried out inspection by QC before shipping.


    4. What is your payment terms?

    A: T/T 30% advance payment, the balance 70% shall be paid before shipment, L/C at sight.


    5. What about your factory production capacity?

    A: 200pcs per month.


    6.What kind of transactions you can accept.

    A: We can accept FOB, CIF, CFR.
