Three Phase Alternator With 100KVA 125KVA Genset 80KW 100KW SDEC Diesel Generator

    Buy cheap Three Phase Alternator With 100KVA 125KVA Genset 80KW 100KW SDEC Diesel Generator from wholesalers

    Buy cheap Three Phase Alternator With 100KVA 125KVA Genset 80KW 100KW SDEC Diesel Generator from wholesalers
    • Buy cheap Three Phase Alternator With 100KVA 125KVA Genset 80KW 100KW SDEC Diesel Generator from wholesalers

    Three Phase Alternator With 100KVA 125KVA Genset 80KW 100KW SDEC Diesel Generator

    Ask Lasest Price
    Brand Name : Ai Power
    Model Number : ASC110
    Certification : CE, ISO9001
    Payment Terms : L/C, T/T,
    Supply Ability : 200 units per month
    Delivery Time : 30 to 35 days
    • Product Details
    • Company Profile

    Three Phase Alternator With 100KVA 125KVA Genset 80KW 100KW SDEC Diesel Generator


    High Quality Three-Phase Alternator Price With 100KVA 125KVA Genset 80KW 100KW SDEC Diesel Generator


    AI power SDEC series generator set adopts SDEC engine as the power source. Shanghai Diesel Engine Co., Ltd. (SDEC), with SAIC Motor Corporation Limited as its main shareholder, is a large state-owned high-tech enterprise engaged in research and development and manufacture of engines, engine parts, possessing a state-level technical center. Its former was Shanghai Diesel Engine Factory that was established in 1947 and was restructured into a stock-shared company in 1993 with shares of A and B.


    Three Phase Alternator With 100KVA 125KVA Genset 80KW 100KW SDEC Diesel Generator


    SDEC Engine Specifications:


    GENERAL ENGINE DATA
    Engine manufactureShanghai Diesel Engine Co., Ltd. (SDEC)
    Engine brandSDEC
    Engine model4HTAA4.3-G21
    Engine speed (rpm)1500
    Engine output(kWm)
     Standby Power105
     Prime Power95
    Engine Type4-Cycle, In-line, 4-Cylinder Diesel, water cooled, Turbo charged
    Bore x Stroke (mm)105*124
    Displacment (litre)4.3L
    Compression Ratio16:1

    FUEL SYSTEM
    Injection pumpLongkou in-line “P” type
    GovernorRSV
    Fuel Consumption (litre/hour)
     25% load6.5
     50% load11.8
     75% load17.1
     100% load23

    MECHANISM
    TypeOver head valve
    Number of valveIntake 2, exhaust 2 per cylinder
    Valve lashes at coldIntake 0.25mm, Exhaust 0.50mm

    ENGINEERING DATA
    Heat rejection to coolant9.6kcal/sec
    Air flow6.8m3/min
    Exhaust gas flow16.1m3/min
    Exhaust gas temp.600

    COOLING SYSTEM
    Cooling methodFresh water forced circulation
    Coolant capacity6.8L
    Water Temperature
     Maximum for standby and Prime (°C)100/104
     Before start of full load (°C)40
    Thermostat TypeWax–pellet type

    LUBRICATION SYSTEM
    Lub. MethodFully forced pressure feed type
    Oil pan capacityMax. 13 liters , Min. 11 liters
    Oil pumpGear type driven by crankshaft
    Oil filterFull flow, cartridge type
    Lub. OilRefer to Operation Manual


    ELECTRICAL SYSTE
    Battery Charging Alternator24V×55A alternator
    Starting motor24V×4.5kW
    Battery Voltage24V
    Battery Capacity120 Ah (recommended)

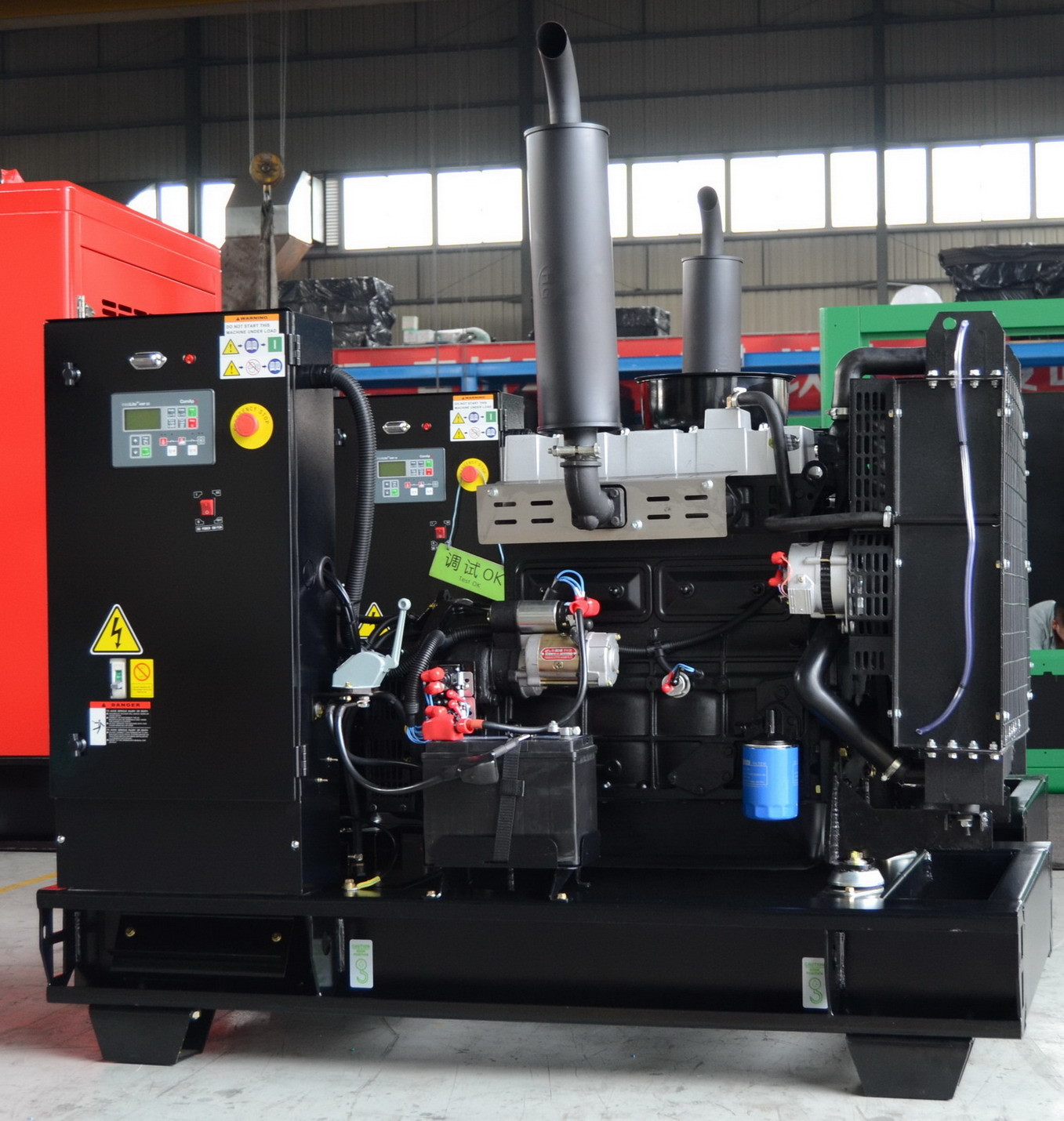

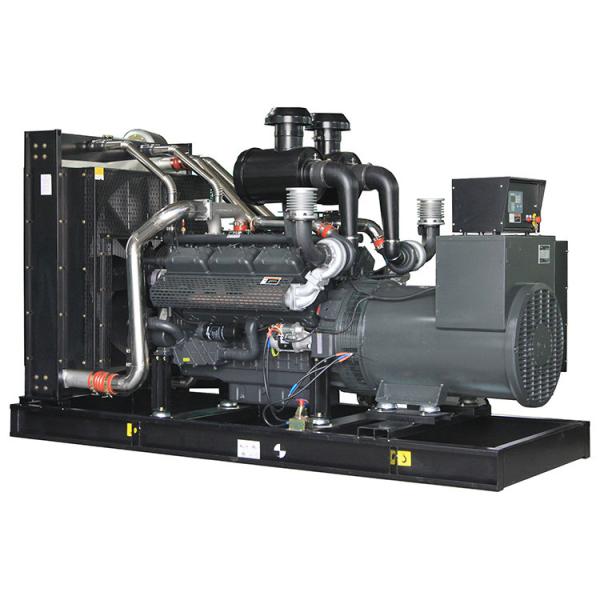

    Product Photos:

    Three Phase Alternator With 100KVA 125KVA Genset 80KW 100KW SDEC Diesel Generator


    Three Phase Alternator With 100KVA 125KVA Genset 80KW 100KW SDEC Diesel Generator


    Three Phase Alternator With 100KVA 125KVA Genset 80KW 100KW SDEC Diesel Generator


    Open Type.

    ● Famous brand engine couple with high quality alternator
    ● Large size cooling radiator
    ● Heavy duty steel base frame
    ● Strong anti-vibration mat
    ● Standard free maintenance battery
    ● AC alternator for battery charger
    ● Heavy-duty air filter, oil filter, water filter
    ● Famous brand controller and breaker
    ● Optional fuel tank, silent canopy, ATS, synchronization panels.


    FAQ

    1.What is your MOQ, payment method, delivery time?

    Answer: Our MOQ is only 1 set. Payment method usually is 30% T/T as deposit, 70% balance T/T before delivering.
    Or 100% L/C, trade assurance, paypal, western union. Delivery period normally will be 15~30 days after receiving customers' deposit.

    2. How about your guarantee?
    Answer: Our warranty period is 1 year or 1000 running hours, whichever comes first.

    3. Is there any spare parts you can provide along with generators to make the maintenance convenient?
    Answer: We can provide regular engine's air filter, water filter, fuel filter, oil filter to customers for self-maintenance.

    4.Can you offer parts to us if we need?
    Answer: Yes, we can offer parts to you at any time, not limited in warranty time. usually the parts can be sent out during 3-5days.
