Japan Kubota V1505 Diesel Engine Electrical

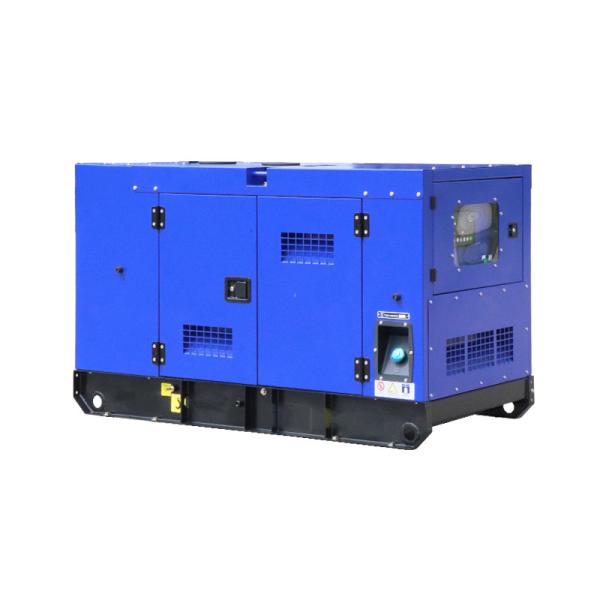

Generator Super Silent Denyo Diesel Generator
The Kubota V1505 is a four-cylinder diesel engine that belongs to
Kubota's V series of engines. It has a displacement of 1.5 liters
and a power output of up to 36 horsepower.
The V1505 engine is known for its durability, fuel efficiency, and
low emissions. It features a liquid-cooled system that helps to
regulate the engine temperature and maintain optimal performance.
The engine also has a low noise level, making it suitable for use
in noise-sensitive applications.
The V1505 engine is commonly used in a variety of applications,
including generators, construction equipment, compact tractors, and
small industrial equipment. It has a compact design and is easy to
install, which makes it a popular choice for manufacturers and
equipment owners alike.
In addition to its reliability and efficiency, the V1505 engine is
also known for its low maintenance requirements. It has a long
service life and is designed to operate in harsh environments.
Overall, the Kubota V1505 engine is a high-quality power source
that has proven to be a popular choice for a wide range of
applications. Its combination of durability, fuel efficiency, and
low emissions makes it a reliable and efficient engine for a
variety of equipment.
Engine Specifications:
| Engine | | | | | | | | | | | | | | | GENERAL ENGINE DATA | | | | | | | | Engine manufacturer | Kubota Engine Co., Ltd. | | Engine brand | Kubota | | Engine model | V1505 | | Brake Horse Power ( kW/rpm) | | | Stand-by Power (PS/rpm) | 15.1/1800 (20.5/1800) | | Continuous Power (PS/rpm) | 13.4 /1800 (18.2/1800) | | No. of Cylinder | 4 | | Aspiration | Naturally Aspirated | | Bore * Stroke (mm) | 78.4 | | Displacment (litre) | 1.498 | | Compression Ratio | 24.0 | | | | | | | | | | | | | | | | | | | | | | | | | | | | EXHAUST SYSTEM | | | Maximum Back Pressure (kPa) | 7.07 | | Combustion Air Requirements ( 25℃ and 750mmHg) (m3/min) | 1.17 | | Exhaust Gas Volume ( 25℃ and 750mmHg) (m3/min) | 2.84 | | | | | | | | | | | | | | | AIR INDUCTION SYSTEM | | | Maximum Intake Air Restriction (kPa) | 1.96 | | | | | | | | | | | | | | | LUBRICATION SYSTEM | | | Lubricating System | Forced Lubricating by Trochoid Pump | | Lubrication Oil | Class CF lubricating oil as per API classification is recommended | | Lub.Oil Capacity | 6.7 | | | | | | | | | | | | | | | COOLING SYSTEM | | | Ho(Heat Rejection to coolant) (kcal/h) | 15,360 |
|
Product Details
Open Type:
● Famous brand engine couple with high quality alternator
● Large size cooling radiator
● Heavy duty steel base frame
● Strong anti-vibration mat
● Standard free maintenance battery
● AC alternator for battery charger
● Heavy-duty air filter, oil filter, water filter
● Famous brand controller and breaker
● Optional fuel tank, silent canopy, ATS, synchronization panels.
Silent Performance Features:
● More than 2mm thick steel to make the canopy.
● High quality paint materials and strict powder paint processing.
● large-scale impedance combined type silencer effectively reducing
noise of the generator.
● Stainless steel door locks and hinges and 180° revolvable and
disassemble door for easy maintenance.
● High quality soundproof and insulation materials could
efficiently reduce noise.
● Transparent viewing window make the control panel clear at a
glance.
● Lifting ear is mounted in the base frame for easy pull.
● Elegant appearance and reliable quality.
● From 10kva to 700kva we use normal silent canopy, more than
700kva we are using containerized canopy.
● ISO standard 20’, 40’ and 40HQ sea container canopy for options.
● Standard sea container canopy is easier for shipping.
1. What is your warranty period?
A: It’s 1 year or 1000 running hours whichever comes first. But
based on some special project, we can extend our warranty period.
2. Can you accept OEM?
A. Yes, we can accept OEM.
3. What’s your payment term?
A: We can accept T/T 30% in advance and the balance 70% shall be
paid before shipment or LC at sight.
4. What’s your delivery time?
A: Our normal delivery time is 2 to 4 weeks. But if your order is
some special engine and alternator, the delivery time will be
longer.
