Big Power Generator 1500KVA Perkins Diesel Generator Dealer
4012-46TAG2A WIth Radiator
The Perkins® 4000 Series family of 6, 8, 12 and 16 cylinder diesel
engines, designed to address today’s uncompromising demands
within the power generation industry with particular aim at the
standby market sector. Developed from a proven engine range that
offers superior
performance and reliability.Phase Rating, 50Hz, PF 0,8
| Genset | AP1500 |
| Voltage | 220/380V,270/480V,127/230V |
| Engine | 4012-46TAG2A |
| Prime Power/Standby Power | 1200KW/11500KVA |
| Alternator | Leroy-somer,stamford,AOSIF |
| Controller | Deepsea 6120 |
| Circuit Breaker | DELIXI/CHINT/ABB/SCHNEIDER |
| Type | Open/Silent |
| Fuel Tank | Base Tank,External Daily Fuel Tank. |

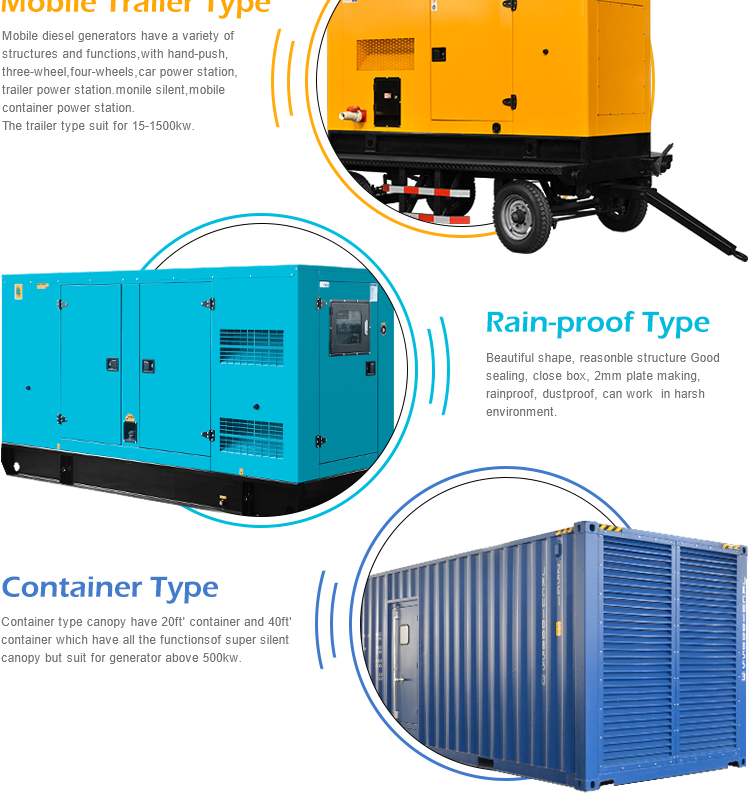

| Optional supporting products | Moveable/Trailer Type Diesel Generator /Synchronization System
Automatic Transfer Switch /Dummy Load Day Tank |
With Engine Perkins 4012-46TAG2A
| Brand&model | Perkins 4012-46TAG2A |
| Prime Power | 1267kw |
| Cylinders | 12 in V type arrangement |
| Bore*Stroke | 160*190mm |
| Displacement | 45.84L |
| Lubrication Oil Capacity | 177L |
| Fuel Consumption at 100% Load | 200g/kw.h |
| Governor type | Electronic |
With Alternator Specs
| Optional Brands | Stamford/Leroy Somer/Faraday/Marathon |
| Exciter type | Single bearing,brushless,Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| · Diesel engine | · 40℃ water cooled radiator |
| · Alternator | · Silencer and flexible exhaust hose |
| · Starting batteries and battery connect wires | · Digital control panel |
| · Output circuit breaker | · Steel base frame |
| · Sound proof | · Water heater |
| · Automatic parallel synchronizing control system | · ATS |
| · 50℃ water cooled radiator |
AI Power series generators are powered by international and Chinese
famous engine,such as by CUMMINS engine , by PERKINS engine , by
Sweden original VOLVO engine, South Korea original DOOSAN engine,
WEICHAI engine, YUCHAI engine and SDEC engine,etc,which match the
world-class alternators,Such as STAMFORD, MARATHON, LEROY
-SOMER,MECC ALTE,HENGSHENG and other Chinese well-known brands in
order to ensure excellent quality of our products.About the
controller, we mainly use DEEPSEA,COMAP,SMARTGEN.
Xiamen Ai Power Technology Co.,Ltd. located in Xiamen city, Fujian Province, We have modern assembly
workshop to produce diesel generator sets. AI Power devote itself
into researching ,manufacturing and installing superb diesel
generator sets ,power range from 2kva to 4000kva,include silent
type, container type, mobile power station, multiple parallel,
remote control and so on.
As the ideal emergency standby power equipment, diesel generator
sets are widely used in industrial and mining enterprises,
communication, army, ports, highway, railway, hotels etc places.
