1350KVA Standby Perkins Diesel Generator Set 1500KVA 2500A

    Buy cheap 1350KVA Standby Perkins Diesel Generator Set 1500KVA 2500A from wholesalers

    Buy cheap 1350KVA Standby Perkins Diesel Generator Set 1500KVA 2500A from wholesalers
    • Buy cheap 1350KVA Standby Perkins Diesel Generator Set 1500KVA 2500A from wholesalers
    • Buy cheap 1350KVA Standby Perkins Diesel Generator Set 1500KVA 2500A from wholesalers
    • Buy cheap 1350KVA Standby Perkins Diesel Generator Set 1500KVA 2500A from wholesalers

    1350KVA Standby Perkins Diesel Generator Set 1500KVA 2500A

    Ask Lasest Price
    Brand Name : Ai Power Perkins 1350kva Generator Set
    Model Number : AP1485
    Certification : CE, ISO9001
    Price : USD 140000 to 150000 Per Unit Negotiable
    Payment Terms : Western Union, L/C, T/T, MoneyGram
    Supply Ability : 300 Units Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

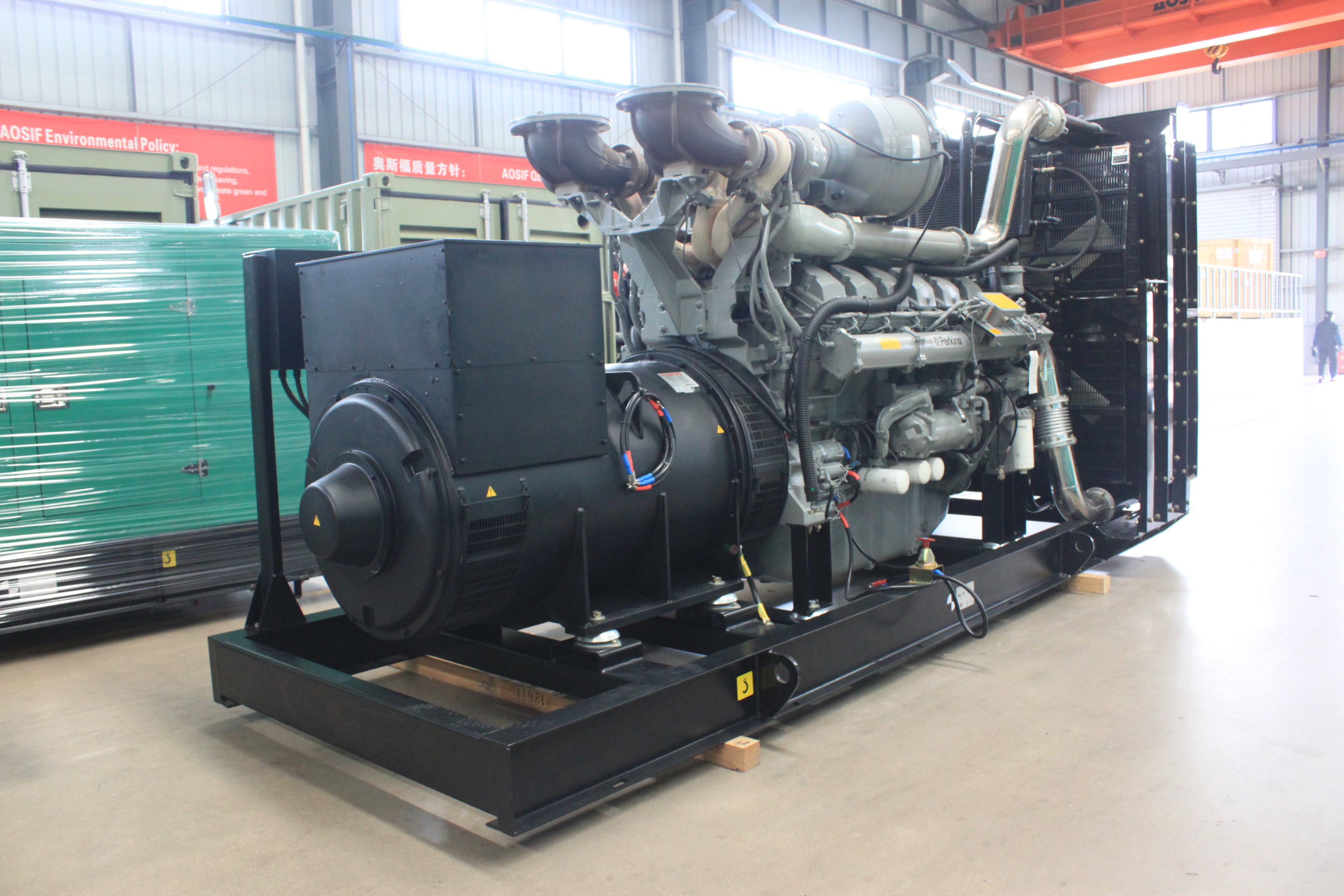

    1350KVA Standby Perkins Diesel Generator Set 1500KVA 2500A

    Water Cooled With 8 Hours Fuel Tank 1350KVA Perkins Generator Open Type Silent Type


    AI Power Factory Introduction


    Xiamen Ai Power Technology Co.,Ltd. located in Xiamen city, Fujian Province. We have modern assembly workshop to produce diesel generator sets. AI Power devote itself into researching ,manufacturing and installing superb diesel generator sets ,power range from 2kva to 4000kva,include silent type, container type, mobile power station, multiple parallel, remote control and so on.


    Whole Generator Set Output Ratings


    Generator set modelVoltageHzPhaseP.F.Prime PowerStandby Power
    (V)KVAKWKVAKW
    AP1500230/4005030.81350108015001200

    4000 Series 4012-46TWG3A Engine Data
    The 4012-46TWG engine has been developed using the latest engineering techniques and builds on the strengths of the already very successful 4012 Series family and addresses today’s uncompromising demands within the power generation industry.
    Engine manufacturePerkins Engines Company Limited
    Engine brandPerkins
    Engine model4012-46TWG3A
    Engine speed (rpm)1500
    Baseload powerPrime powerStandby power
    Gross engine power (kWb)96012001314
    Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)86410921200
    Cylinders12-cylinder, 60° Vee
    Cycle4 stroke
    Induction systemTurbocharged
    Combustion systemDirect injection
    Compression ratio13:01
    Bore * Stroke (mm)160 * 190
    Cubic capacity (Litre)45.842

    Alternator Specs


    Optional BrandsStamford/Leroy Somer/Faraday/Marathon
    Exciter typeSingle bearing,brushless,Self-excited
    Power factor0.8
    Voltage adjust range≥5%
    Insulation GradeH
    Protection GradeIP23


    What is the difference between ECM and ECU?
    The ECM takes the information from the engine's various sensors, and uses that information to calculate and tune engine spark and fuel for maximum power and efficiency. The ECU plays a crucial role in newer vehicles, where many (if not all) of the essential functions of the car are controlled by the ECU.
    Electronic control modules
    An electronic control unit (ECU) or electronic control module (ECM) controls a series of actuators in the diesel engine to ensure optimal engine performance through electronic control. Modern diesel engines have a number of sensors within the engine and machine which provide readings to the ECU. The ECU adjusts the actuators to deliver the correct performance such as fuel / air mix, idle speed, pressures, wastegate control and other functions. Perkins defines the ECU programming for each engine to meet the application and engine demands. Contact your local Perkins distributor for assistance in ECU programming and application advice.more information Feel Free To Contact Us At Any Time
