50 Degree 1000kva Soundproof Perkins Diesel Generator Set 4008TAG2

Ask Lasest Price
Brand Name :	Ai Power 900KW 1125KVA Perkins Diesel Power Prise
Model Number :	AP1125
Certification :	CE, ISO9001
Price :	USD 100000 to 110000 Per Unit Negotiable
Payment Terms :	Western Union, L/C, T/T, MoneyGram
Supply Ability :	300 Sets Per Month
Delivery Time :	30 Days

Add to Cart

Product Details
Company Profile

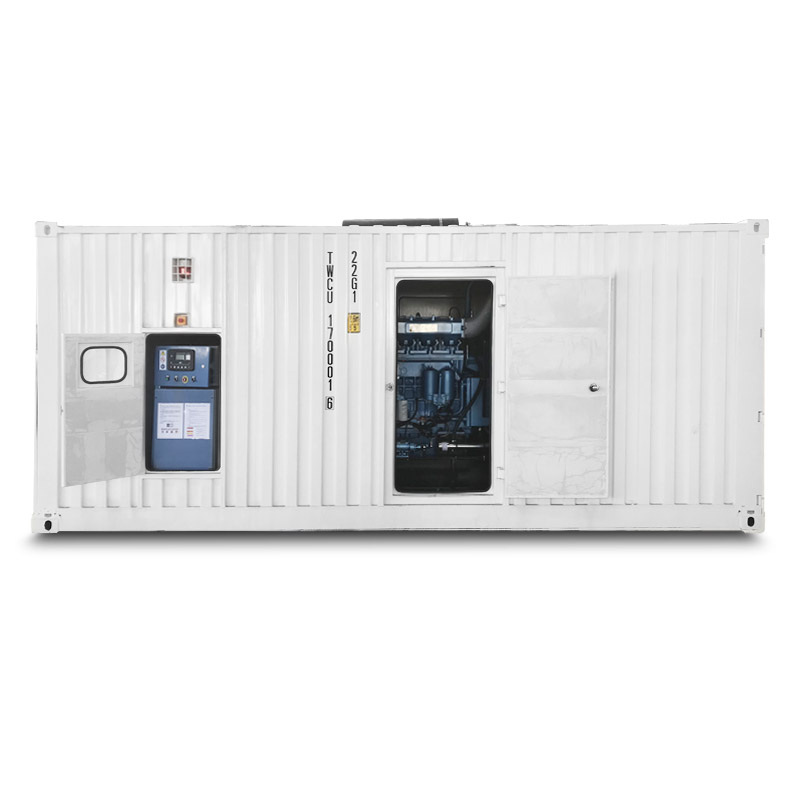

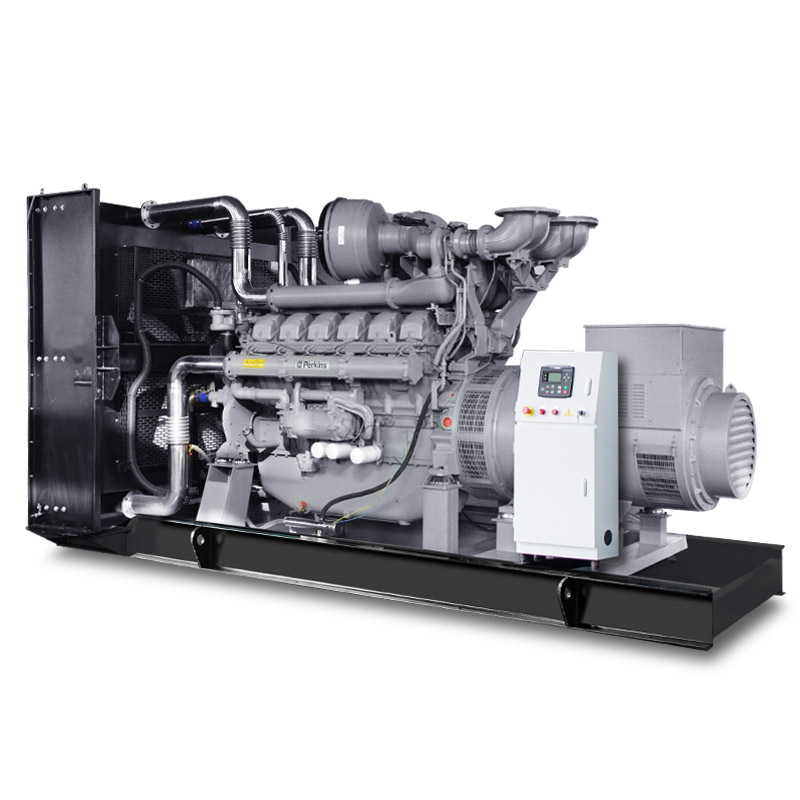

50 Degree 1000kva Soundproof Perkins Diesel Generator Set 4008TAG2

Temperature At 50 Degree 1000kva perkenes generator perkins diesel engine model 4008TAG2

ElectropaK 4008TAG2 1055 kWm @ 1500 rpm net standby power

Features and benefits

Dependable power

Individual 4 valve cylinder heads giving optimised gas flows

Unit fuel injectors ensure ultra fine fuel atomisation and hence controlled rapid combustion

Commonality of components with other engines in the 4000 Series family for reduced stocking levels

Capable emissions of 1/2 TA Luft (1986)

Features and benefits

Low operating costs

Oil change service intervals are set at 500 hours as standard

Designed to provide low cost of ownership, simple maintenance and reduced downtime

Class leading warranty

Prime power - 12 months unlimited hours.

For engines that operate less than 6,000 hours the warranty is available for two years or until the application reaches 6,000 hours

(whichever is sooner).

Standby power - three years or 1,500 hours (whichever is sooner).

See Perkins Warranty Policy for further details

Perkins Platinum Protection - comprehensive cover from as little as 5 percent* of the cost of your engine

Talk to your local distributor or visit www.perkins.com/platinum protection for more details

Output Ratings

Generator set model	Voltage	Hz	Phase	P.F.	Prime Power		Standby Power
Generator set model	(V)				KVA	KW	KVA	KW
AP1100	230/400	50	3	0.8	1000	800	1100	880

Dimension & weight

Generator set model	Type	LWH(mm)	Weight(kg)

AP1100	Open	463020302400	8100
	Silent	570022802500	10200

Other datas

Circuit Breaker capacity (A)			1600
Battery brand			Varta
Base Fuel Tank Capacity(L)			N/A

GENERAL ENGINE DATA

Engine manufacture

Perkins Engines Company Limited

Engine brand

Perkins

Engine model

4008TAG2A

Engine speed (rpm)

1500

Baseload power

Prime power

Standby power

Gross engine power (kWb)

719

899

985

Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)

657

828

910

Cylinders

8-cylinder, in line

Cycle

4 stroke

Induction system

Turbocharged

Combustion system

Direct injection

Compression ratio

13.6:1

Bore * Stroke (mm)

160 * 190

Cubic capacity (Litre)

30.561

Alternator Specs

Alternator	Famous brand	Leroy somer, Stamford, Marathon,Meccalte
	China Brand	Ai Power, Kaijieli
Power Range	5kw to 3000kw
Insulation class	H
Phase/Wire	3 phase/ 4 wire	1 phase/ 2 wire

Control panel:Deepsea,Comap

Brand

Deepsea/ComAp/Smartgen

The control module gives digital readouts of:

Generator voltage;

Output frequency;

Engine speed;

Battery voltage;

Engine hours run.

The control module has indicators for failure

information:

Overspeed/underspeed,

Emergency stop

Low oil pressure;

High water temperature

Failure to start

Battery charger failure

Automatic shutdown occurs under:

Low engine oil pressure;

High engine water temperature;

Overspeed/underspeed;

Failure to start after three attempts.

Optional-addtional parts :800 kw diesel generator price

Engine	Fuel System	Cooling system	Exhaust system
Coolant Heater Lube oil heater Electronic governor Engine oil temperature	External Tank Water Separator	50-60 Radiator, Remote radiator Cooling tower	Heavy Duty air filter Silencer Enclosures
Alternator	Control System	Others	Voltage Connections
Anti Condensation Heater Permanent Magnet Generator-PMG Drop CT-for paralleling	Remote Control Panel Auto Transfer Switch ATS-Control Panel Paralleling System Electricity Output Cabinet	Rainproof Type Soundproof Type Containerized Type Trailer Type Spare Parts	480/277V 440/254V 416/240V 400/230V 380/220V 240/139V 220/12 V 208/120V
High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available

About US

AI Power Factory Introduction

High quality, reliable and complete power unit

Compact design

Easy start and maintenance possibility

Every generating set is subject to a comprehensive test program which includes full load testing, checking and provision of all control and safety shut down functions testing

Fully engineered with a wide range of options and accessories: Canopy, sound proof canopy and on - road trailer
