US EPA certified 100kva Volvo Penta Power Generator Sets Suppliers
Ai power Volvo brand generator set adopts Sweden origin Volvo
engine as the power source. It’s one of the world’s leading diesel
engine manufacturers, covers power from 100kva to 700kva range, it
is good structure, reliable performance, easy maintenance, low
exhaust and long period maintenance. Volvo engine whole seris has
emmission certificate, so it is widely used in USA and European.
Volvo 100kva Diesel Generator Specification
| Generator set model | Voltage | Hz | Phase | P.F. | Prime Power | Standby Power |
| (V) | | | | KVA | KW | KVA | KW |
| AV110 | 230/400 | 50 | 3 | 0.8 | 100 | 80 | 110 | 88 |
Volvo Diesel Generator Specification
| Engine manufacturer | Volvo Engines Company Limited |
| Engine brand | Volvo |
| Engine model | TAD531GE |
| Engine speed (rpm) | 1500 |
| Engine output(kWm) | |
| | Standby Power | 98 |
| | Prime Power | 88 |
| | Continuous Power | TBD |
| No. of Cylinder | 4 |
| Aspiration | Turbochanger |
| Bore * Stroke (mm) | 108 * 130 |
| Displacment (litre) | 4.76 |
| Compression Ratio | 18:1 |
| Type | 4 stroke cycle , Vertical in-line, |
AC 400V Brushless Alternator Specification
| Alternator manufacturer | Leroy-somer Electro-technique (Fuzhou) Company Ltd. |
| Alternator brand | Leroysomer |
| Alternator model | TAL-A44-D |
| Control system | SHUNT |
| A.V.R. | Included |
| Voltage regulation | ±1.0% |
| Insulation system | Class H |
| Protection | IP23 |
| Rated power factor | 0.8 |
| Winding pitch | Two thirds |
| Winding leads | 6 |
| Frequency (Hz) | 50 |
| Voltage (V) | 400 |
| Phase | 3 |
| Output ratings (kVA/kW) | |
| ----------------Cont.H-40°C | 100/80 |
| ----------------Standby-27°C | 110/88 |
| THF | <2% |
| TIF | <50 |
| Max. overspeed (Rev/Min) | 2250 |
| Bearing | Single |

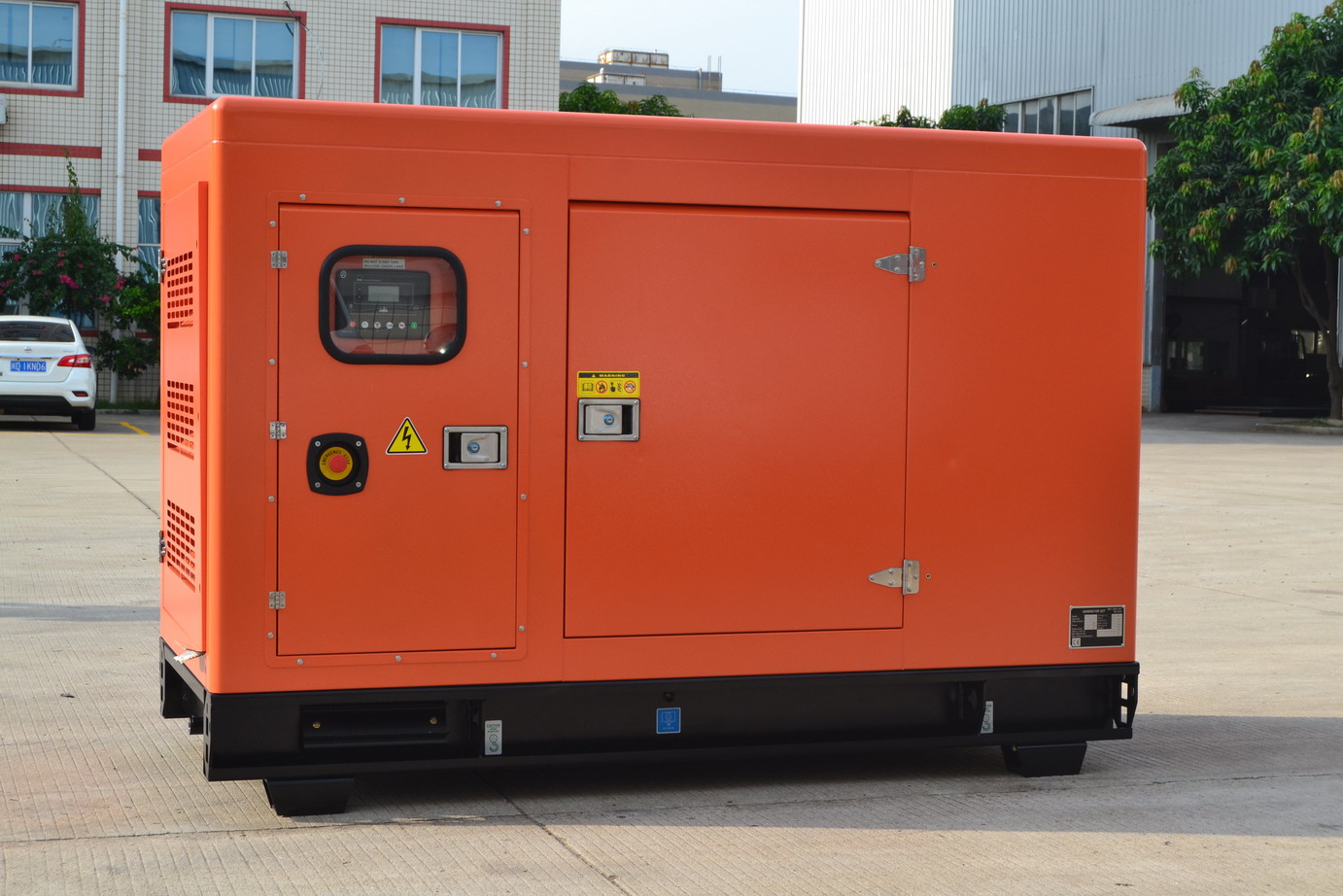

Volvo Open and Silent Diesel Generator Overview

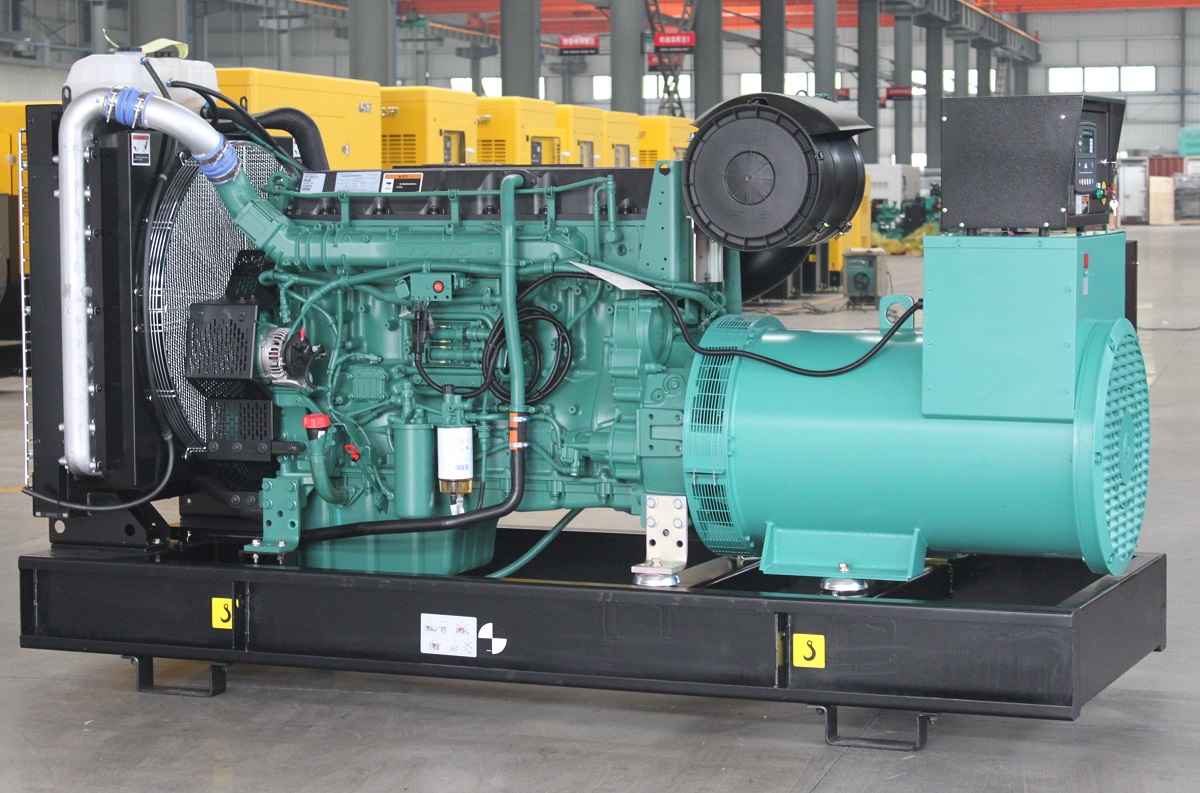

The generator set standard configuration:
1. Assembled by Volvo diesel engine and high quality branded
alternator.
2. Radiator and fan with safety guard, or heat exchanger.
3. Heavy duty steel base frame with great capacity fuel tank for
options.
4. Vibration damping supports between engine/alternator and base
frame.
5. Heavy duty industrial type exhaust silencer with flexible
bellow.
6. High capacity sealed lead acid battery with battery cable.
7. Intelligent control panel, Deepsea or Comap brand for options.
Ai Power Generator set Factory Overview
Ai Power products adopts internationally and domestically reputed
high-quality engines and alternators including Cummins engine,
Perkins engine, MTU from Germany, Doosan from South Korea,
Mitsubishi from Japan, Volvo from Sweden, Stamford, LeroySomer, and
Marathon for our industrial diesel generator sets, marine
generator, movable generator, lighting towers, generator spare
parts. Those products are featured by personalization,
intelligence, environmental protection and high quality. They are
widely used in buildings, hospitals, banks, mine, ports,
construction, data center, power station and high voltage projects.
Ai Power Generator Set Packing and Delivery
Our generator set is deliveried by sea, some generator spare parts
and ATS can be deliveried by air, our standard packing of the
generator is foam and film package, when it is loading into
container, it will be fixed to the container base and rings.
Ai Power Generator Certificate
