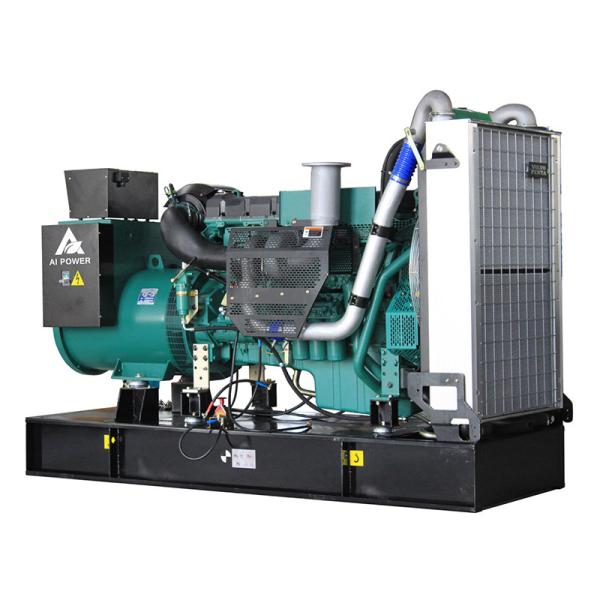

TAD733GE Volvo Diesel Generator Set

Industrial Diesel Generator Diesel Driven Generator TAD733GE 160kw 200kva Standby Generators

No. of cylinders: 6 – Displacement: 7.15l – Layout: inline – Min. Power: 176kW – max. Power: 194kW – RPM: 1500

No. of cylinders 6
Displacement 7.15 l
Layout inline
Min. Power 176 kW
max. Power 194 kW
RPM1500
Tier Max.EU II
Aspiration N
Weight 900 kg
Type of cooling w
Bore108 mm
Stroke130 mm

Model

Voltage

P.F

(COS)

Standby Power

Prime power

AI-V160GF

380/220V(adjustable)

0.8

176KW

160KW

Engine Model	TAD733GE
Number of Cylinders	6 cylinders, Vertical in line
Cycle	4 stroke
Aspiration	Turbocharged
Bore×Stroke	108mm x130mm
Displacement	7.15
Compression ratio	18:1
Prime Power/Speed	175KW / 1500rpm
Standby Power/Speed	195KW / 1500rpm
Speed Governor	electrical
Cooling System	Forced water cooling cycle
Steady speed droop	≤1%
Total lubrication system capacity	34L
Fuel Consumption at 100% Load	216g/kw.h
Starter Motor	DC24V,
Alternator	DC24V

Alternator Spec

Coupled with Stamford alternator (enjoy 3 years' worldwide warranty) 200kva diesel generator

Alternator brand	Stamford
Alternator model	UCI274H
Prime power	160KW
Frequency/speed	50Hz/1500rpm
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23

Prime power

This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.

Standby power

This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.

General features:

Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

24V DC start motor;

Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;

Equipped with industrial silencer and flexible exhaust hose;

Designed to Comply with ISO8528/GB2820;
