1500RMP Diesel Power Chinese Diesel Generator 170 Kwm Yuchai YC6A230L-D20

Product Categories

Xiamen Ai Power Technology Co., Ltd.

Contact Now

1500RMP Diesel Power Chinese Diesel Generator 170 Kwm Yuchai YC6A230L-D20

Ask Lasest Price
Certification :	ISO
Brand Name :	AI Power
Model Number :	AYC193
Supply Ability :	100 Set/Sets per Month
Price :	$8,800.00/Sets >=1 Sets
Payment Terms :	Western Union, L/C, T/T, MoneyGram
Delivery Time :	30 Days

Add to Cart

Product Details
Company Profile

1500RMP Diesel Power Chinese Diesel Generator 170 Kwm Yuchai YC6A230L-D20

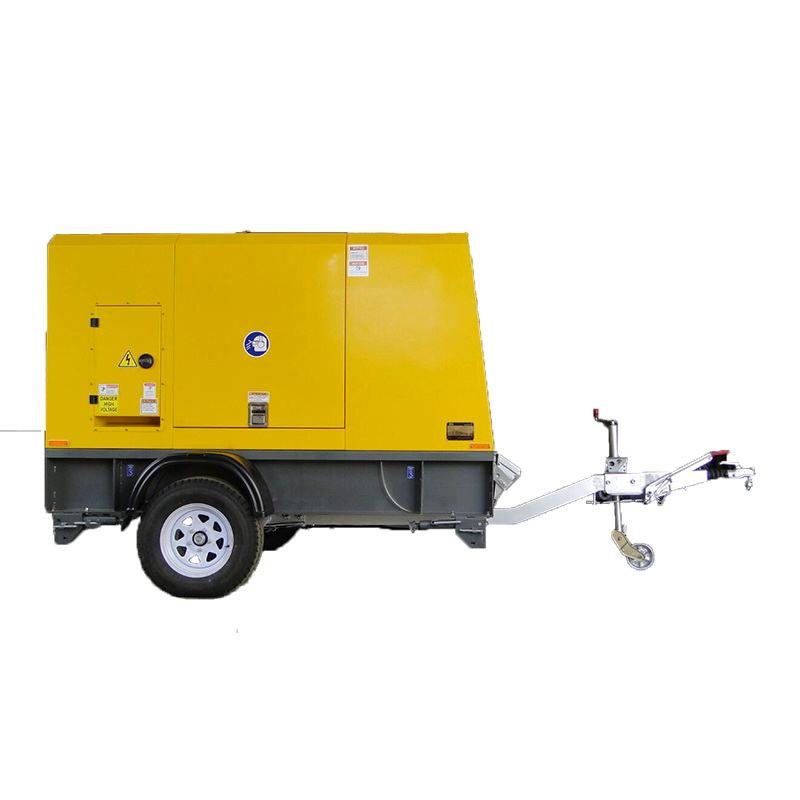

China generator electric max power diesel generator mobile generator trailer

AI power Yuchai series generator set adopts Yuchai engine as the power source. Guangxi Yuchai Machinery Group Co., Ltd. was founded in 1951. As a large-sized modern enterprise group integrating the engine industry chain with the petrochemical industry chain and conducting diversified industrial operation, the company have become a domestic leading industrial conglomerate through lean management and group operation.

Engine:

Engine manufacture	Guangxi Yuchai Machinery Co., Ltd.
Engine brand	YUCHAI
Engine model	YC6A230L-D20
Engine speed (rpm)	1500
Engine output prime(kWm)	170
Engine output standby(kWm)	155
Engine Type	4-Cycle, In-line, 6-Cylinder Diesel, water cooled
Induction system	Turbocharged & Intercooled
Bore x Stroke (mm)	108*132
Type of combustion chamber	Direct-injection reentrant ω combustion chamber
Number of valve per cylinder.	2
Displacment (litre)	7.26L
Compression Ratio	17.5:1
Cylinder type	Wet-type cylinder sleeve
Working sequence	1-5-3-6-2-4
Lubrication mode	Combination of pressure and splashing
Starting mode	Electronic
Engine oil capacity	22L (dry-type engine)

Alternator:

Alternator manufacturer	Fujian Kwise Generator Co., Ltd.
Alternator brand	Kwise
Alternator model	S274G140C7
Control system	SELF EXCITED
A.V.R.	Included
Voltage regulation	±1.0%
Insulation system	Class H
Protection	IP23
Rated power factor	0.8
Winding pitch	Two thirds
Winding leads	12
Frequency (Hz)	50
Voltage (V)	400
Phase	3
Output ratings (prime)	175/140
Output ratings (standby)	200/160
THF	<5%
TIF	<50
Max. overspeed (Rev/Min)	2250
Bearing	Single

Product Detailes

1.Control panel
2.High quality 3P Circuit breaker and terminal output
3.Strong hoisting structure
4.Durable stainless steel hinges
5.High performance exhaust silencer
6.Radiator coolant refill

1.Assembled by Yuchai diesel engine and high quality branded alternator.
2.Radiator and fan with safety guard, or heat exchanger.
3.Heavy duty steel base frame with great capacity fuel tank for options.
4.Vibration damping supports between engine/alternator and base frame.
5.Heavy duty industrial type exhaust silencer with flexible bellow.
6.High capacity sealed lead acid battery with battery cable.
7.Intelligent control panel, Deepsea or Comap brand for options.

Open Type.
● Famous brand engine couple with high quality alternator
● Large size cooling radiator
● Heavy duty steel base frame
● Strong anti-vibration mat
● Standard free maintenance battery
● AC alternator for battery charger
● Heavy-duty air filter, oil filter, water filter
● Famous brand controller and breaker
● Optional fuel tank, silent canopy, ATS, synchronization panels.

Silent Performance Features:
● More than 2mm thick steel to make the canopy.
● High quality paint materials and strict powder paint processing.
● large-scale impedance combined type silencer effectively reducing noise of the generator.
● Stainless steel door locks and hinges and 180° revolvable and disassemble door for easy maintenance.
● High quality soundproof and insulation materials could efficiently reduce noise.
● Transparent viewing window make the control panel clear at a glance.
● Lifting ear is mounted in the base frame for easy pull.
● Elegant appearance and reliable quality.
●From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.
● ISO standard 20', 40' and 40HQ sea container canopy for options.
● Standard sea container canopy is easier for shipping.

1500RMP Diesel Power Chinese Diesel Generator 170 Kwm Yuchai YC6A230L-D20

AI Company

Advanced&Intelligent.

Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province, It is dedicated to becoming a comprehensive company for intelligent power and green energy supply.Our company aim to create a better life for the world by supplying better power solutions. Continually improving products' quality, friendly-use and durability is our long-term mission. We will make all the efforts to walk a long way to reach customers' greatest satisfaction.

Packing & Delivery

FAQ

1. What is your warranty period?
A: It's 1 year or 1000 running hours whichever comes first. But based on some special project, we can extend our warranty period.

2. Can you accept OEM?
A. Yes, we can accept OEM.

3. What's your payment term?
A: We can accept T/T 30% in advance and the balance 70% shall be paid before shipment or LC at sight.

4.What's your delivery time?
A:Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
