Lithium Battery 500w Portable Station Wireless Power Bank 500W

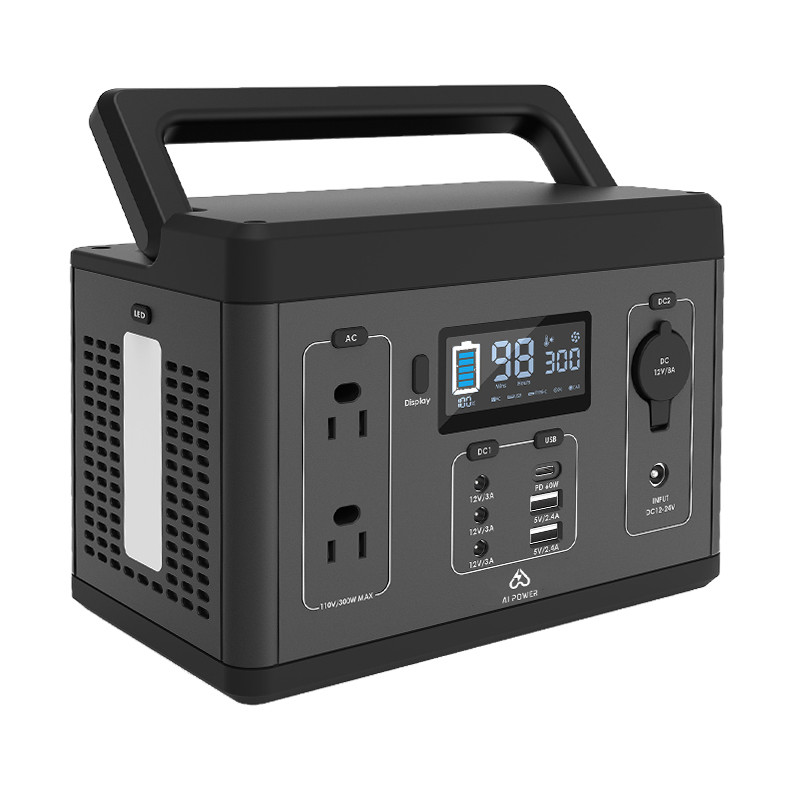

560Wh Portable Power Station
Xiamen Ai Power Technology Co., Ltd. focus on the portable solar
generator, residential and small commercial energy storage station.
Our outdoor portable power station have covered a full power series
300W, 500W, 600W, 1000W, 1200W, 2000W with CE, Rohs, ETL etc
certificates.
Our main products portable power generators have been widely
exported to USA, European, Japan, Asia, South America etc, we
welcome OEM and ODM orders, we are looking forward to cooperate
with more business partners to develop the world markets together.
500W Solar Portable Power Generator Specifications:
| Capacity: | Lithium battery 21.6V 26AH 560WH | Solar Panel Input: | DC12V~24V/7A Max |
| AC output Power: | Rated Power 500W Peak Power 1000W | Product size: | 294*164*180mm |
| AC Input Voltage: | 100V-240V 50/60Hz | Manner of packing: | Color box |
| AC Output Voltage: | 100V55HZ / 110V60Hz / 230V 50Hz(Other voltage for Europe also have) | Single weight: | 5.75KGS |
| LCD Display function: | Real-time Working state | QTY / Carton: | 2PCS/Carton |
| DC Output 1: | 12.8V 3A *2 | N.W./G.W | Updating |
| DC Output 2: | Cigarette Lighter Socket regulated 12.8V/10A | Carton Size: | Updating |
| USB Output(4 ports): | QC3.0* 2+PD 60W*2 | Warranty period: | 12 months |
| AC Output Socket | U.S.Outlets* 2 | MOQ: | 200PCS |
| LED Light: | H/M/L 3 Levels with SOS | Certificates: | PSE/ETL/CE/MSDS/UN38.3 |
| Output waveform: | Pure Sine Wave | Accessories: | 1* AC Adapter 24V 5A, 5hours Full Charged |
| Battery cycle life: | 800 times DOD≥80% | 1*DC Car charger cable |
Outdoor 500W Solar Power Bank Generator Details
Without car ignition function
For the sake of safety, the car point will instantly generate a
large current, easy to burn out.
Battery power: 1000WH, overall power: 1000W
It can be used for nearly 8 hours for a 120W air conditioner.
The filling time is about 9 hours
According to the built-in adapter 26V / 4.5a, the calculated power
is 117w
Solar panel input can be used to charge it. 100W Anderson interface
is recommended
The conversion rate of solar light is only 85%, which is only 85W
when converted to 100W. The maximum receiving power of G1000 is
150W, which takes 13 hours to charge.
Q: How to choose the capacity of portable energy storage power supply?
How long can it be used?
A: For example, if a 60W floor fan is carried and our BPS500P
(481wh) is used for power supply, the service time when fully
charged is 481 * 0.85 / 60 = 6.8 hours.
Please note: the duration of use will change under different
circumstances.
Q: How to match solar panels with energy storage products?
A: BPS500P is recommended to be equipped with 18V 100W ~ 150W solar
panel, and the interface should be DC 5.5 * 2.1mm. A380 is
recommended to be equipped with 18V 50W ~ 100W solar panel, and the
interface should be DC 3.5 * 1.35mm.
Q: How long can energy storage products be fully charged?
A: BPS500P will be fully charged in 10 hours if the standard power
line is used;
If the A380 uses the standard adapter, it will take about 8 hours
to fill up.
Q: Can the energy storage power supply discharge while charging (AC
output or DC / USB output)?
A: BPS500P can support it. This model has UPS function, and the
instantaneous peak power of UPS can reach 1000W; other models do
not support discharging while charging.
Q: Can I bring the energy storage power to the plane?
A: At present, the power range of our series of energy storage
products is 150wh / 200wh / 288wh / 444wh, which is higher than
100wh required by aviation. Therefore, it is not allowed to be
carried on the aircraft, and it needs to be checked by cargo.
