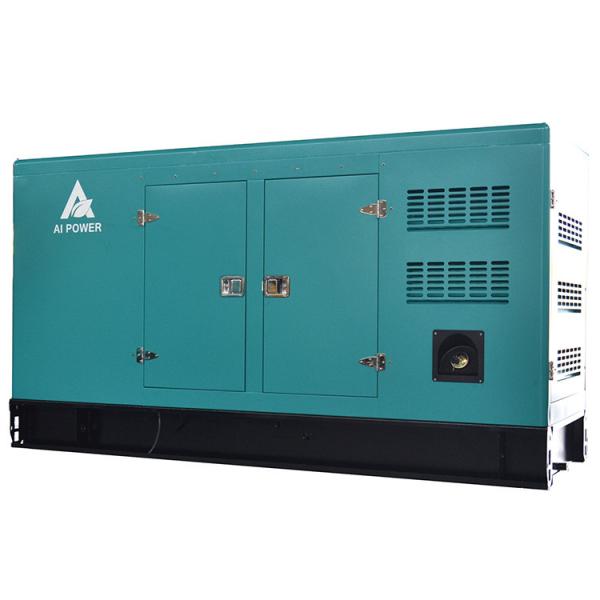

100kw 125kva Ricardo Chinese Diesel Generator Kofo R6105AZLDS

100kw 125kva electric generator set chinese ricardo generator kofo R6105AZLDS generator for sale

TECHNOLOGY FEATURES:
1. Adopt the unit pump structure tested for 15 years in European
markets, stable performance, reliable and average heavy repair
mileage is 100,000 kilometers higher than other kind products, with
30 days more attendance in a year.
2. Adopt structures off the unit pump with the highest injection
pressure and top built intake duct, short and high pressure pipe,
met the emission standard, save 2 to 3 liters fuel per one hundred
kilometers compared with other kind products.
3. Unique single injection pump fuel supplying system, low
requirements for fuel quality, adaptable to Chinese fuel quality
and guaranteed the reliability of the complete engine.
4. Noise lower than 96 decibels, the only one engine met the
standard without assistant approaches in China.
5. Integrated design, compact structure, smaller and lighter than
kind products by 100 to 150 kilograms.
6. Simple structure and easy to maintenance, all the repair point
are on the same side with the engines; Series 2012 adopted non
cylinder liner and none valve guide structure.

Engine brand	Ricardo-Kofo
Engine model	R6105AZLDS
Aspiration	Turbo & inter cooler
Type of combustion chamber	Direct injection
Number of cylinders	6
Bore/Stroke(mm)	105 x 130
Displacement(L)	6.75
Compression ratio	17:1
12hrs rated output(KW)	110
Standby output(KW)	121
Rated speed(r/min)	1500
No load Speed(r/min)	≤1575
Idling speed(r/min)	≤650
Pistion speed(r/min)	13
Fuel consumption rate(g/kw.h)	218
Rated output fuel consumption (L/h)	28.55
Crankshaft rotating direction	Counter clockwise(face to output end)
Cooling method	Forced water cooling
Lubricating method	Pressure lubrication
Starting method	Electric motor start
Net mass(kg)	630
Firing order	1-5-3-6-2-4
Exhaust temperature ℃	≤600
Intake pipe diameter mm	76
Oil sump capacity L	17
Max oil temperature ℃	105
Oil consumption rate(g/kw.h)	≤1.63
Coolant capaicty L	23

Alternator manufacturer	Xiamen Ai Power Technology Co., Ltd.
Alternator brand	AI POWER
Alternator model	AI274CC
Control system	SELF EXCITED
A.V.R.	Included
Voltage regulation	±1.0%
Insulation system	Class H
Protection	IP23
Rated power factor	0.8
Winding pitch	Two thirds
Winding leads	12
Frequency (Hz)	50
Voltage (V)	400
Phase	3
Output ratings (kVA/kW)
----------------Cont.H-40°C	125/100
----------------Standby-27°C	137.5/110
THF	<5%
TIF	<50
Max. overspeed (Rev/Min)	2250
Bearing	Single

Ai Power Company

Company Profile

Xiamen Ai Power Technology Co.,Ltd, which is located in the
beautiful tourism city of Xiamen city, Fujian Province.
Ai Power products adopts internationally and domestically reputed
high-quality engines and alternators for our industrial diesel
generator sets, gas diesel genset, marine generator, movable
generator, lighting towers, generator spare parts and other high
value-added electrical products, like ATS, synchronization system,
transformer, switchgear, etc.

FAQ

1.What's our power capacity range of generator?
Answer: We can offer the range from 10kva~3000kva genset, diesel
generator, gas generator, marine generator.
2. Besides power generator, what's your other product?
Answer: We also provide lighting tower, air compressor, ATS,
synchronization system, switchgear, transformer, engine spareparts.
3. What's kind of generator type you produce?
Answer: open generators, silent power generators, super silent
genset, trailer genset, movable electric generator, reefer
generator.
4.What's your warranty?
Answer: One year or 1000 hours, which one comes first.
5.Can you use our logo?
Answer: Yes, we can use customer's logo instead of ours.
6. Can you accept small order?
Answer: Yes, we can accept trial order.
7.What's your delivery time?
Answer: Our normal delivery time is 2 to 4 weeks. But if your order
is some special engine and alternator, the delivery time will be
longer.
