200kva 160kw Silent Diesel Generator Set Portable Diesel Generator

    Buy cheap 200kva 160kw Silent Diesel Generator Set Portable Diesel Generator from wholesalers

    Buy cheap 200kva 160kw Silent Diesel Generator Set Portable Diesel Generator from wholesalers
    • Buy cheap 200kva 160kw Silent Diesel Generator Set Portable Diesel Generator from wholesalers
    • Buy cheap 200kva 160kw Silent Diesel Generator Set Portable Diesel Generator from wholesalers

    200kva 160kw Silent Diesel Generator Set Portable Diesel Generator

    Ask Lasest Price
    Brand Name : Ai Power Generator Set
    Model Number : A160
    Certification : CE, ISO, SONCAP
    Price : USD 10000 Per Unit Negotiable
    Payment Terms : L/C, T/T, MoneyGram,Western Union
    Supply Ability : 300 Sets Per Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    200kva 160kw Silent Diesel Generator Set Portable Diesel Generator

    Product Description

    China Good Brand Diesel Generator 200kva 160kw Silent Diesel Generator Set For Sale

    Frequency
    50HZ
    60HZ
    Voltage
    220/380V, 230/400V, 240/415V
    127/220V, 230/380V, 254/440V, 277/480V
    Power range
    20-400KVA prime
    20-400KVA Prime
    Engine
    Ricardo Kofo N4100, R6105, R6110, 6126, WT13 sereis
    Alternator
    Copy stamford, bruless, copper
    Controller
    Smartgen HGM6110, HGM6120
    Genset type
    open generator, silent genset, container power generator, mobile diesel generator
    Option
    ATS, synchronization system
    GENERAL ENGINE DATA
    Engine manufacture
    Shanghai Diesel Engine Co., Ltd. (SDEC)
    Engine brand
    SDEC
    Engine model
    6HTAA6.5-G23
    Engine speed (rpm)
    1500
    Engine output(kWm)
    Standby Power
    204
    Prime Power
    185
    Engine Type
    4-Cycle, In-line, 6-Cylinder Diesel, water cooled, Turbo charged
    Bore x Stroke (mm)
    114*144
    Displacment (litre)
    8.82L
    Compression Ratio
    18:1
    FUEL SYSTEM
    Injection pump
    Longkou in-line “P” type
    Governor
    RSV
    Fuel Consumption (litre/hour)
    25% load
    13.4
    50% load
    22.8
    75% load
    32.8
    100% load
    44.1
    MECHANISM
    Type
    Over head valve
    Number of valve
    Intake 2, exhaust 2 per cylinder
    Valve lashes at cold
    Intake 0.25mm, Exhaust 0.50mm
    ENGINEERING DATA
    Heat rejection to coolant
    18.6kcal/sec
    Heat rejection to intercooler
    11.6m3/min
    Exhaust system
    6 kPa max.
    Exhaust gas temp.
    600
    Alternator manufacturer
    Xiamen Ai Power Technology Co., Ltd.
    Alternator brand
    AI POWER
    Alternator model
    AI274G
    Control system
    SELF EXCITED
    A.V.R.
    Included
    Voltage regulation
    ±1.0%
    Insulation system
    Class H
    Protection
    IP23
    Rated power factor
    0.8
    Winding pitch
    Two thirds
    Winding leads
    12
    Frequency (Hz)
    50
    Voltage (V)
    400
    Phase
    3
    Output ratings (kVA/kW)
    ----------------Cont.H-40°C
    200/160
    ----------------Standby-27°C
    220/176
    THF
    <5%
    TIF
    <50
    Max. overspeed (Rev/Min)
    2250
    Bearing
    Single

    Supply Scope

    • Engine include air, fuel, oil filters, starting motor and charge alternator etc.
    • Brushless AC alternator, single bearing, flange connection, with AVR
    • Radiator with engine driven fan mounted on skid
    • Channel steel base frame, <550KW base 8hrs mounted fuel tank as standard
    • Anti-vibration pads between engine/alternator and base frame
    • Circuit breaker 3P as standard, 4P optional
    • Auto control panel
    • Start battery with connecting cable and floating battery charger
    • Flexbile pipe, exhaust elbow, industrial silencer etc.
    • Standard tools kit
    • Electric drawing, test report ,operation & maintaince manual of generator etc.
    •Optional soundproof/Container canopy, ATS cabinet, remote control panel, synchronization panel, movable trailers, heat exchanger, remote horizontal water tank system, external fuel tank, etc

    Products Details

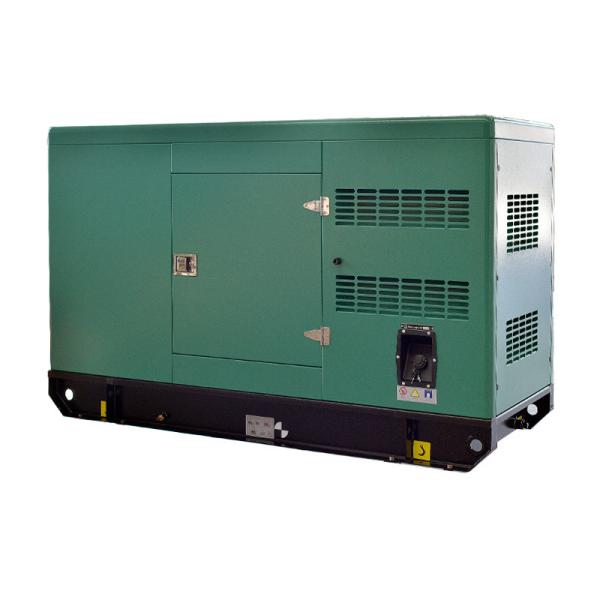

    200kva 160kw Silent Diesel Generator Set Portable Diesel Generator200kva 160kw Silent Diesel Generator Set Portable Diesel Generator
    200kva 160kw Silent Diesel Generator Set Portable Diesel Generator200kva 160kw Silent Diesel Generator Set Portable Diesel Generator
    Our factory

    AI POWER is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
    Besides generators, we also product the refere product incldue lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switchgear.

    200kva 160kw Silent Diesel Generator Set Portable Diesel Generator
