CE 1600kw Japan Original Mitsubishi Diesel Generator 2000kva With Engine S16R-PTAA2-C

Ask Lasest Price
Brand Name :	Ai Power
Model Number :	A2000
Certification :	CE, ISO9001, SONCAP
Price :	USD170000-USD180000
Payment Terms :	L/C, T/T, Western Union,
Supply Ability :	200 units per month
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

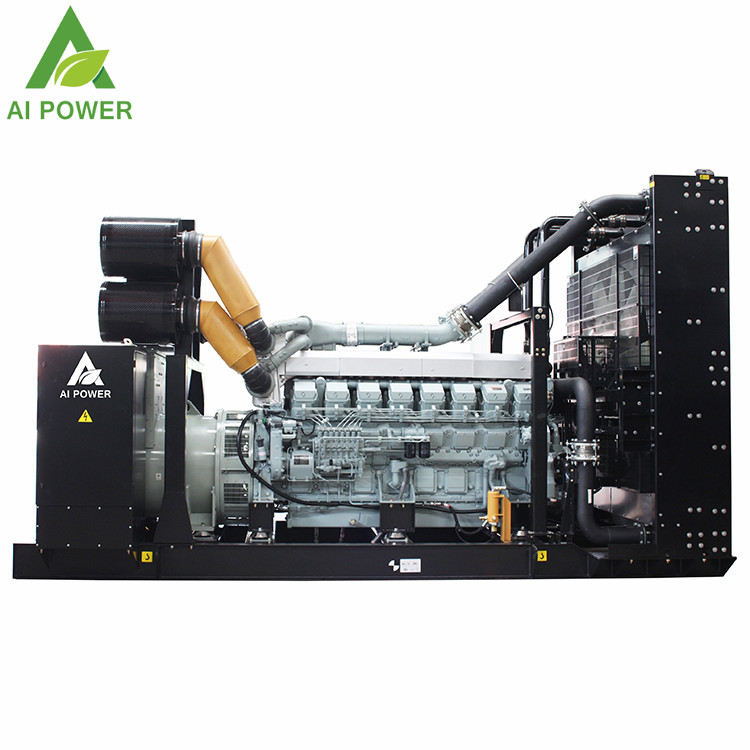

CE 1600kw Japan Original Mitsubishi Diesel Generator 2000kva With Engine S16R-PTAA2-C

Product Description

CE certificate 1600kw generator Japan original Mitsubishi diesel generator 2000kva with engine S16R-PTAA2-C

Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province, It is dedicated to becoming a comprehensive company for intelligent power and green energy supply. Our company aim to create a better life for the world by supplying better power solutions. Continually improving products’ quality, friendly-use and durability is our long-term mission. We will make all the efforts to walk a long way to reach customers’ greatest satisfaction.

Product Detailes

Engine
GENERAL ENGINE DATA
Engine manufacture	Shanghai MHI Engine Co.,Ltd
Engine brand	SME (Licensed by Mitsubishi)
Engine model	S16R-PTAA2-C
Engine speed (rpm)	1500
Standby power without fan(mKW)	1939
Prime power without fan(mKW)	1728
Type	4-Cycle, Water cooled
Aspiration	Turbo-charged, Air to Air cooler
Cylinder	16 cyliner 60°V
Bore * Stroke (mm)	170*180
Displacement (Liter)	65.37
Compression Ratio	14.0:1
AIR INLET SYSTEM
Maximum Intake Air Restriction (mm H2O)
With Clean Filter Element	400
With Dirty Filter Element	635
Intake Air flow(standby/prime power) (m3/min)	171/152
EXHAUST SYSTEM
Maximum Allowable Back Pressure(mm H2O)	600
Exhaust Gas flow(standby/prime power) (m3/min)	453/403
LUBRICATION SYSTEM
Oil Pressure (Mpa)
at Idle	0.2-0.3
at Rate Speed	0.49-0.64
Max. oil temperature (°C)	110
Total system capacity(Includes oil filter) (liter)	230
COOLING SYSTEM
Coolant Capactiy (Engine only) (liter)	170
Standard Thermostat (modulating)Range (°C)	71-85
Maximum Coolant Temperature at Engine Outlet (°C)	98
FUEL SYSTEM
Fuel Injector	Mitsubishi PS8 × 2
Fuel Consumption (g/kWh)
standby power	217
Prime power	217
STARTING SYSTEM
Battery Charging Alternator (V-Ah)	24-30
Starting Motor Capacity (V-kW)	24-7.5x2
Recommended Minimum Battery Capacity (Ah)
At 5°C and above	300
Below 5°C through -5°C	600

ALTERNATOR
Alternator manufacturer	Leroy-somer Electro-technique (Fuzhou) Company Ltd.
Alternator brand	Leroysomer
Alternator model	LSA52.3S6
Control system	AREP
A.V.R.	Included
Voltage regulation	±1.0%
Insulation system	Class H
Protection	IP23
Rated power factor	0.8
Winding pitch	Two thirds
Winding leads	6
Frequency (Hz)	50
Voltage (V)	400
Phase	3
Output ratings (kVA/kW)
----------------Cont.H-40°C	2000/1600
----------------Standby-27°C	2255/1804
THF	<2%
TIF	<50
Max. overspeed (Rev/Min)	2250
Bearing	Single

CE 1600kw Japan Original Mitsubishi Diesel Generator 2000kva With Engine S16R-PTAA2-C

AI Company

Advanced&Intelligent.

Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province, It is dedicated to becoming a comprehensive company for intelligent power and green energy supply.Our company aim to create a better life for the world by supplying better power solutions. Continually improving products’ quality, friendly-use and durability is our long-term mission. We will make all the efforts to walk a long way to reach customers’ greatest satisfaction.

CE 1600kw Japan Original Mitsubishi Diesel Generator 2000kva With Engine S16R-PTAA2-C

Packing & Delivery

CE 1600kw Japan Original Mitsubishi Diesel Generator 2000kva With Engine S16R-PTAA2-C

FAQ

1.What's our power capacity range of generator?
 Answer: We can offer the range from 10kva~3000kva genset, diesel generator, gas generator, marine generator.

2. Besides power generator, what's your other product?
 Answer: We also provide lighting tower, air compressor, ATS, synchronization system, switchgear, transformer, engine spareparts.

3. What's kind of generator type you produce?
 Answer: open generators, silent power generators, super silent genset, trailer genset, movable electric generator, reefer generator.

 4.What's your warranty?
 Answer: One year or 1000 hours, which one comes first.

 5.Can you use our logo?
 Answer: Yes, we can use customer's logo instead of ours.

 6. Can you accept small order?
 Answer: Yes, we can accept trial order.

 7. What’s your delivery time?
 Answer: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
